Description

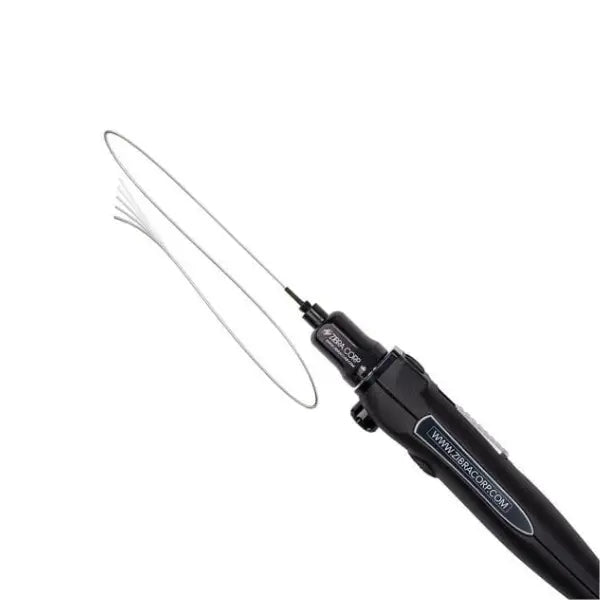

Zibra Milliscope HDF Flexible Borescope System
The Zibra Milliscope HDF Flexible Borescope System combines a flexible borescope, handheld zoom controller, and benchtop base unit for small-diameter inspections. It provides 1080p HD video output to an external HDMI monitor and captures images and video on removable memory drives.
Key Features

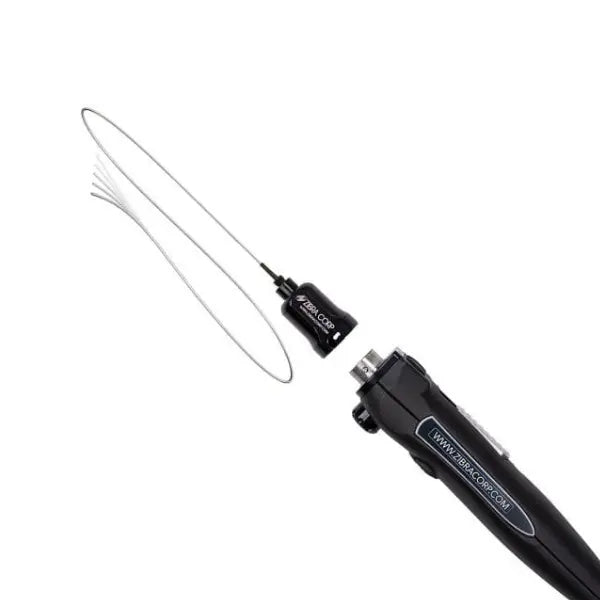

- Quick-change, replaceable flexible borescope tips
- Probe options in different diameters, lengths, and directions of view
- 1080p HD digital video output via HDMI
- 3x optical zoom
- Adjustable white LED illumination and 9-step exposure
- Push-button image and video capture on removable drives
- USB keyboard inputs for text generation
- Simple push-button menu interface

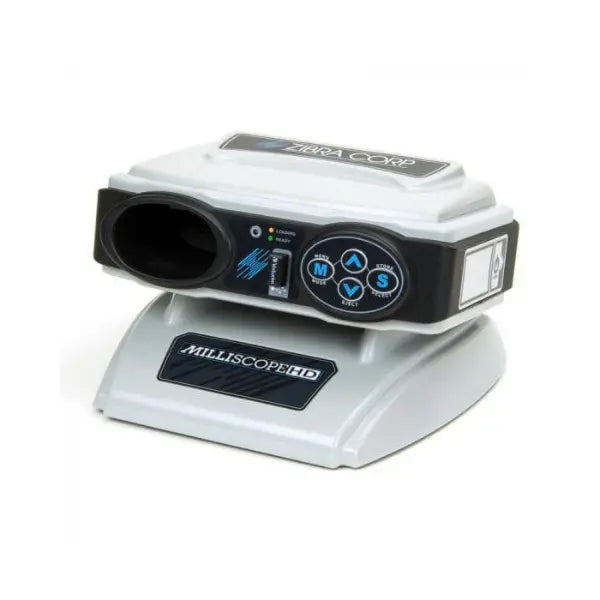

Benchtop Processing and HDMI Viewing
The Milliscope HD Base Unit provides video processing, software, and HDMI output to an external HDMI monitor. It is compatible with the Milliscope HD Zoom Borescope Handle and all Milliscope HDV Videoprobe styles.

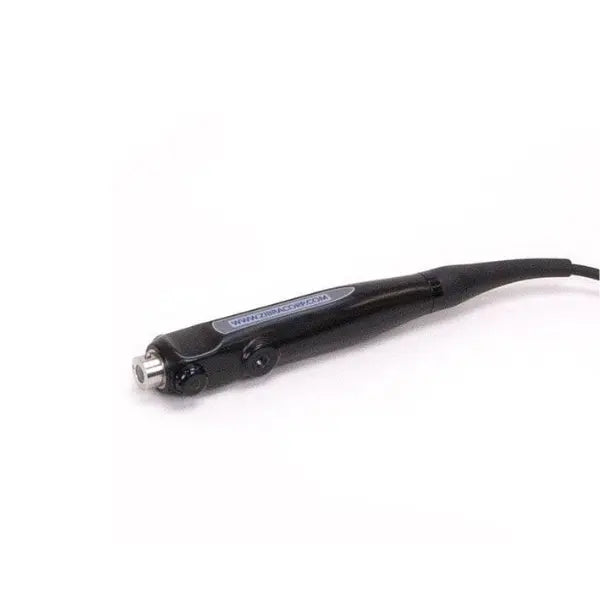

Handheld Zoom and Probe Changes

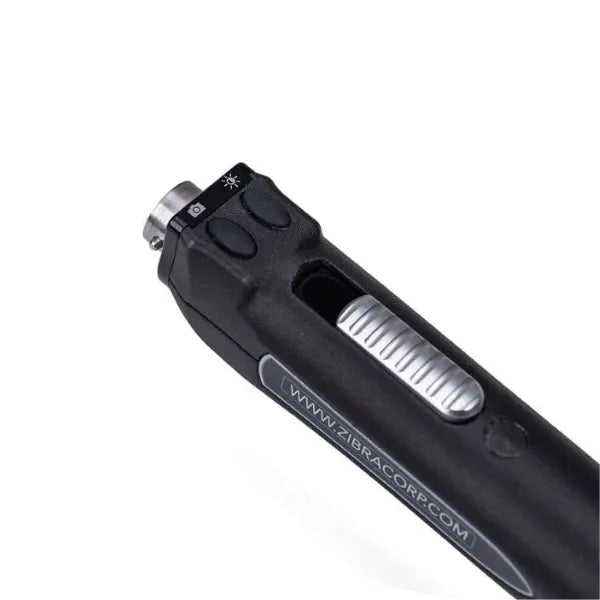

The Milliscope HD Zoom Borescope Handle accepts all Zibra Milliscope HDF semi-rigid and flexible probes. Easily changeable tips provide options for different precision part inspections, while integrated optical zoom, adjustable illumination, and recording buttons keep inspection controls at hand.

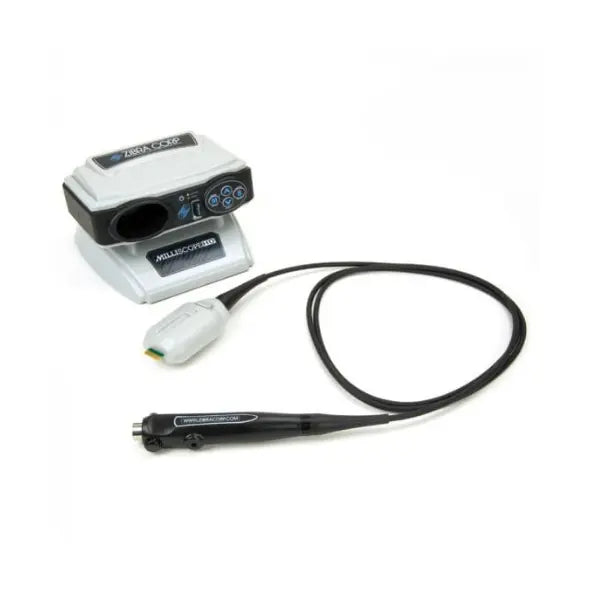

Includes
- Zibra Milliscope HD Base Unit
- Zibra Milliscope HD Zoom Borescope Handle

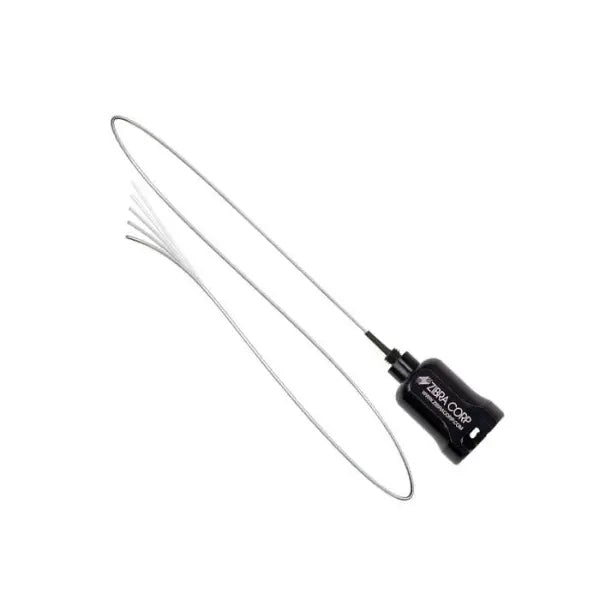

- Zibra Milliscope HDF Flexible Borescope
Backed by Alabama Probe’s regional sales, training, and post-purchase support for teams across the Southeast.
Specifications
| Optical Zoom | 3x | |
|---|---|---|
| Illumination | Adjustable white LED | |
| Exposure | Adjustable 9-step exposure | |
| Recording | Push-button image & video capture | |
| Compatible Scope Diameters | 0.35 mm - 3.1 mm ∅ (call for diameters not listed) | |
| Compatible Scope Lengths | 61 mm - 10,000 mm+ (call for lengths not listed) |
Downloads
FAQ
Which components are included?
The system includes the Zibra Milliscope HD Base Unit, Milliscope HD Zoom Borescope Handle, and Milliscope HDF Flexible Borescope.
How does the system display inspection images?
The base unit provides 1080p HD digital video output through HDMI to an external HDMI monitor.
Can images and video be saved?
Yes. Push-button controls support image and video capture on removable memory drives.
