Description

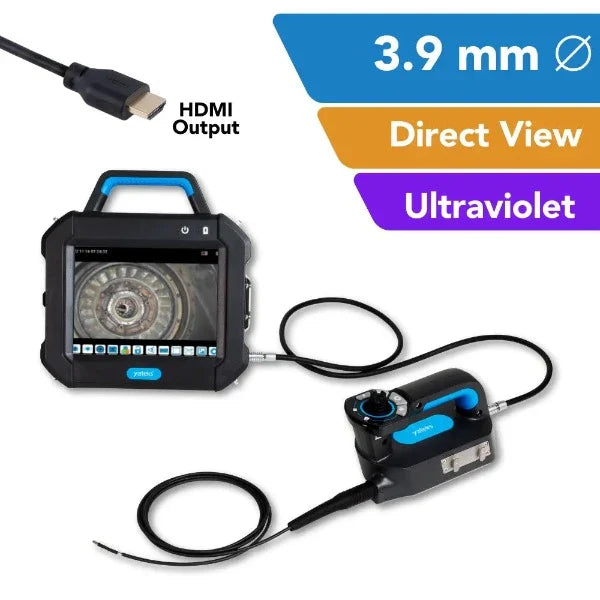

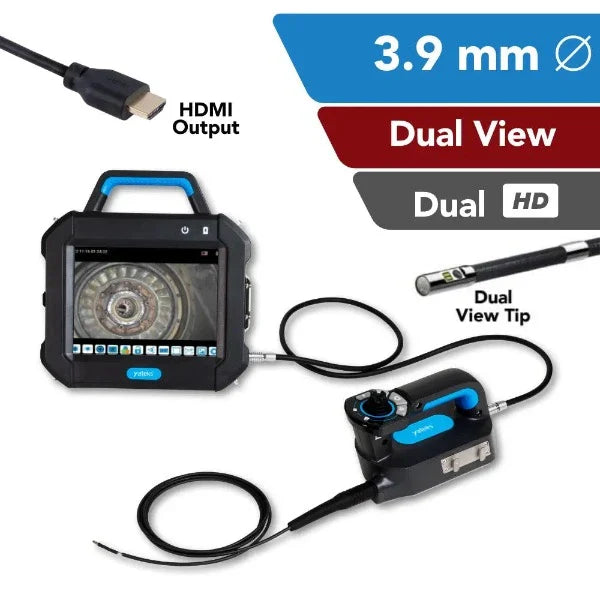

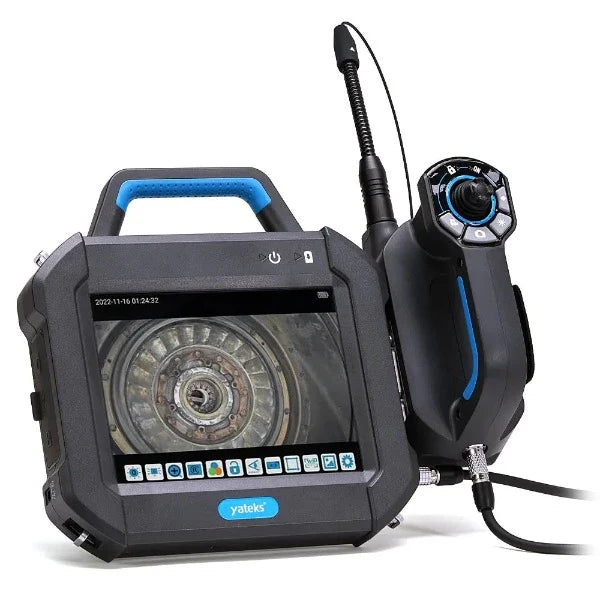

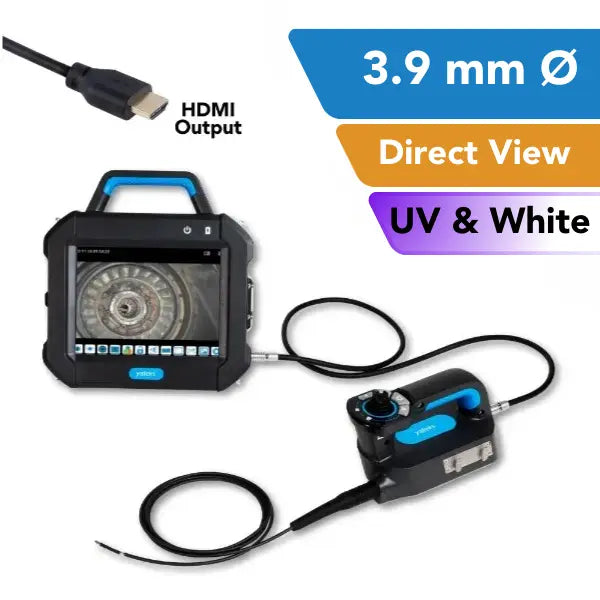

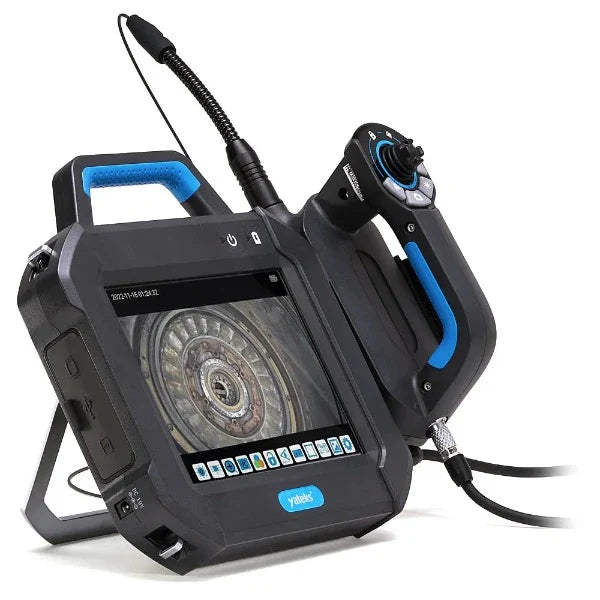

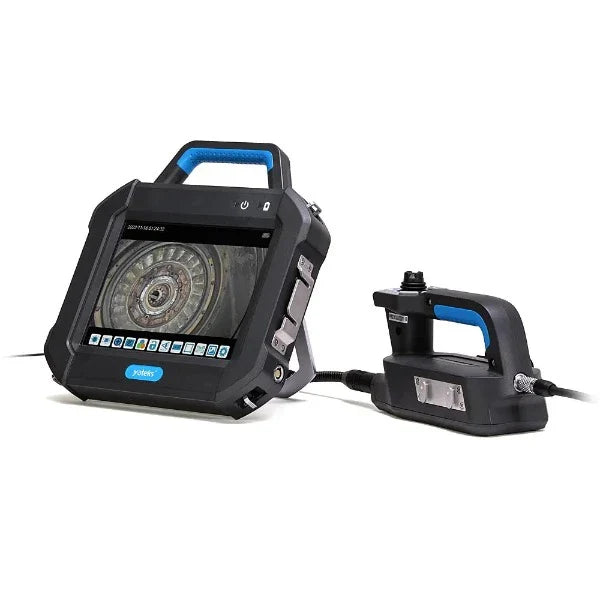

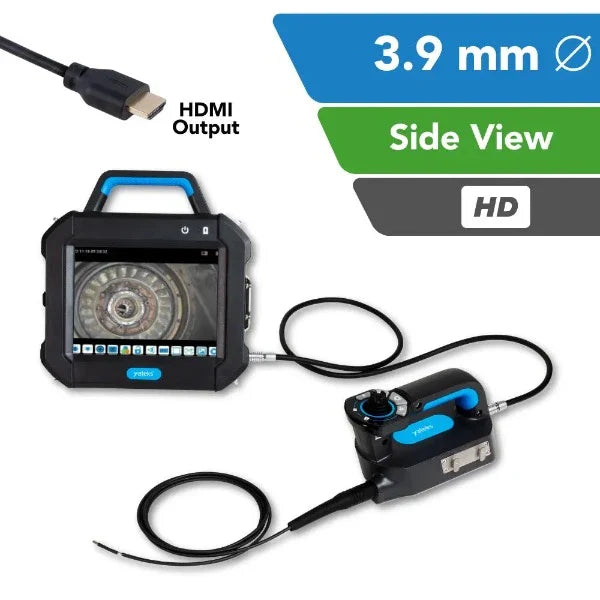

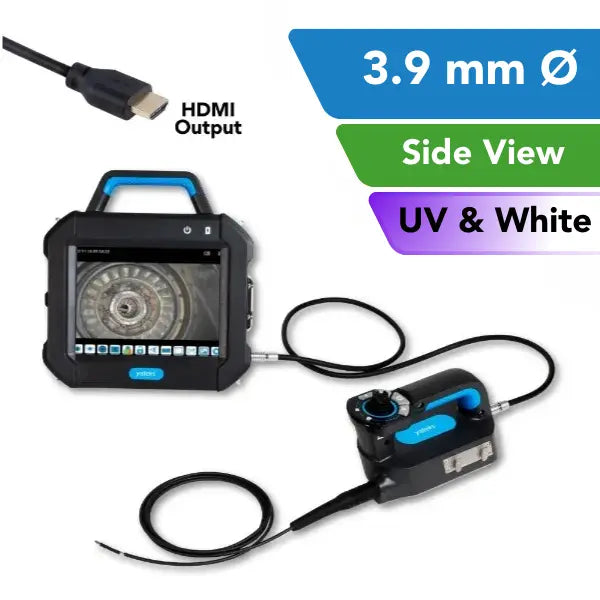

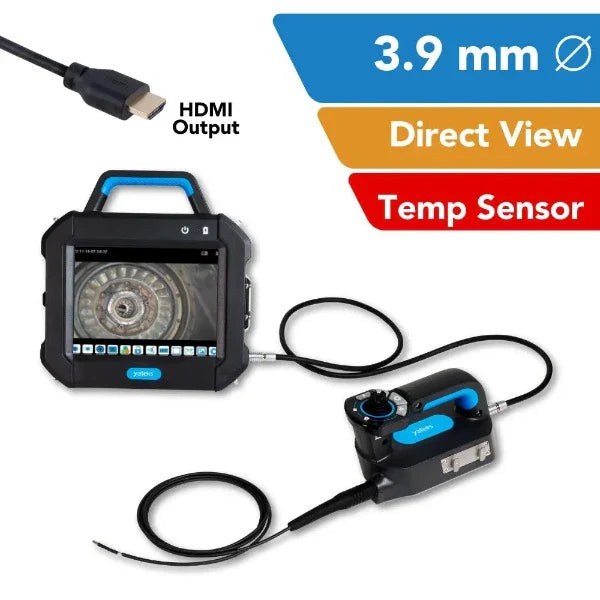

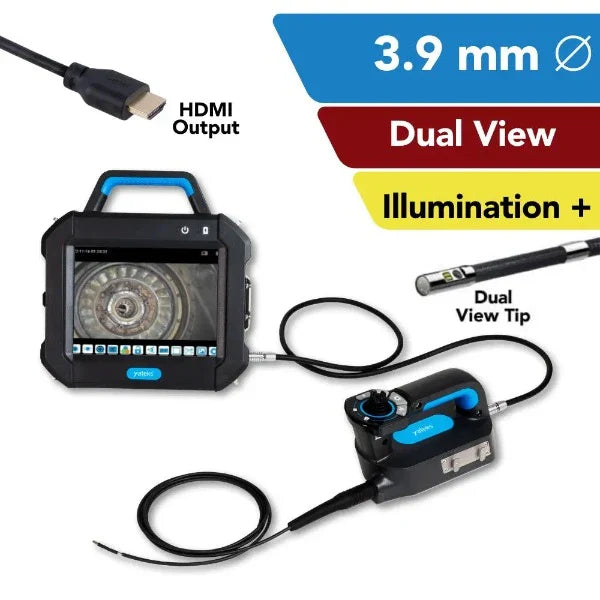

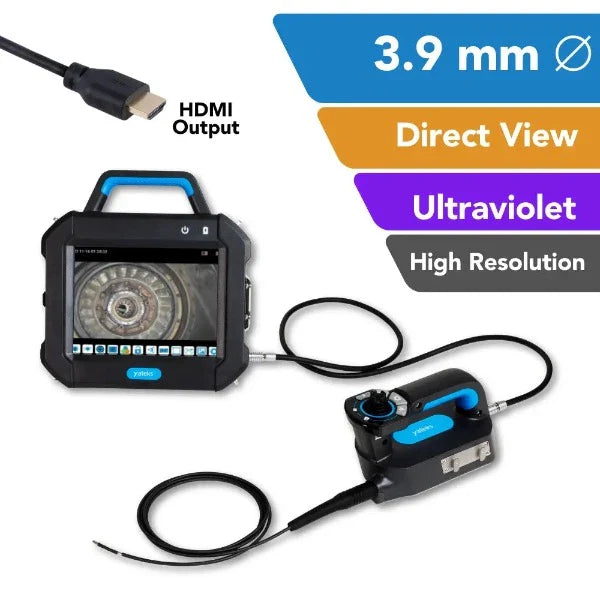

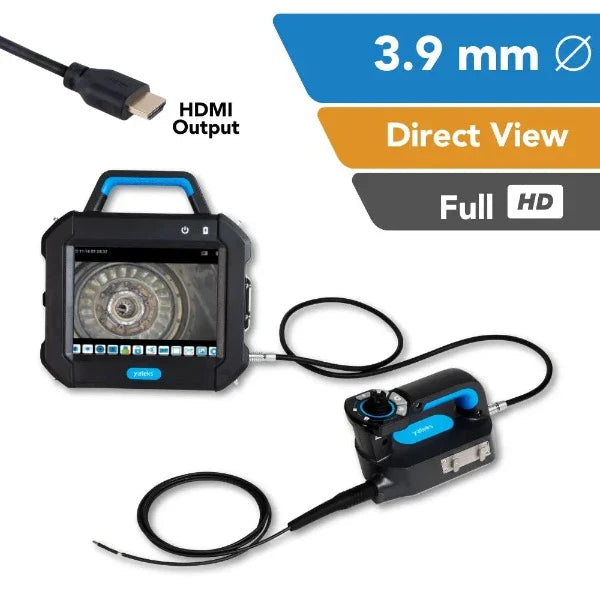

Yateks P+ Series 3.9 mm Industrial Videoscope
The Yateks P+ Series combines interchangeable probes with an 8-inch HD touchscreen for remote visual inspection in benchtop and field settings. This listing covers 3.9 mm probe configurations, with direct, side, or dual viewing and white LED and/or UV illumination by selection.
Designed for multi-part inspections in aerospace, aviation, power generation, and other RVI applications, the platform supports image capture, video recording, and playback. Two rechargeable lithium-ion battery sets provide up to approximately 3 hours of operation per set.
Key Features and P+ Updates
- 3.9 ± 0.1 mm probe diameter
- Direct, side, or dual direction of view by selection
- White LED and/or UV illumination options
- 8″ IPS industrial HD touchscreen with 1024 × 768 resolution
- Capture frame rates up to 30 fps
- Streamlined interface and operation modes
- USB-C for charging and data transfer
- Expanded lens-module support, including interchangeable and 2 MP options

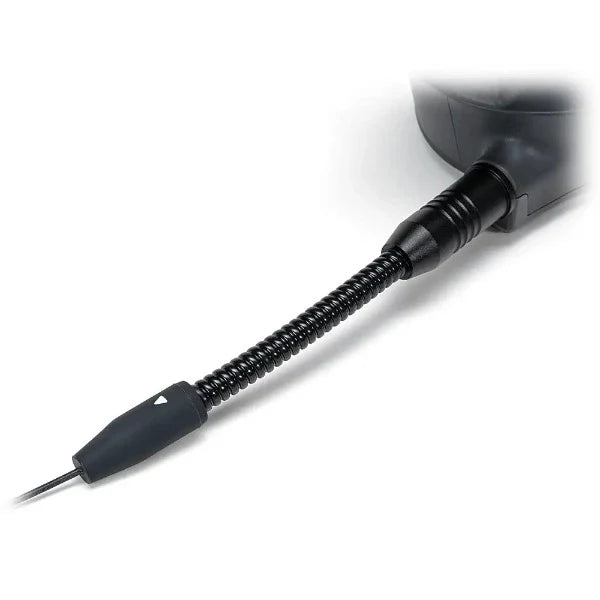

- Added probe strain-relief
- P-Series probe compatibility, except 3D measurement configurations
Probe and Imaging Options
Resolution, direction of view, illumination, depth of field, and field of view depend on the selected probe. Example configurations include 3.9 mm direct- or side-view probes with white or UV illumination and depth-of-field ranges of approximately 3–30 mm or 3–50 mm.
Articulation range varies with probe length. The interchangeable platform allows teams to select probe sizes, lengths, and styles suited to different inspection requirements, excluding 3D measurement configurations.
Inspection Controls and Documentation

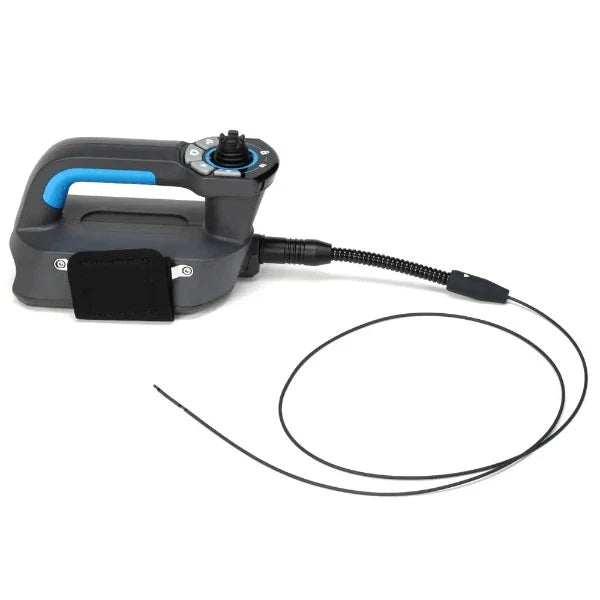

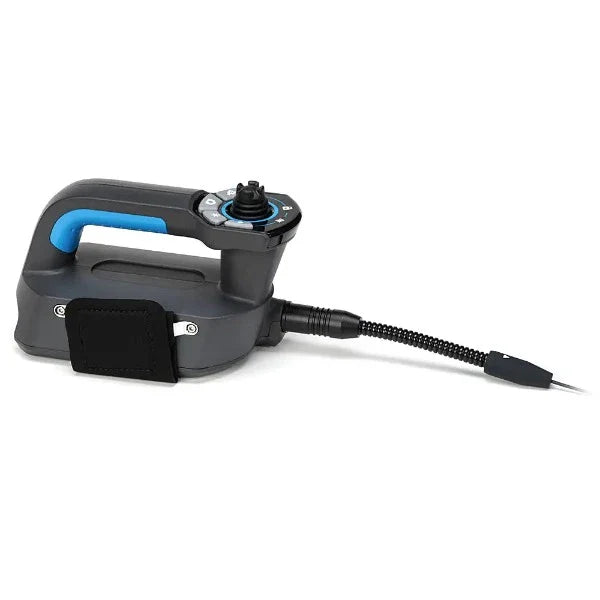

An electric rocker provides articulation control, articulation lock, and automatic set functions. Touchscreen menus support digital zoom, freeze-frame, image flip and mirror, and playback. Automatic or manual white balance and exposure settings provide additional image control, while file naming and folder creation help organize recorded inspections.
Alabama Probe provides regional sales assistance for industrial inspection teams across the Southeast.
Specifications
| Diameter | 3.9 ± 0.1 mm (other diameters by selection) | |
|---|---|---|
| Resolution | By selection (e.g., 400×400, 720×720, 2 MP options) | |
| Direction of View | Direct, Side, or Dual (by selection) | |
| Depth of Field (DOF) | Probe-dependent (e.g., ~3–50 mm) | |
| Field of View (FOV) | Approx. 120° (model-dependent) | |
| Illumination Source / Type | White LED and/or UV (by selection) | |
| Intensity | Up to ~8,000 lux (probe-dependent) | |
| Probe Articulation Range | Varies by probe length (e.g., 150° ± 10° @ 1.0 m; 140° ± 10° @ 1.5 m; 110° ± 10° @ 2.0 m; 100° ± 10° @ 3.0 m) | |
| Dimensions / Weight | 246 × 321 × 123 mm / 2.3 kg | |
| Display Screen | 8″ IPS industrial HD touch LCD, 1024 × 768 (4:3) | |
| Control Lever | Electric rocker, 360° rotation, articulation lock, automatic set | |
| Functions | Image capture, video recording, playback, articulation, illumination control | |
| Storage | 32 GB high-speed SD card (up to 128 GB) | |

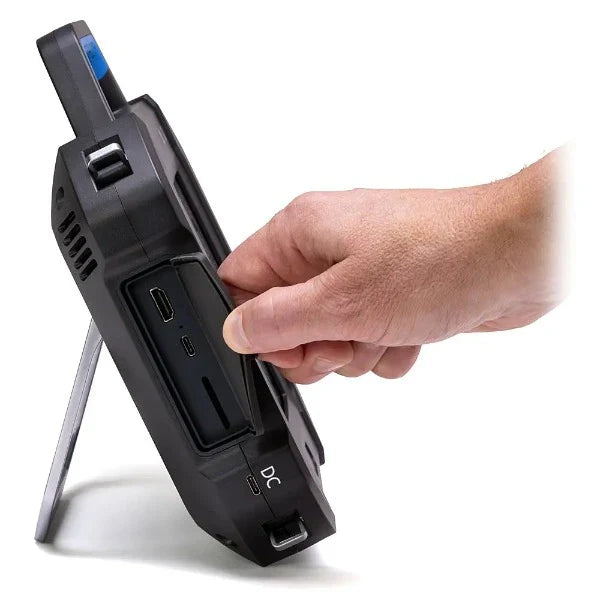

| I/O port | SD card, HDMI (1024 × 768), USB-C for charge/data | |
| Battery | Four rechargeable 18650 lithium-ion batteries | |
| Brightness Control | 10-level adjustment | |

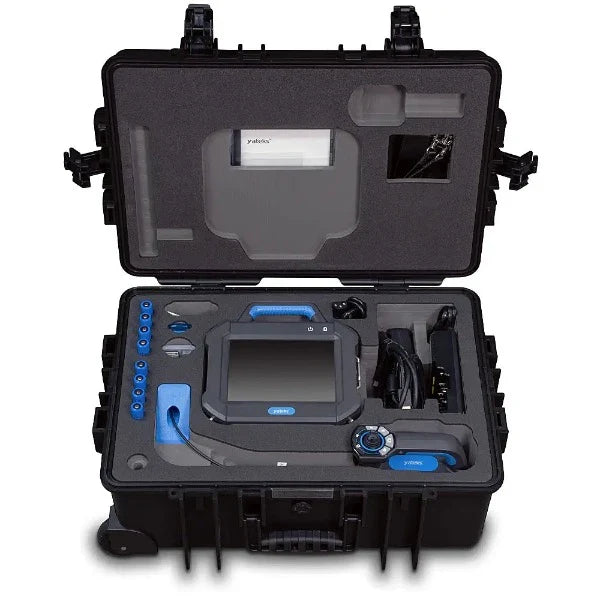

| Full System | Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter | |
| Compatibility | Interchangeable with all P-Series probe sizes, lengths, and styles (except 3D measurement) | |
| Operating System | Real-time multifunctional operating system | |
| User Interface | Touchscreen operation menu | |
| File Management | Auto or manual folder creation, rename files | |
| Image Control | Digital zoom, image/video playback, freeze-frame, flip image, mirror image | |
| Image Format/Video Format | JPEG, AVI | |
| Language | English / Chinese / Korean / German / Russian / Japanese | |
| Color Settings | 4 modes for different applications | |
| White Balance | Automatic / Manual | |
| Exposure Mode | Automatic / Manual | |
| Firmware Update | Via SD card service pack | |
| Monitor Working Temperature | −10 to 50 °C | |
| Probe Working Temperature | −20 to 70 °C | |
| Relative Humidity | Highest 90%, no condensation | |
| IP Rating | Monitor IP54 / Probe IP67 |
Downloads
Yateks P+ Series Product Brochure
FAQ
Which viewing and illumination options are available?
The specifications list direct, side, or dual viewing and white LED and/or UV illumination, depending on the selected probe.
Can the monitor use existing P-Series probes?
Yes. The monitor supports P-Series probe sizes, lengths, and styles, except 3D measurement configurations.
How many batteries are supplied?
The full system includes eight rechargeable batteries in two sets. The operating battery specification lists four rechargeable 18650 lithium-ion batteries, with up to approximately 3 hours of operation per set.
What recording and storage options are available?
The system supports JPEG images and AVI video. A 32 GB high-speed SD card is listed, with storage support up to 128 GB.
