Description

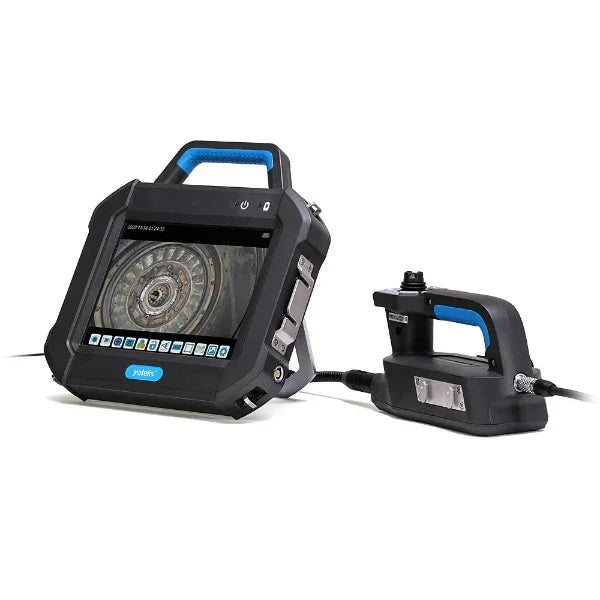

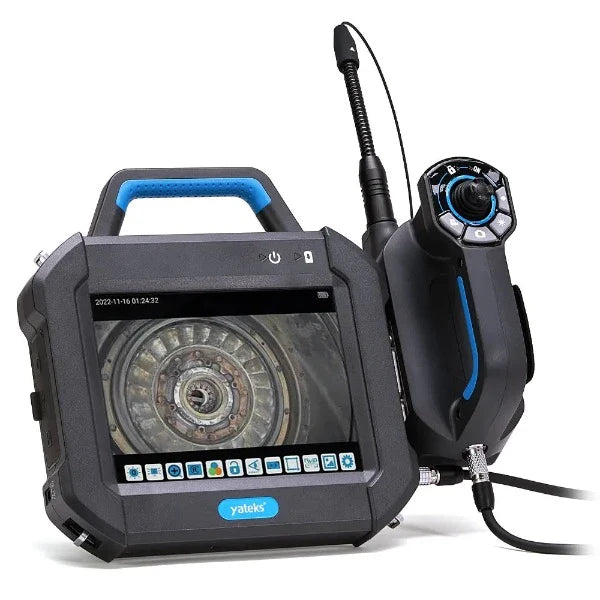

Yateks P+ Series Industrial Videoscope
The Yateks P+ Series provides a modular platform for remote visual inspection in benchtop and field settings. Interchangeable probes offer different diameters, lengths, directions of view, resolutions, and white or UV illumination options to match the inspection task.

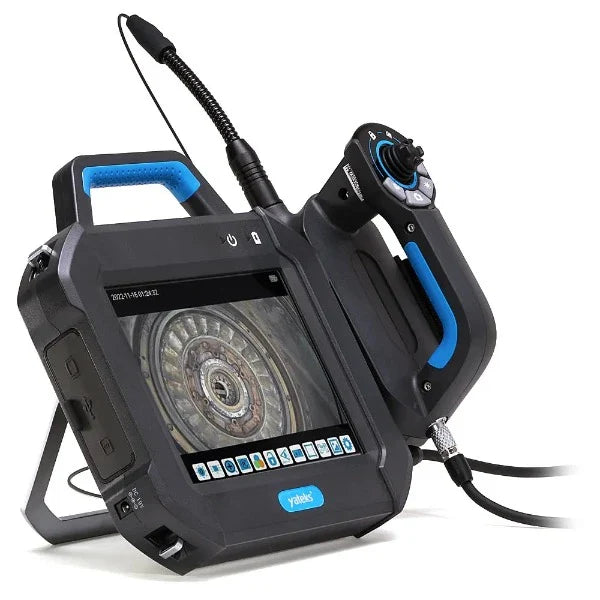

An 8-inch HD touchscreen, electric articulation controls, and image and video recording support multi-part inspections in aerospace, aviation, power generation, and other RVI applications. Two rechargeable lithium-ion battery sets provide up to approximately 3 hours of operation per set.
Key Features and P+ Updates
- 8″ IPS industrial HD touchscreen with 1024 × 768 resolution
- Interchangeable P-Series probes, except 3D measurement configurations
- Capture frame rates up to 30 fps
- Streamlined interface and operation modes
- USB-C for charging and data transfer
- Expanded lens-module support, including interchangeable and 2 MP options

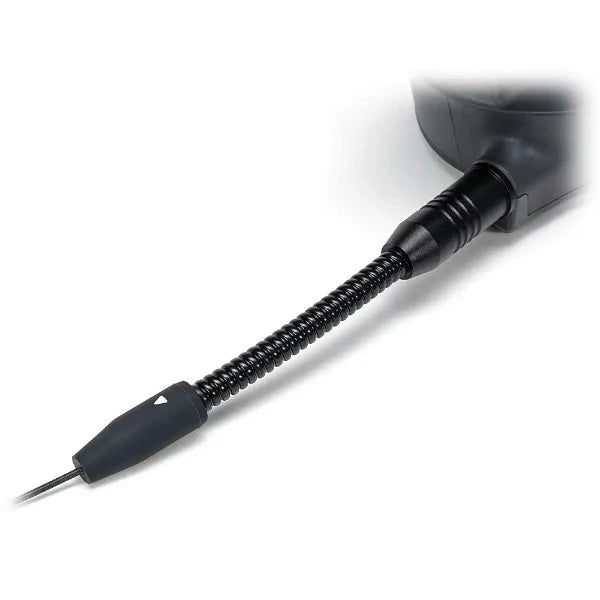

- Added probe strain-relief
- Image capture, video recording, playback, and illumination control
Probe and Imaging Options

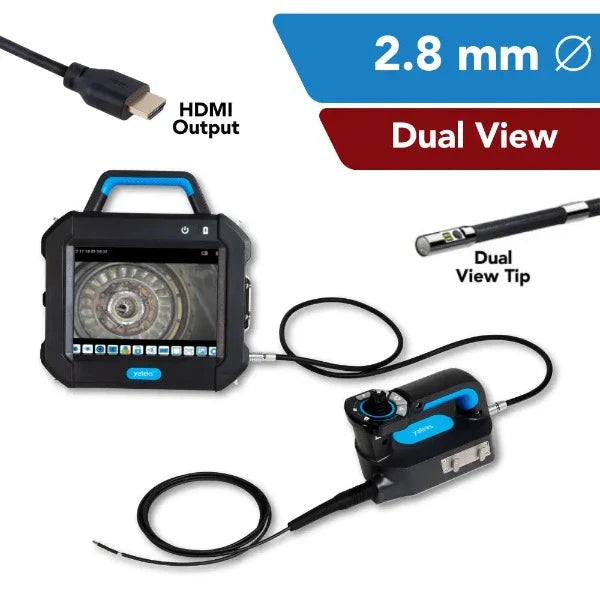

Probe diameters start at 2.8 mm, with direct, side, or dual viewing options. White LED and/or UV illumination, sensor resolution, and depth of field depend on the selected configuration.

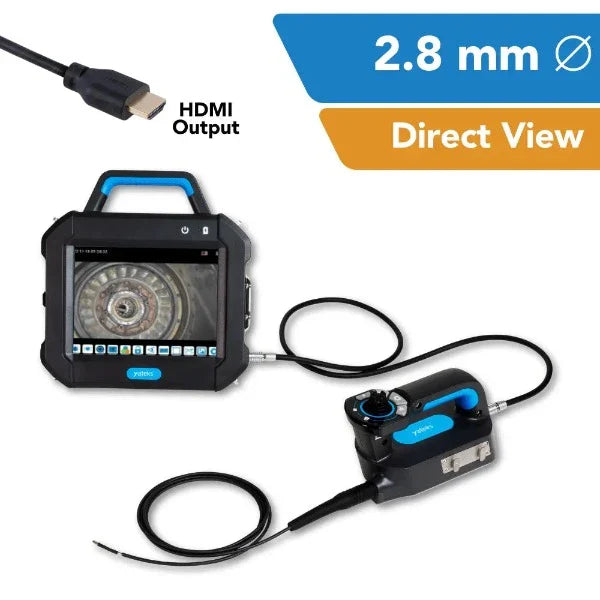

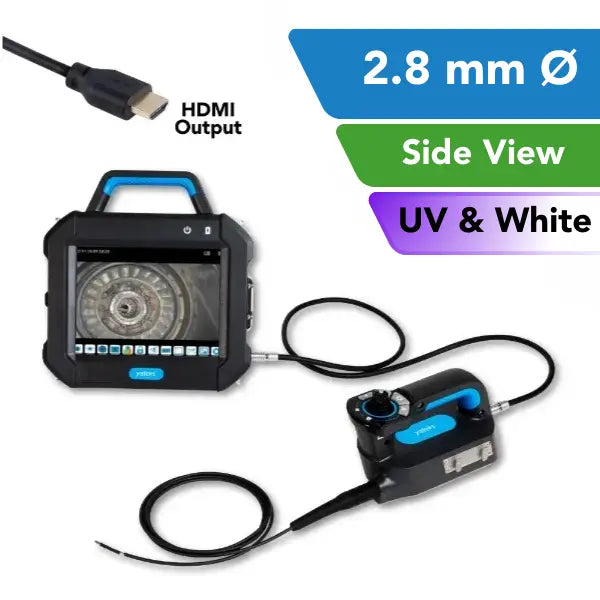

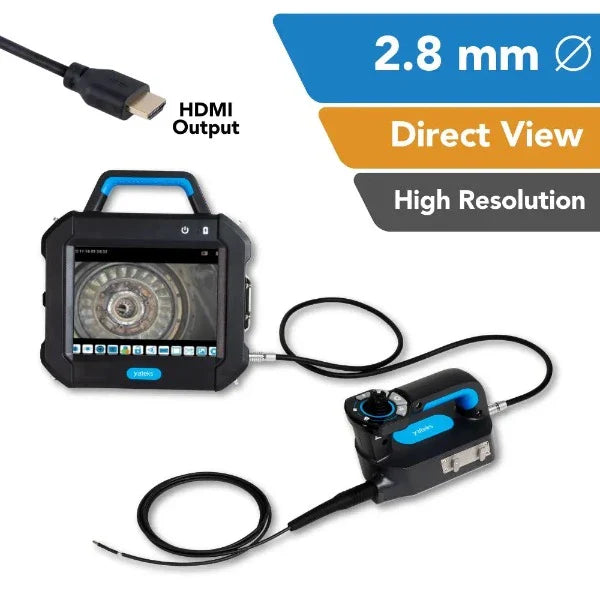

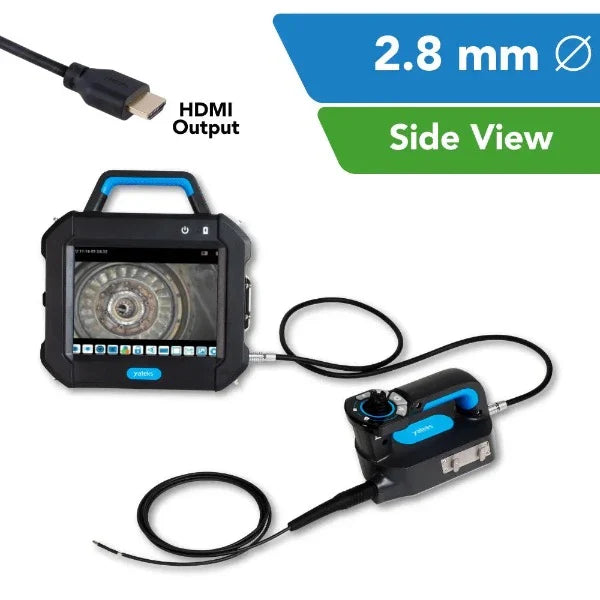

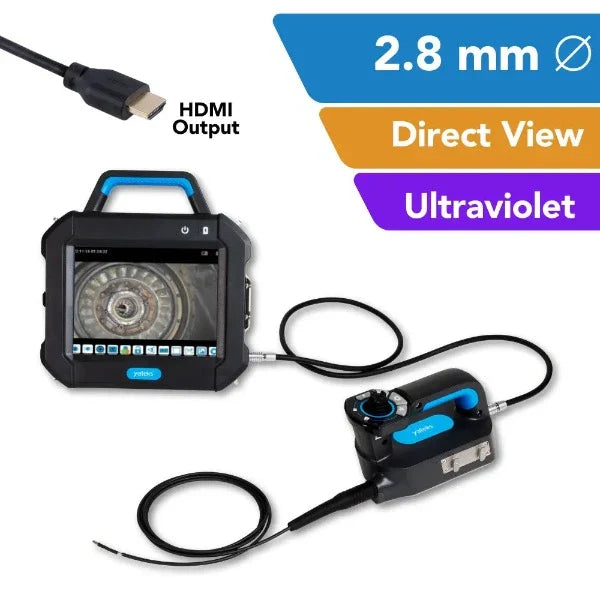

Example configurations include 2.8 mm direct- or side-view probes with white or UV illumination and depth-of-field ranges of approximately 3–30 mm or 3–50 mm. Articulation range also varies with probe length.
Inspection Controls and Documentation

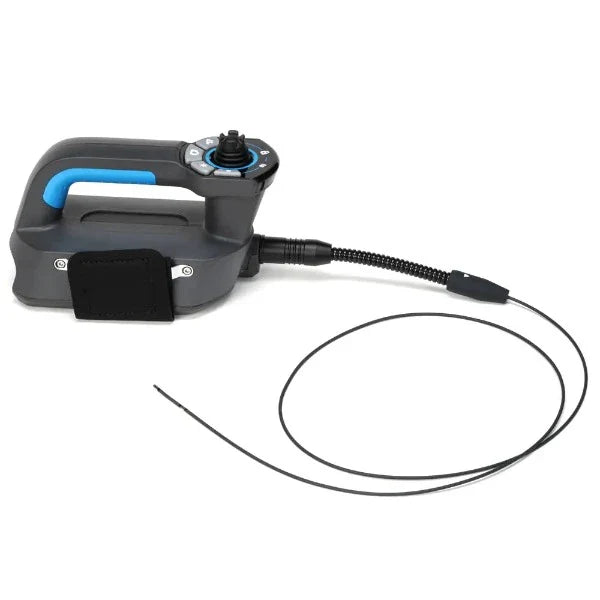

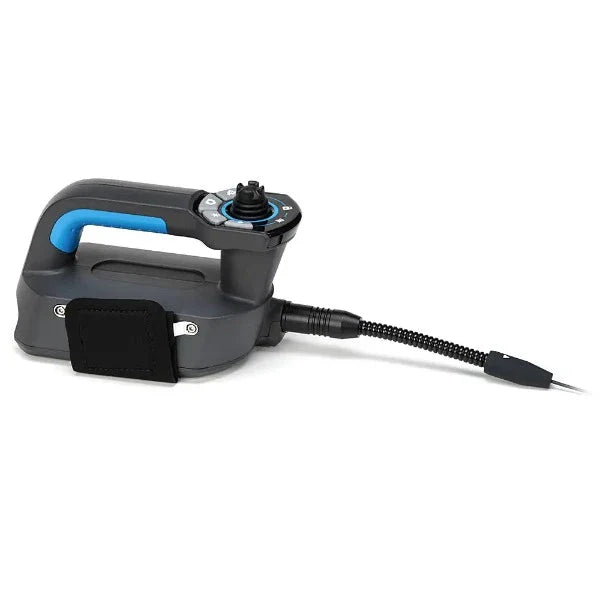

The electric rocker provides articulation control, articulation lock, and automatic set functions. Touchscreen menus support digital zoom, freeze-frame, image flip and mirror, playback, and file management. Automatic or manual white balance and exposure settings provide additional image control.
Alabama Probe provides regional sales assistance for industrial inspection teams across the Southeast.
Specifications
| Diameter | 2.8 ± 0.1 mm (other diameters by selection) | |
|---|---|---|
| Resolution | By selection (e.g., 400×400, 720×720, 2 MP options) | |
| Direction of View | Direct, Side, or Dual (by selection) | |
| Depth of Field (DOF) | Probe-dependent (e.g., ~3–50 mm) | |
| Field of View (FOV) | Approx. 120° (model-dependent) | |
| Illumination Source / Type | White LED and/or UV (by selection) | |
| Intensity | Up to ~8,000 lux (probe-dependent) | |
| Probe Articulation Range | Varies by probe length (e.g., 150° ± 10° @ 1.0 m; 140° ± 10° @ 1.5 m; 110° ± 10° @ 2.0 m; 100° ± 10° @ 3.0 m) | |
| Dimensions / Weight | 246 × 321 × 123 mm / 2.3 kg | |
| Display Screen | 8″ IPS industrial HD touch LCD, 1024 × 768 (4:3) | |
| Control Lever | Electric rocker, 360° rotation, articulation lock, automatic set | |
| Functions | Image capture, video recording, playback, articulation, illumination control | |
| Storage | 32 GB high-speed SD card (up to 128 GB) | |

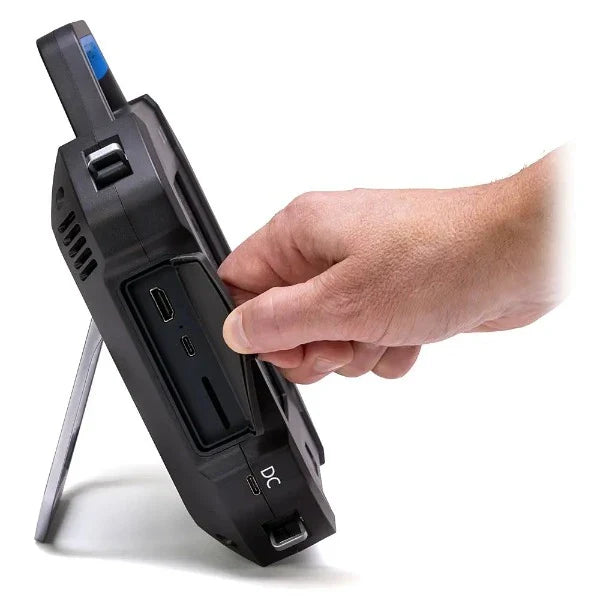

| I/O port | SD card, HDMI (1024 × 768), USB-C for charge/data | |
| Battery | Four rechargeable 18650 lithium-ion batteries | |
| Brightness Control | 10-level adjustment | |

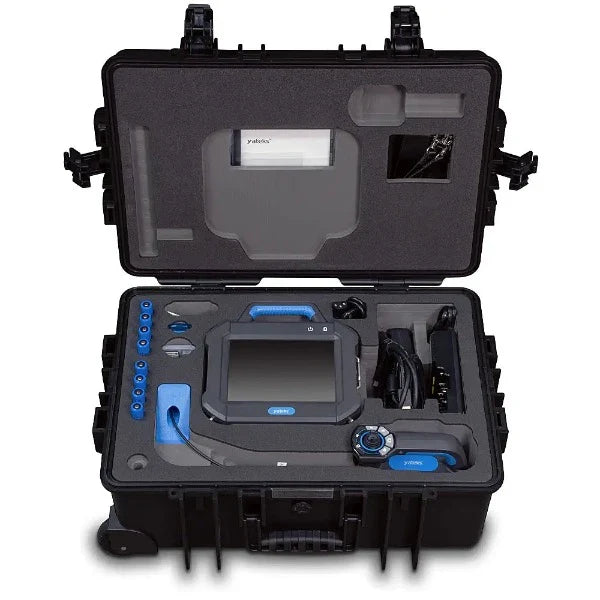

| Full System | Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter | |
| Compatibility | Interchangeable with all P-Series probe sizes, lengths, and styles (except 3D measurement) | |
| Operating System | Real-time multifunctional operating system | |
| User Interface | Touchscreen operation menu | |
| File Management | Auto or manual folder creation, rename files | |
| Image Control | Digital zoom, image/video playback, freeze-frame, flip image, mirror image | |
| Image Format/Video Format | JPEG, AVI | |
| Language | English / Chinese / Korean / German / Russian / Japanese | |
| Color Settings | 4 modes for different applications | |
| White Balance | Automatic / Manual | |
| Exposure Mode | Automatic / Manual | |
| Firmware Update | Via SD card service pack | |
| Monitor Working Temperature | −10 to 50 °C | |
| Probe Working Temperature | −20 to 70 °C | |
| Relative Humidity | Highest 90%, no condensation | |
| IP Rating | Monitor IP54 / Probe IP67 |
Downloads
Yateks P+ Series Product Brochure
FAQ
Can the P+ monitor use existing P-Series probes?
Yes. It is compatible with P-Series probe sizes, lengths, and styles, except 3D measurement configurations.
Which probe specifications vary by configuration?
Diameter, resolution, direction of view, depth of field, field of view, illumination, and illumination intensity depend on the selected probe. Articulation range varies with probe length.
How many batteries are supplied?
The full system includes 8 rechargeable batteries, supplied as two sets. The operating battery specification lists four rechargeable 18650 lithium-ion batteries, with up to approximately 3 hours of operation per set.
What recording and storage options are available?
The system supports JPEG images and AVI video. A 32 GB high-speed SD card is listed, with storage support up to 128 GB.
