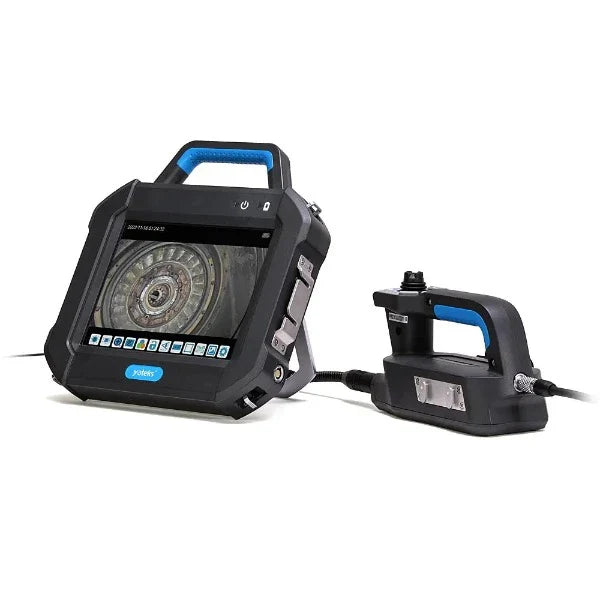

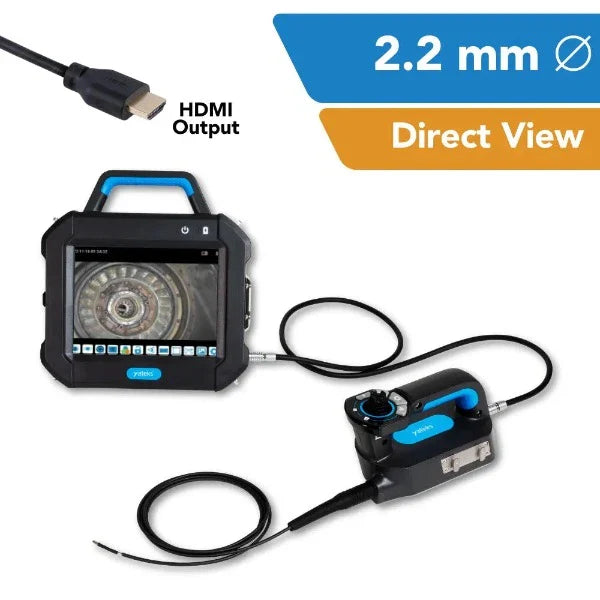

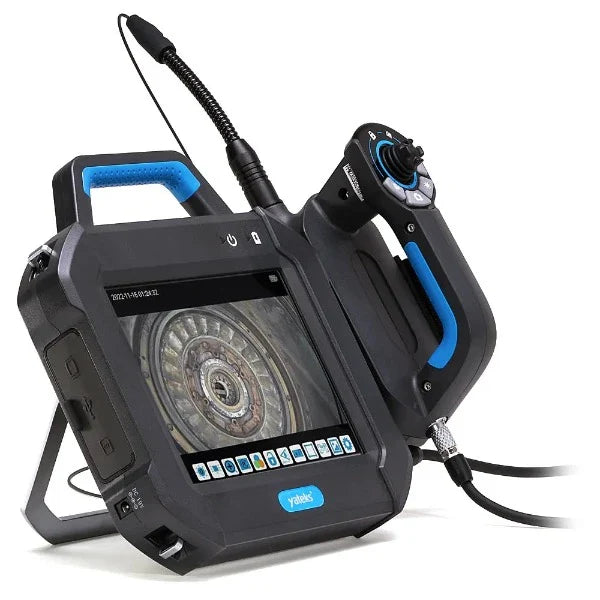

Yateks P+ Series 2.2 mm Industrial Videoscope
The Yateks P+ Series 2.2 mm videoscope supports small-access remote visual inspections with interchangeable probes and an 8-inch HD touchscreen. Direct- or side-view configurations, white LED illumination, and motorized two-way or all-way articulation options allow the system to be configured for the inspection task.
Designed for benchtop and field use, the P+ supports component inspections in aerospace, aviation, power generation, and other RVI applications. The supplied description identifies a 720 x 720 imaging configuration totaling 518,400 pixels; resolution varies by selection.
Key Features and P+ Updates
- 2.2 ± 0.1 mm probe diameter

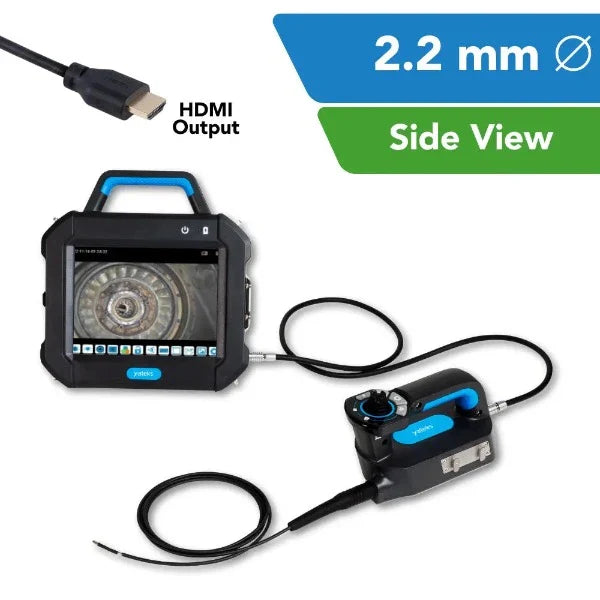

- Direct or side direction of view by selection

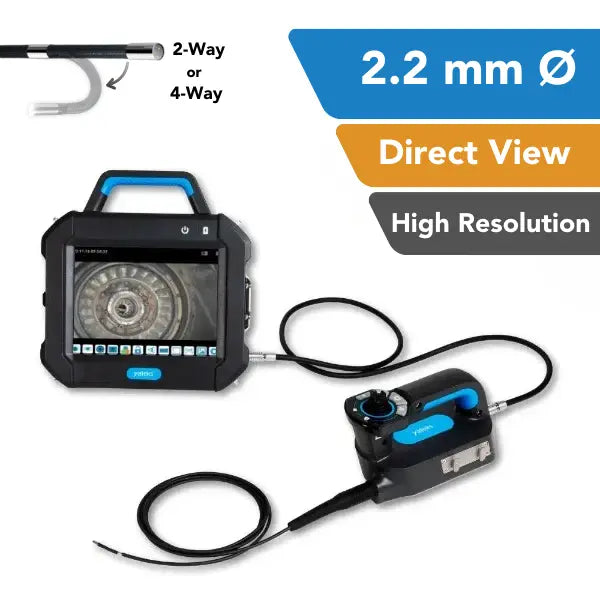

- Motorized two-way or all-way articulation options
- White LED illumination with intensity dependent on the probe

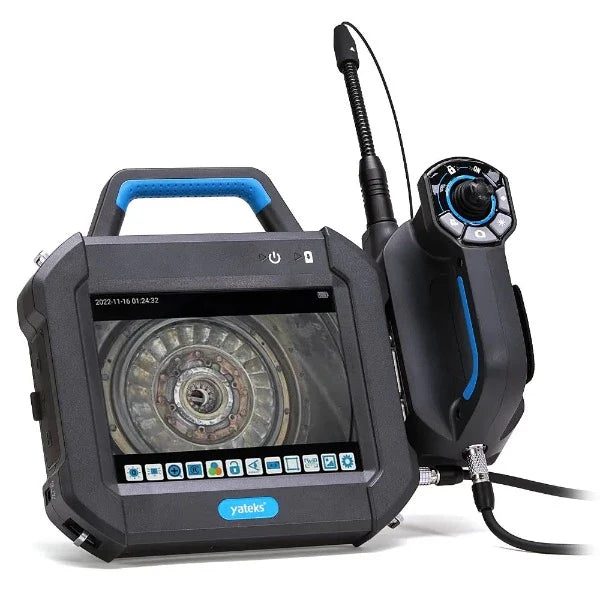

- 8″ IPS industrial HD touchscreen with 1024 × 768 resolution
- Capture frame rates up to 30 fps
- USB-C for charging and data transfer

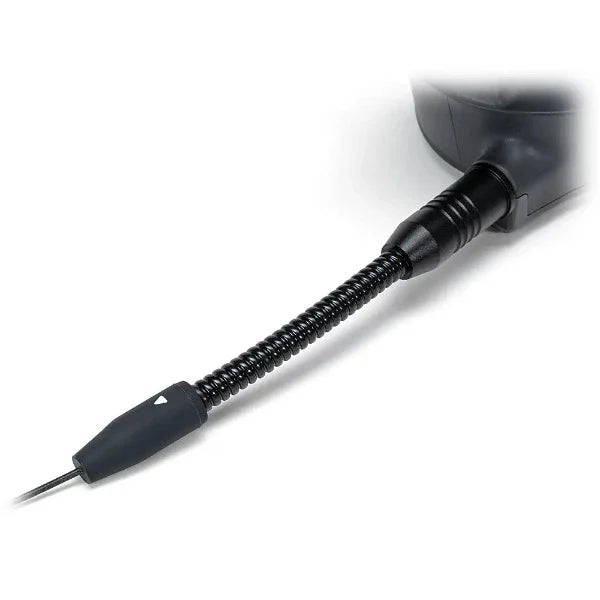

- Added probe strain-relief
- P-Series probe compatibility, except 3D measurement configurations
Probe Selection and Platform Compatibility
For this listing, viewing options are direct or side, with white LED illumination. Depth of field, field of view, resolution, and illumination intensity depend on the selected probe. Articulation range varies with probe length.
The broader P+ platform accommodates different probe diameters, lengths, viewing options, and white or UV illumination configurations. P+ updates include a streamlined interface and expanded lens-module support, including interchangeable and 2 MP options. These platform options depend on the configuration selected.
Inspection Controls and Recording
Touchscreen menus and an electric rocker provide image and articulation controls. Functions include digital zoom, freeze-frame, image flip and mirror, playback, and illumination adjustment. JPEG images and AVI video support inspection documentation, with file naming and automatic or manual folder creation.
Battery Operation
The full system includes two rechargeable lithium-ion battery sets, totaling eight batteries. The operating battery specification lists four rechargeable 18650 batteries, with up to approximately 3 hours of operation per set.
Alabama Probe provides regional sales assistance for industrial inspection teams across the Southeast.
Specifications
| Diameter | 2.2 ± 0.1 mm (other diameters by selection) | |
|---|---|---|
| Resolution | By selection (e.g., 400×400, 720×720or ) | |
| Direction of View | Direct, Side (by selection) | |
| Depth of Field (DOF) | Probe-dependent (e.g., ~3–50 mm) | |
| Field of View (FOV) | Approx. 120° (model-dependent) | |
| Illumination Source / Type | White LED | |
| Intensity | Up to ~8,000 lux (probe-dependent) | |
| Probe Articulation Range | Varies by probe length (e.g., 150° ± 10° @ 1.0 m; 140° ± 10° @ 1.5 m; 110° ± 10° @ 2.0 m; 100° ± 10° @ 3.0 m) | |
| Dimensions / Weight | 246 × 321 × 123 mm / 2.3 kg | |
| Display Screen | 8″ IPS industrial HD touch LCD, 1024 × 768 (4:3) | |

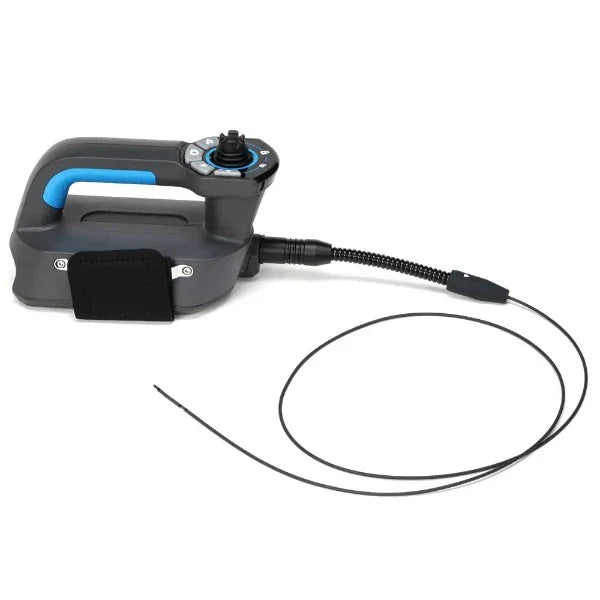

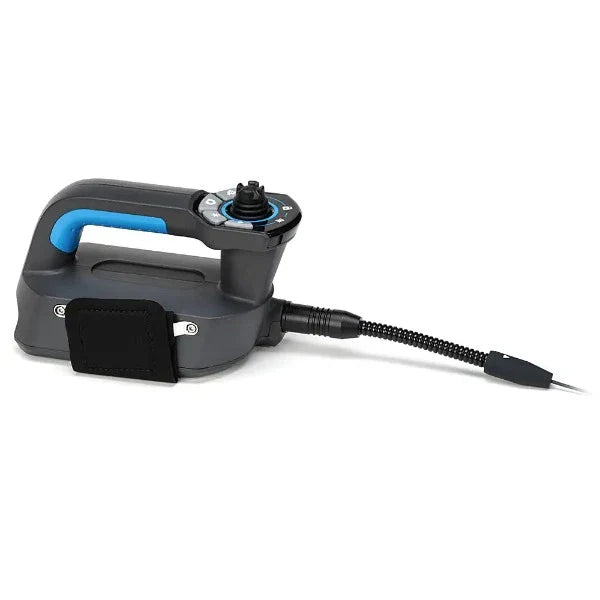

| Control Lever | Electric rocker, 360° rotation, articulation lock, automatic set | |
| Functions | Image capture, video recording, playback, articulation, illumination control | |
| Storage | 32 GB high-speed SD card (up to 128 GB) | |

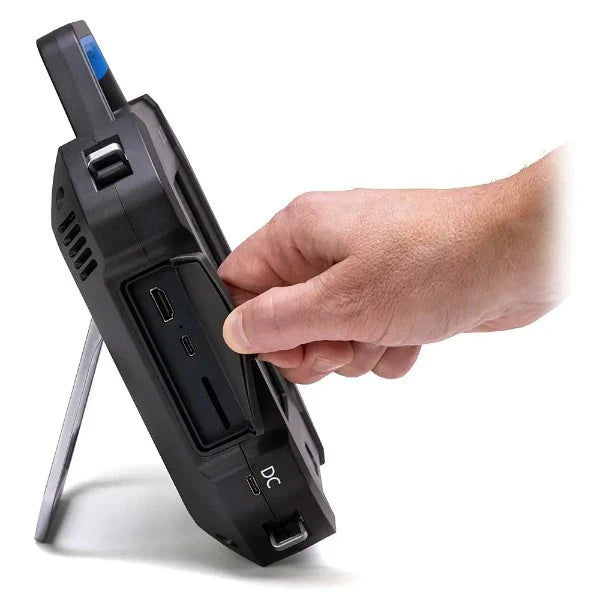

| I/O port | SD card, HDMI (1024 × 768), USB-C for charge/data | |
| Battery | Four rechargeable 18650 lithium-ion batteries | |
| Brightness Control | 10-level adjustment | |

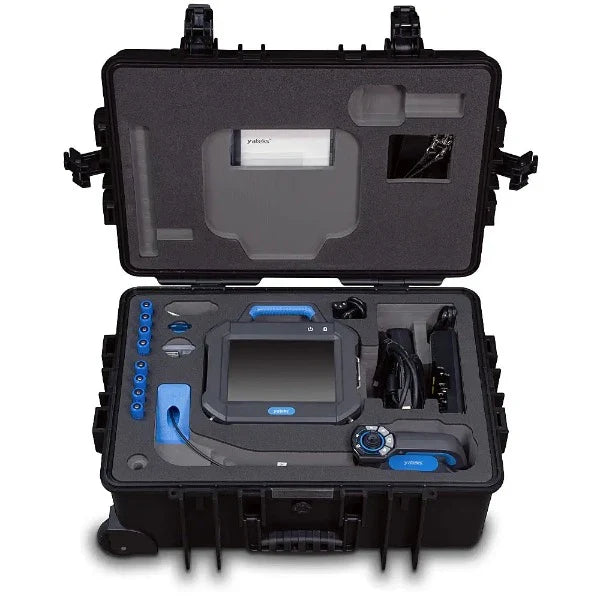

| Full System | Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter | |
| Compatibility | Interchangeable with all P-Series probe sizes, lengths, and styles (except 3D measurement) | |
| Operating System | Real-time multifunctional operating system | |
| User Interface | Touchscreen operation menu | |
| File Management | Auto or manual folder creation, rename files | |
| Image Control | Digital zoom, image/video playback, freeze-frame, flip image, mirror image | |
| Image Format/Video Format | JPEG, AVI | |
| Language | English / Chinese / Korean / German / Russian / Japanese | |
| Color Settings | 4 modes for different applications | |
| White Balance | Automatic / Manual | |
| Exposure Mode | Automatic / Manual | |
| Firmware Update | Via SD card service pack | |
| Monitor Working Temperature | −10 to 50 °C | |
| Probe Working Temperature | −20 to 70 °C | |
| Relative Humidity | Highest 90%, no condensation | |
| IP Rating | Monitor IP54 / Probe IP67 |
Downloads
Yateks P+ Series Product Brochure
FAQ
Which viewing and articulation options are described?
The 2.2 mm description lists direct or side viewing and motorized two-way or all-way articulation options. Confirm the selected probe configuration when ordering.
Can the monitor use existing P-Series probes?
Yes. The monitor supports P-Series probe sizes, lengths, and styles, except 3D measurement configurations.
What recording and storage options are available?
The system supports JPEG images and AVI video. A 32 GB high-speed SD card is listed, with storage support up to 128 GB.
