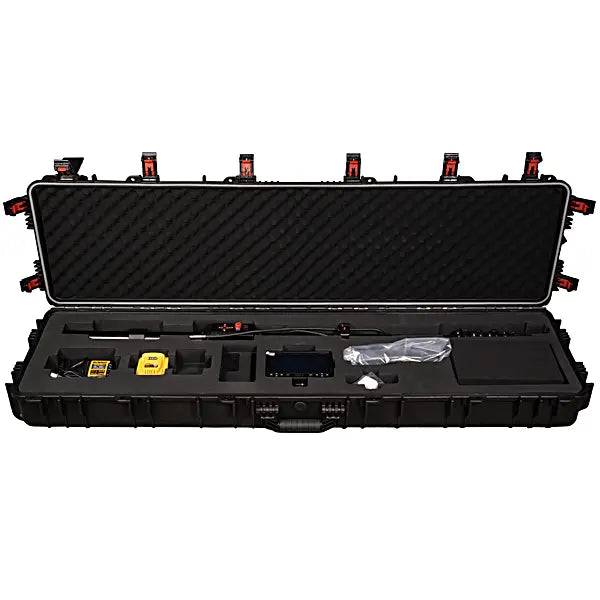

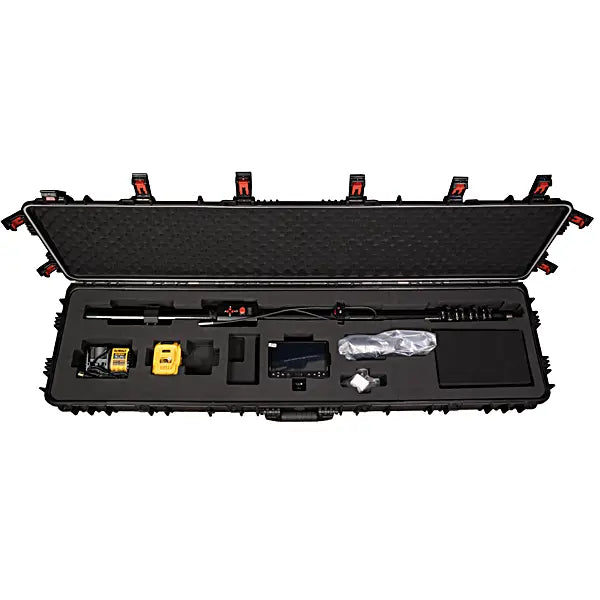

XtendaCam HD PTZ60 Telescopic Camera Kit
The XtendaCam HD PTZ60 Telescopic Camera Kit provides remote viewing with a carbon fiber pole that extends from 1.4 to 5 meters. Weighing 3 kg including the battery, camera, and controller, the system supports inspections that can reduce reliance on ladders or scaffolding.

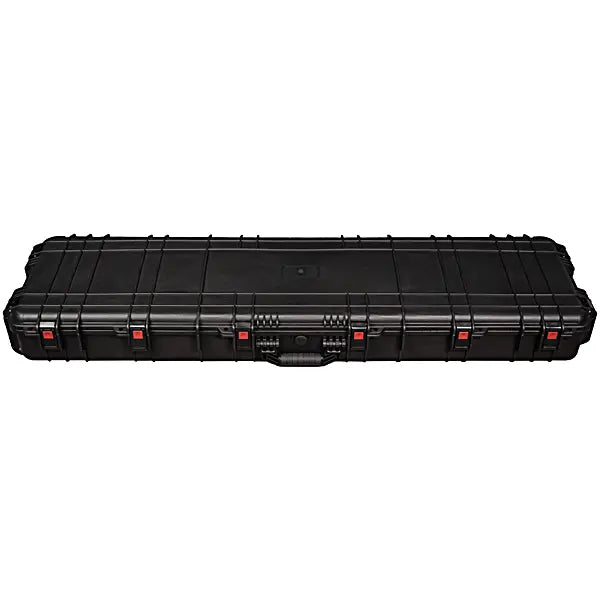

Applications include snubber inspections, amusement park rides, and deep vessels, with uses in public safety, power generation, and construction. The pole contracts to 1.4 meters for transport.
Key Features

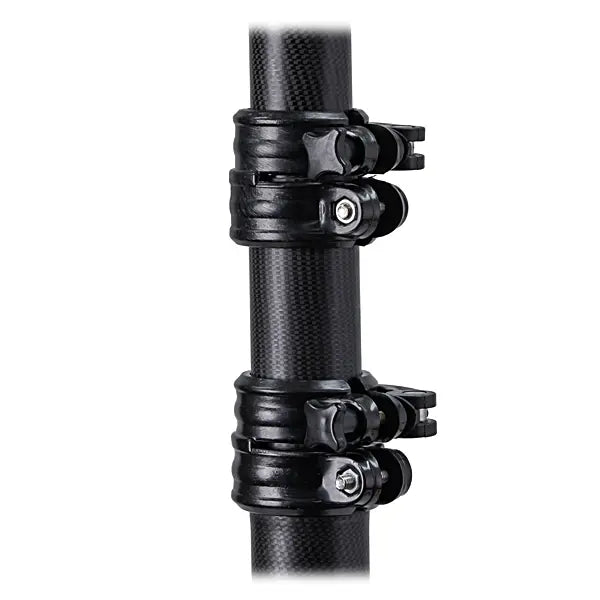

- Carbon fiber telescopic pole with 1.4–5 meter extension range
- 2 MP color camera with four high-brightness LEDs
- 360° axial rotation and ±110° radial tilt
- 7-inch capacitive touchscreen with 1920 x 1080-pixel display resolution
- 10x live image magnification and manual focus
- Adjustable screen brightness and 10 levels of lighting adjustment
- 3-hour battery life and 64 G storage
- JPEG image and ASF video recording at 1920 x 1080 pixels
Position the Camera for the Inspection

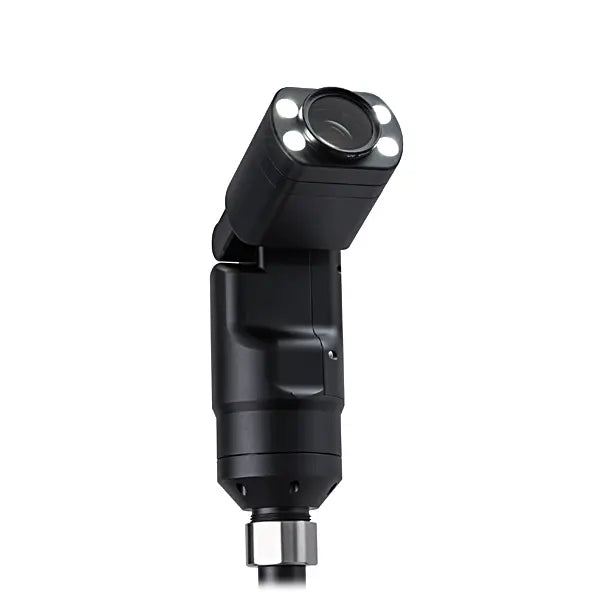

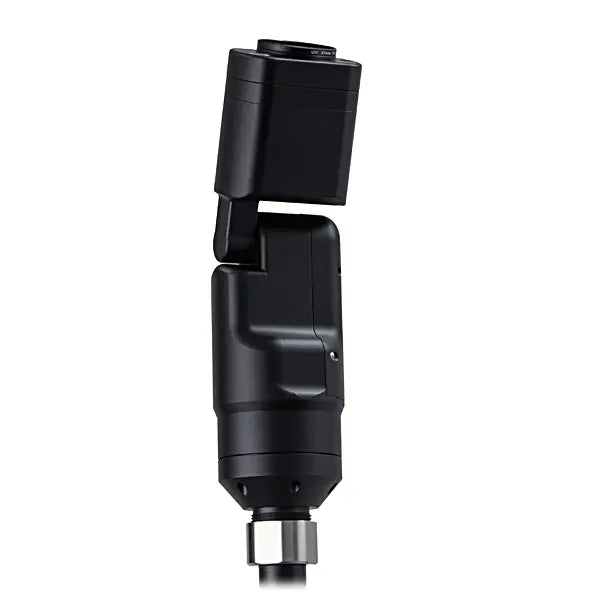

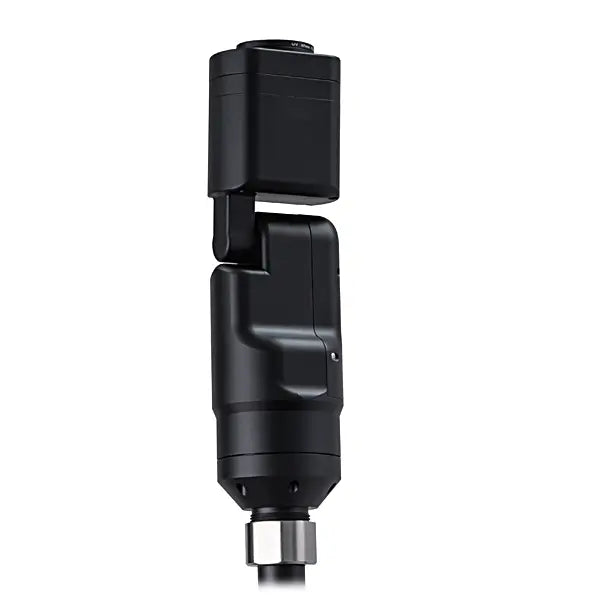

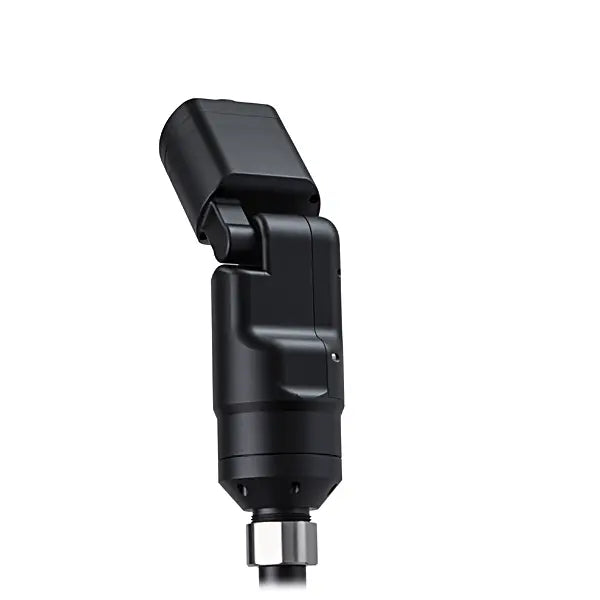

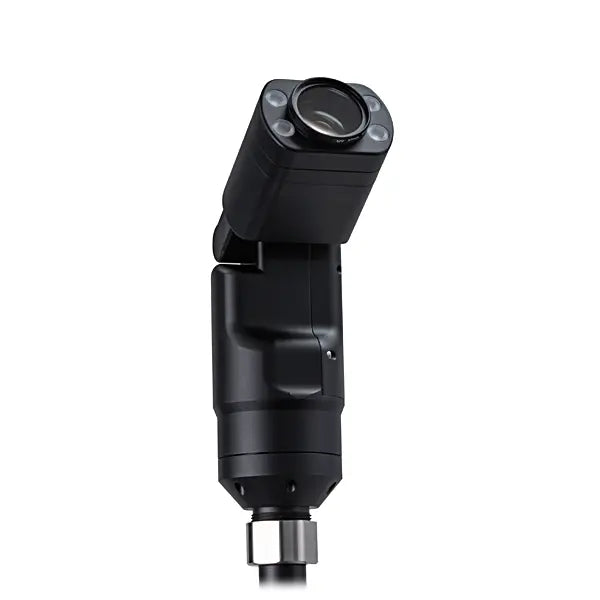

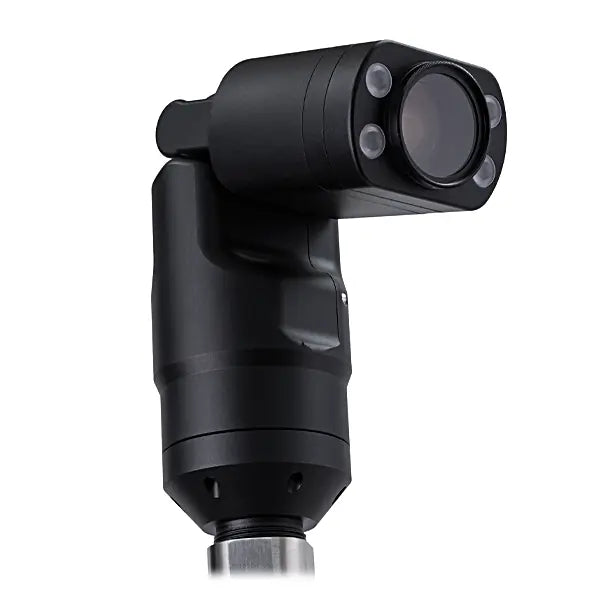

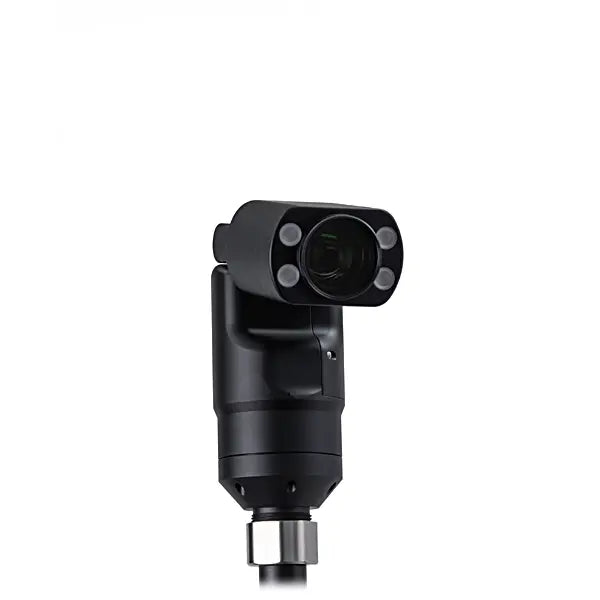

The 66 mm color camera rotates through 360° and tilts approximately 110° in either direction, allowing the view to be adjusted while the pole remains positioned. Four LEDs illuminate the inspection area, and the aluminum camera housing has an IP65 rating.
Touchscreen Viewing and Documentation

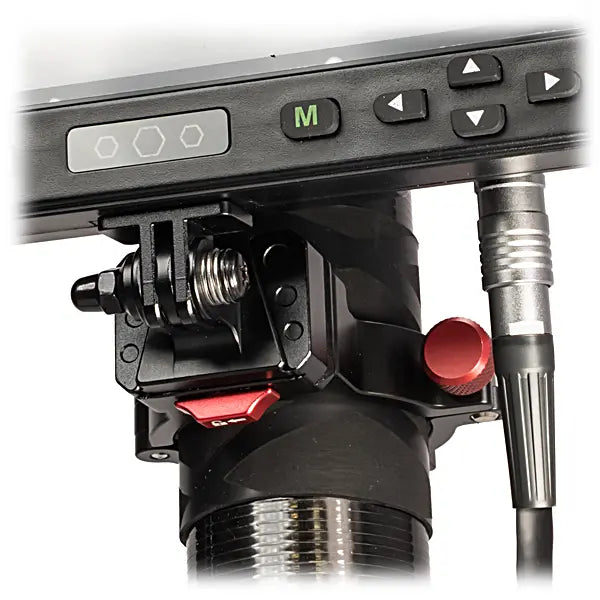

The 0.4 kg controller combines a 7-inch capacitive touchscreen with adjustable display brightness for indoor and outdoor use. Live image magnification, manual focus, and adjustable white balance help configure the view. Image and video capture support inspection documentation, with USB 2.0 available for data transfer.
Alabama Probe provides regional sales assistance for remote inspection applications across the Southeast.
Downloads
XtendaCam® HD PTZ60 Telescopic Camera Operational Manual
Specifications
| Controller & Software Operation | ||
|---|---|---|
| Controller Size | 121.4 x 179 x 43.6 mm | |
| Controller Weight | 0.4 kg | |
| LCD Display | 7-inch LCD Display | |
| Touchscreen | Capacitive Touch Screen | |
| Resolution | 1920 x 1080 pixels | |
| Display Frame Rate | 30 Frames/ second | |
| Screen Brightness | Adjustable 400 cd/m² | |
| USB Interface | USB 2.0 data transfer | |
| White Balance | Manually Adjustable | |
| Video Output | Manually Adjustable | |
| Storage Card | 64 G | |
| Image Preview Magnification | 3 times | |
| Live Image Magnification | 10 times | |
| Lighting Control | 10 levels of brightness adjustment | |
| Image Format | JPEG 1920 x 1080 pixels | |
| Video Format | ASF 1920 x 1080 pixels | |
| Language | 16 Languages | |
| Color Rotation Camera | ||
| Lens Diameter | 66 mm | |
| Lens Length | 70 mm | |
| Pixel | 2 MP | |
| Illumination | 4 High-Brightness LED Lights | |
| Housing Material | Aluminum | |
| Radial Flip | ±110° | |
| Axial Rotation | 360° | |
| Depth of Field (DOF) | 0.5 ∼ ∞ | |
| Image Sensor | CMOS | |
| Waterproof Standards | IP65 | |
| Telescopic Pole | ||
| Telescopic Rod Contraction Length | 1.4 meters | |
| Telescopic Rod Expansion Length | 5 meterss | |
| Telescopic Pole Material | Carbon Fiber | |
| Weight | 3 kg (including battery, camera, controller) | |
FAQ
How far does the telescopic pole extend?
The pole extends from 1.4 meters to 5 meters and contracts to 1.4 meters for transport.
How much camera movement is available?
The camera provides 360° axial rotation and approximately 110° of tilt in either direction.
What is the system’s battery life?
The battery life is 3 hours.
Can it save inspection images and video?
Yes. The system lists JPEG image capture and ASF video recording at 1920 x 1080 pixels, with a 64 G storage card.
