Description

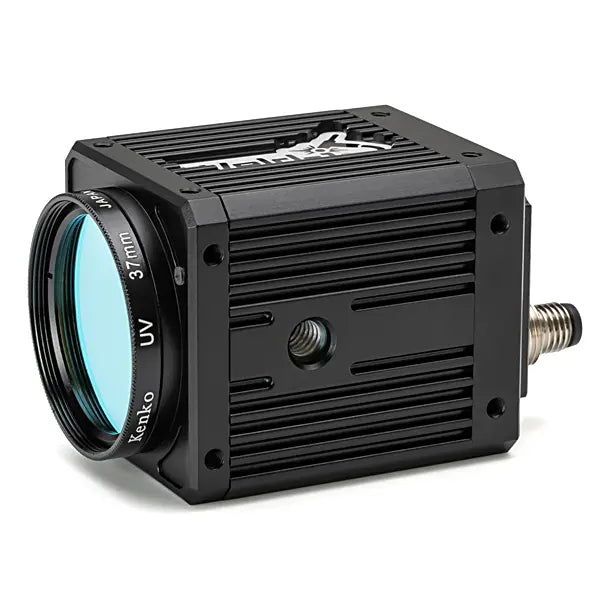

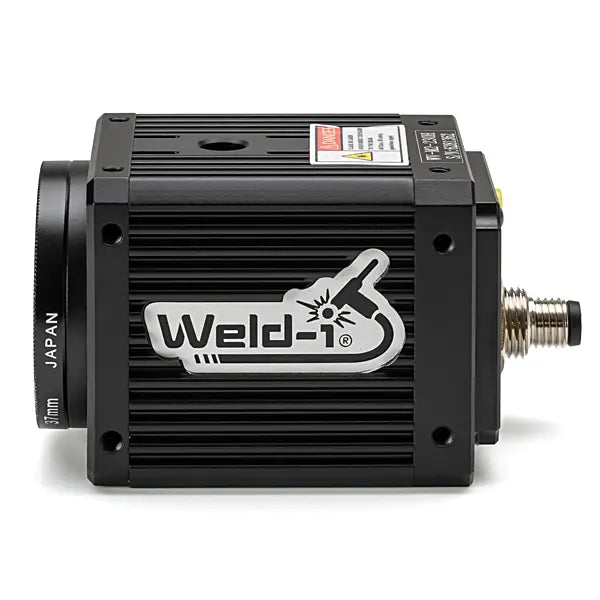

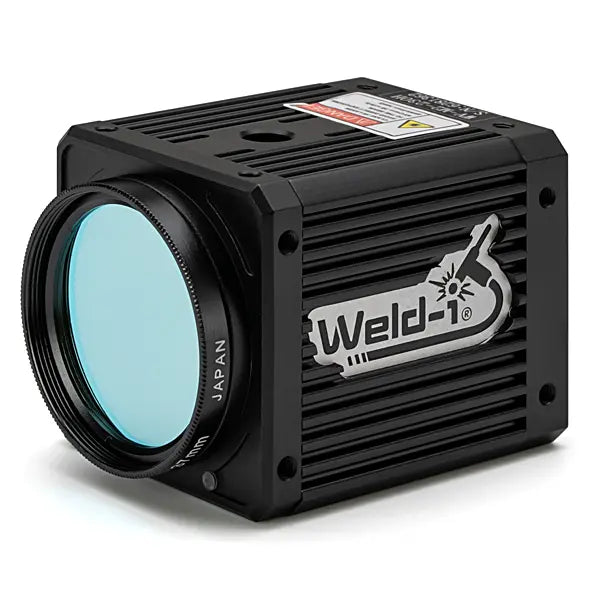

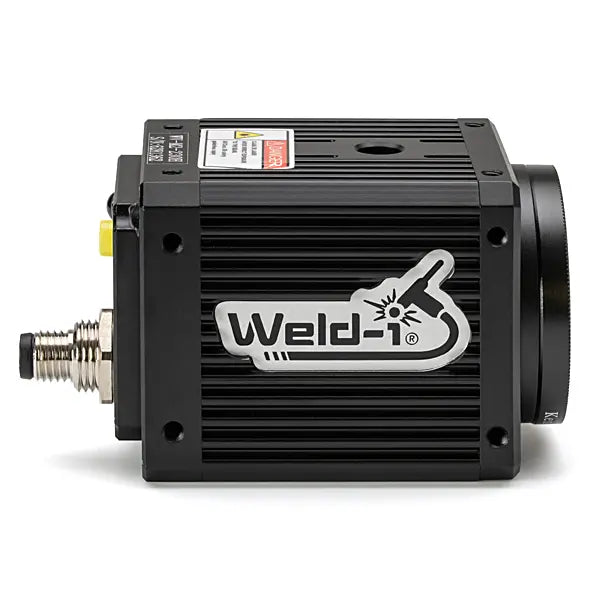

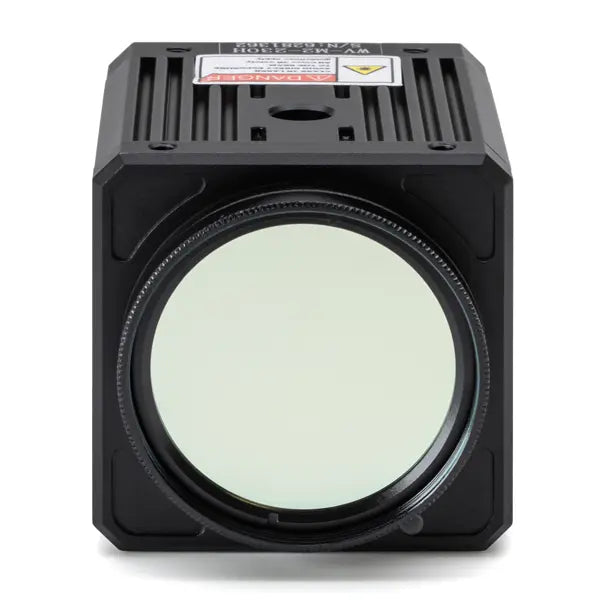

Weld-i® EDU USB Weld Vision Camera Kit
Give instructors and students a shared view of the welding process with the Weld-i® EDU USB Weld Vision Camera Kit. Designed for classrooms, labs, and training facilities, this compact system keeps the weld puddle, electrode, and base material visible during live welding. Recording through the connected computer allows instructors to revisit technique and discuss the process after each session.
Key Features
- Monochrome imaging with a maximum resolution of 1280 x 1024 px
- 60 fps at maximum resolution, with frame rates up to 206 fps
- Integrated arc-bypass processing and IR illumination

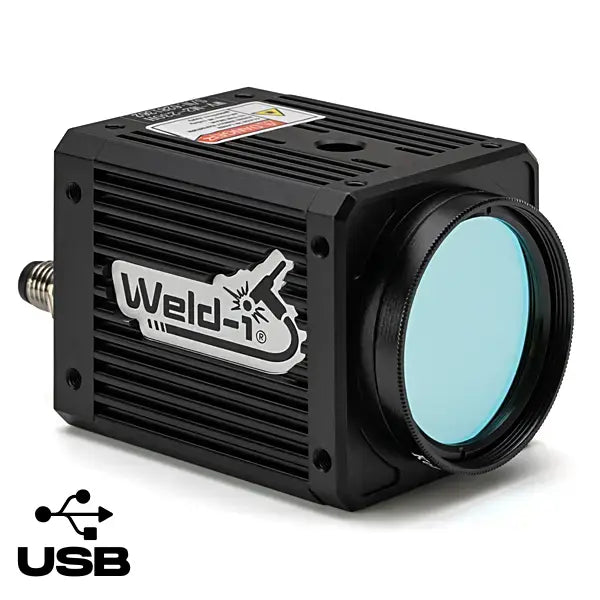

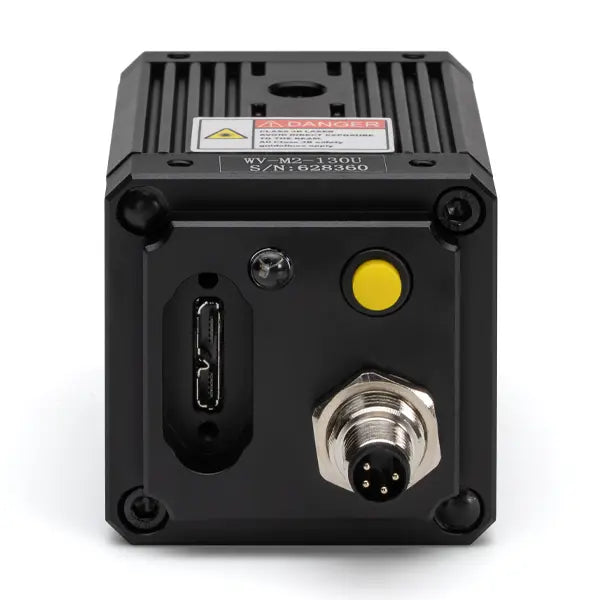

- USB connection to a PC for viewing and recording without additional capture hardware
- One optimized operating mode for MMA (stick), GTAW (TIG), GMAW (MIG), and FCAW
- Included 25 mm and 42 mm lenses for different working distances
- Replaceable protective lens covers
- Operating temperature rated up to 85°C
Live Observation and Recorded Review
Arc-bypass processing and IR illumination help maintain visibility despite welding arc brightness and glare. Instructors and students can observe the same live weld, then use recordings to review weld puddle behavior, arc stability, and technique. The USB-based setup connects directly to a PC for viewing and native recording.
Welding Processes and Lens Options
A single optimized operating mode supports MMA, GTAW, GMAW, and FCAW across aluminum, stainless steel, and carbon steel. The included lenses adapt the view to different training setups: the 25 mm lens supports working distances of 160–250 mm, while the interchangeable 42 mm lens supports 200–450 mm.
Replaceable lens covers protect the optics. The supplied mounting arm, clamp, and non-conductive mounting post provide components for positioning the camera.
Operating Conditions and Optional Accessories
The camera is rated for operating temperatures from -40° to 85°C. Lithium battery operation and a copper heat sink are described as accessory options, but both accessories are listed as not yet available.
Alabama Probe provides regional sales assistance for welding education and training teams across the Southeast.

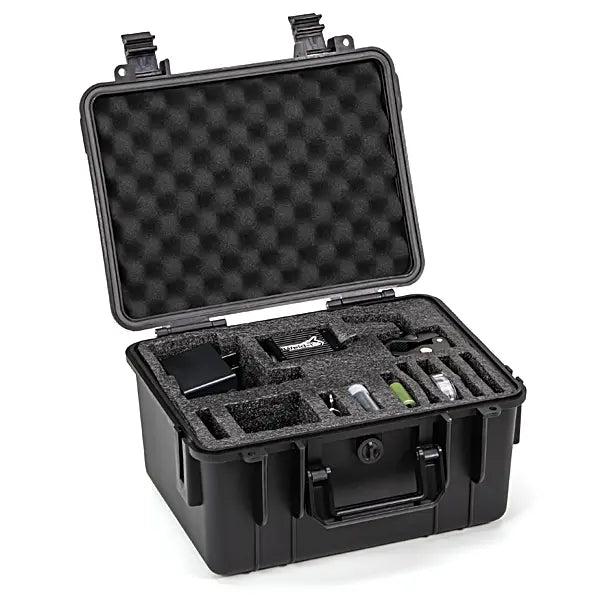

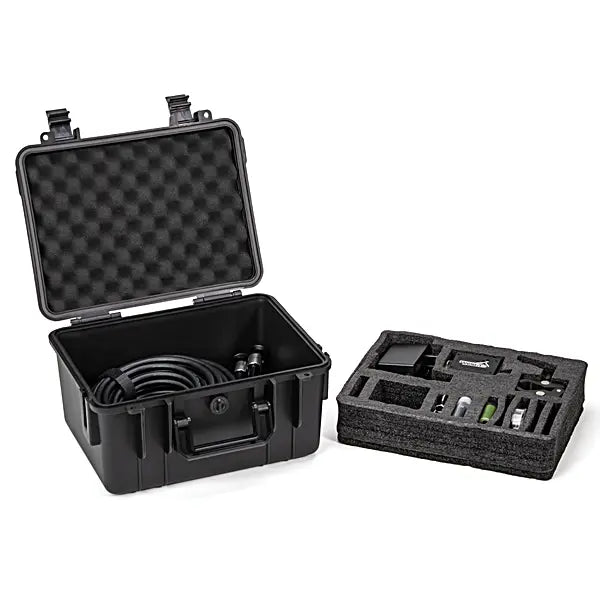

Items Included
| EM12261 | Weld-i® EDU HDMI Weld Vision Camera Head | |
|---|---|---|
| EM12262 | Weld-i® EDU HDMI Cable - 10 meter | |
| EM12263 | Weld-i® EDU Power Extension Cable - 10 meter | |
| EM12264 | Weld-i® EDU Weld Vision Protective Lens | |
| EM12265 | Weld-i® EDU Weld Vision Power Supply | |
| EM12266 | Weld-i® EDU Weld Vision Adjustable Mounting Arm | |
| EM12267 | Weld-i® EDU Weld Vision Crab-Claw Clamp | |
| EM12268 | Weld-i® EDU Weld Vision Rugged Case | |
| EM12269 | Weld-i® EDU Weld Vision Lens Adjustment Wrench | |
| EM12270 | Weld-i® EDU Weld Vision 25mm Camera Lens | |
| EM12271 | Weld-i® EDU Weld Vision 42mm Camera Lens | |
| EM12272 | Weld-i® EDU Weld Vision Non-Conductive Mounting Post |
Specifications
| Sensor Type | B&W 1/2.7" CMOS sensor | |
|---|---|---|
| Max Resolution | 1280 x 1024 px (1.3 MP total) | |
| Frame Rate | 60 fps at max resolution (up to 206 fps) | |
| Protocol | USB3.0 / U3Vision / GenICam | |
| Operating System/Software | Win7/Win10/AndroidOS | |
| Lens | f=25 mm (Built-in) f=42 mm (Interchangeable) |
|
| Working Distance | 6.30" – 9.84" (160–250 mm, 25 mm lens) 7.87" – 17.7" (200–450 mm, 42 mm lens) |
|
| Working Temperature | -40° to 85°C | |
| Dimensions | 1.77" x 1.77" x 2.57" (45 x 45 x 65.2 mm) |
FAQ
Which welding processes does the camera support?
The camera supports MMA (stick), GTAW (TIG), GMAW (MIG), and FCAW using a single optimized operating mode. Supported materials include aluminum, stainless steel, and carbon steel.
Can training sessions be recorded?
Yes. The USB connection supports recording directly to the connected computer without additional capture hardware, allowing sessions to be played back for instruction and review.
What working distances do the included lenses support?
The 25 mm lens supports 160–250 mm (6.30"–9.84"), and the 42 mm lens supports 200–450 mm (7.87"–17.7").
Are the lithium battery and copper heat sink available?
Both accessories are listed as not yet available.
