Description

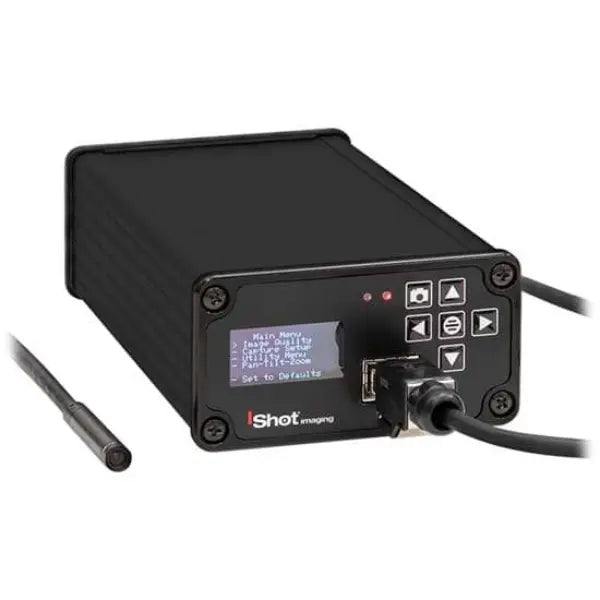

iShot® QNHD Camera Control Unit

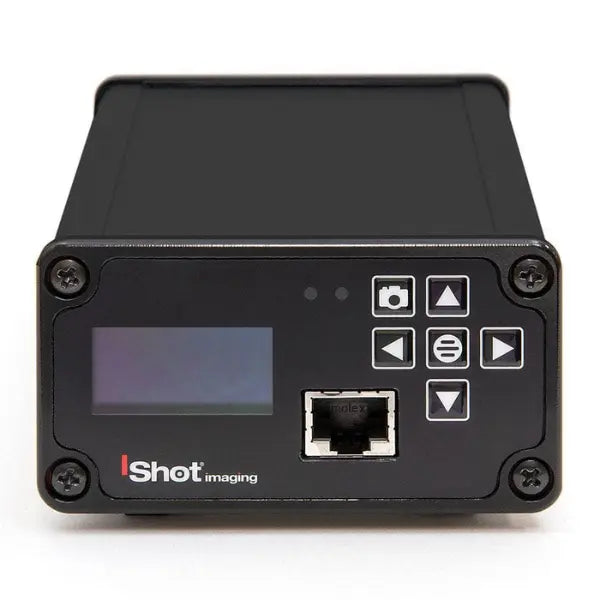

The QNHD Camera Control Unit (CCU) controls and processes imaging from the QNHD camera head and integral cable. Through the RJ45 connector, the CCU commands still-image and video capture and provides adjustments for white balance, sharpness, gamma, saturation, contrast, and hue.

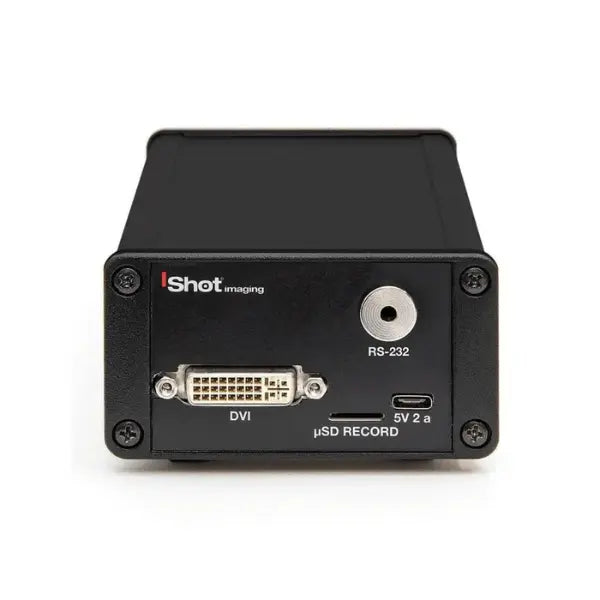

Connections and Storage
- DVI video output
- USB-C power input and USB video output
- MicroSD image file storage
- External COM port for RS232 communication between the CCU and camera
- Chassis grounding connection
System Information
For further camera head, cable, and system details, see the iShot® QN-HD 7mm Industrial Color Camera System.
Regional Sales Assistance
Contact Alabama Probe for regional sales assistance with QNHD camera system configurations across the Southeast, including Alabama, Tennessee, and Georgia.
Specifications
Standard Connections
| DVI | Video output | |
|---|---|---|
| USB-C | Power input, USB video output | |
| MicroSD | Image file storage | |
| External COM port | RS232 communication between CCU and camera | |
| Chassis Ground Connection | #8-32 x 3/8" grounding connection |
QNHD System Specifications
| Signal System | DVI, USB 2.0 | |
|---|---|---|
| Video Formats | 1080p60, 1080p30, 720p60, 480p120 | |
| Format | 16:09 | |
| Sensor | 1/6" CMOS 2 Megapixel | |
| Exposure | Auto, Manual | |
| Shutter Values | Automatic, over 20 selectable values | |
| Image Controls | White Balance, Sharpness, Gamma, Saturation, Contrast, Hue | |
| E-PTZ | Available in Downscaled Modes | |
| Presets | 4 Available | |
| Color Temp Options | 2800K, 4500K, 6500K | |
| Cable Material | PFA (High Temperature) or PVC | |
| Cable Lengths | 2 m, 3.5 m, 5 m, 10 m, and 15 m | |
| Storage | Removable Micro SD | |
| Power | 5v DC , 800ma, 1a under LED operation |
FAQ
What does the QNHD Camera Control Unit control?
The CCU controls and processes imaging from the QNHD camera head and integral cable. It commands still-image and video capture through the RJ45 connector.
Which image settings can be adjusted?
The listed image controls are white balance, sharpness, gamma, saturation, contrast, and hue.
What is the USB-C connection used for?
The USB-C connection provides power input and USB video output.
