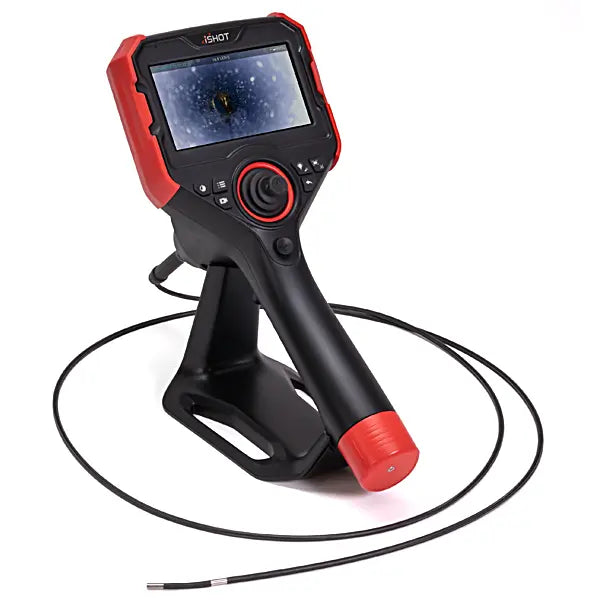

iShot® Model VX Industrial Borescope Handheld Monitor

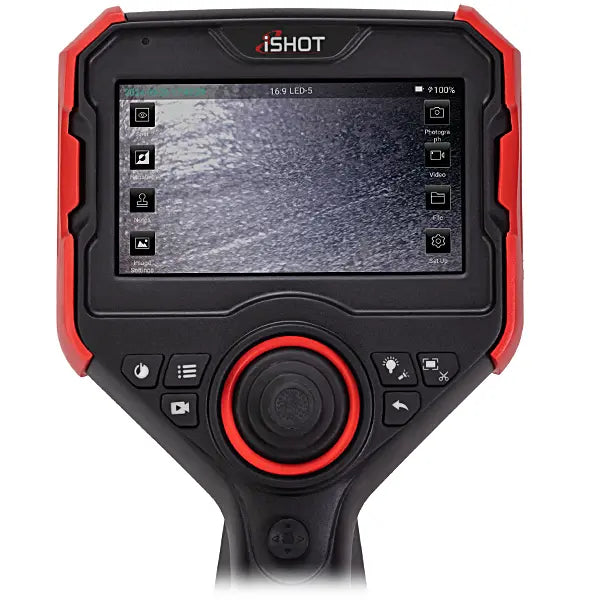

The iShot® Model VX Handheld Monitor provides touchscreen viewing and inspection controls for compatible Model VX probes. Its 5-inch Full HD display, live image magnification, and image enhancement functions support remote visual inspection of internal cavities, welds, blockages, defects, and foreign object debris.
Key Features
- 5-inch touchscreen with 1920 x 1080-pixel resolution
- 10x live image magnification
- Image capture, image enhancement, and on-screen written annotations
- Button and touchscreen menu operation
- Auxiliary LED flashlight on the back of the monitor

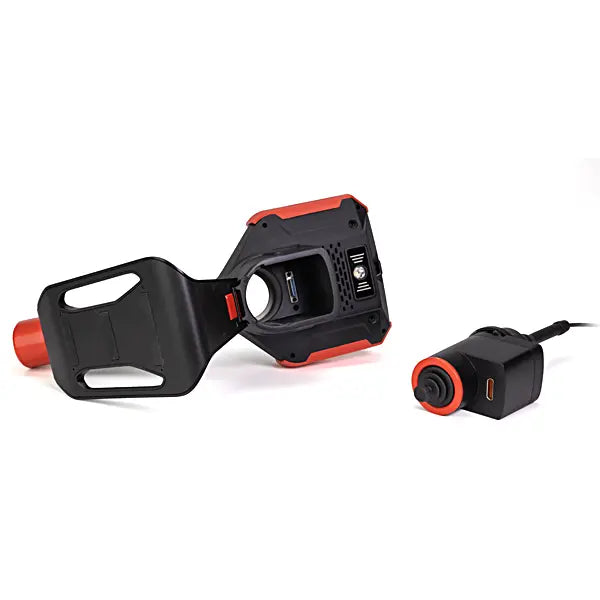

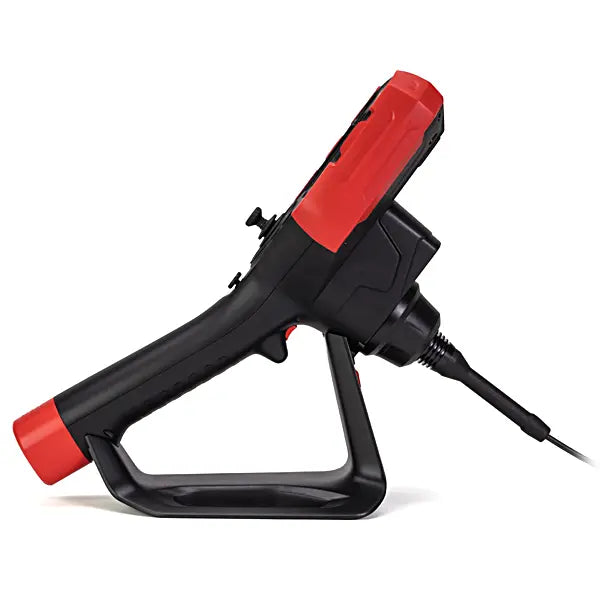

- Detachable magnetic base stand for hands-free monitor placement

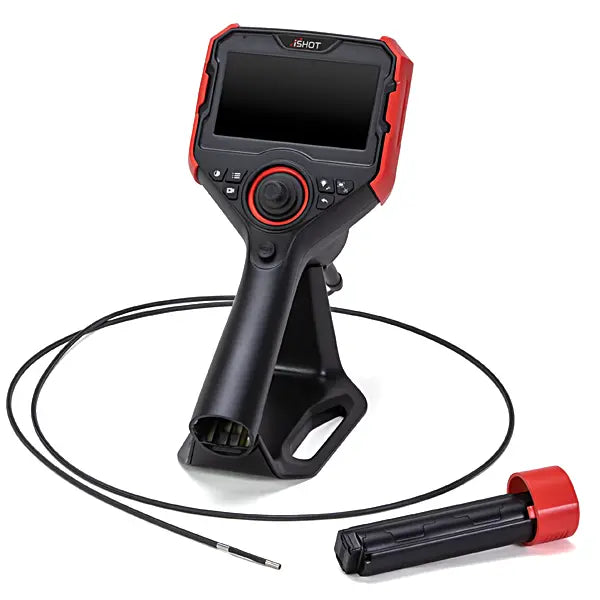

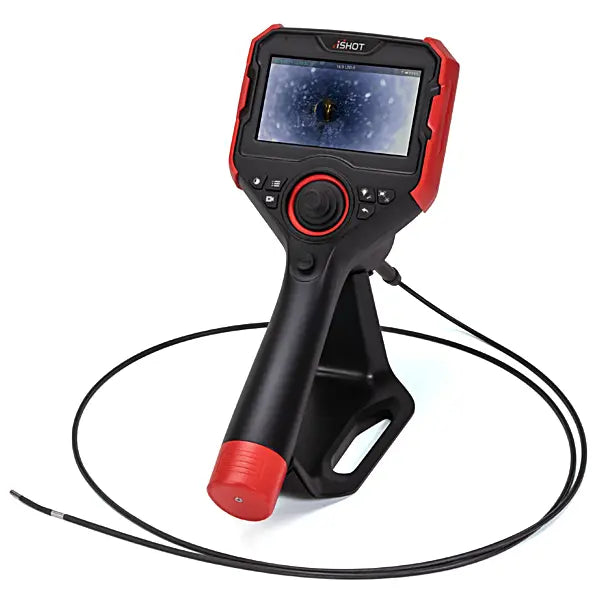

- Compatible with all iShot® Model VX probes, including non-articulating, motorized or manual articulating, and FOSAR configurations
View, Adjust, and Document Inspections
Use the interactive touchscreen menu and buttons to control the inspection image. Live image magnification helps examine details, while image capture and written annotations support inspection documentation. Image settings include white balance, contrast, saturation, exposure, and gain.

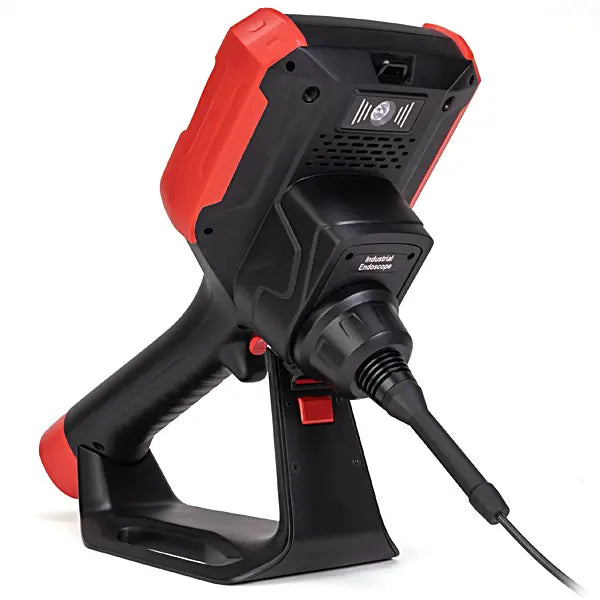

The rear LED flashlight illuminates the inspection access area. A detachable magnetic base stand supports hands-free monitor placement while positioning the probe.
One Monitor, Multiple Probe Configurations
The Model VX platform offers modular probes with CMOS sensors and tungsten braided mesh. Probe options vary in diameter, length, direction of view, articulation, and illumination, allowing teams to select a configuration suited to their inspection access and viewing requirements.
Compatible iShot® Model VX FOSAR probes add working-channel options for foreign object search and retrieval. LED or fiber illumination and articulation options depend on the selected probe configuration.
Contact Alabama Probe for assistance selecting a Model VX monitor and probe configuration for your inspection requirements. Regional sales assistance is available across the Southeast, including Alabama, Tennessee, and Georgia.
Specifications
| Dimensions | 330 x 90 x 150 mm (≈0.93kg) | |
|---|---|---|
| Display | 5-inch 1920 x 1080 pixel, touchscreen display | |
| Joystick Control | Compatible Motor Driven/ Manual | |
| Menu Operation | Buttons + Touch Screen | |

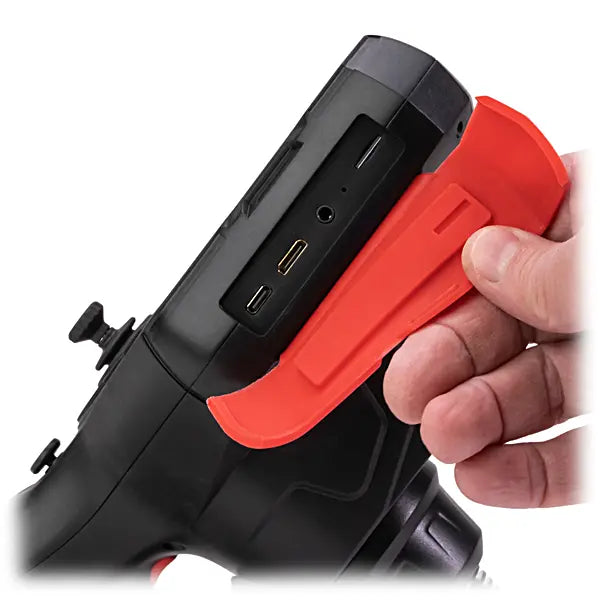

| Output Interface | SD/HDMI/ TYPE-C (charge) /mini USB /3.5mm headphone jack | |
| Compatibility | Compatible with all iShot Model VX probes (non-articulating, motorized or manual articulating, and FOSAR probes) | |
| Software Settings | Time/ Language/ Energy Saving/ Sound/ Magnification/ SD Card Update, etc. | |
| Features | White Balance/ Contrast/ Saturation/ Exposure/ Selected/ Gain/ Scale/ Watermark/Temperature Display/ Split view/ Contrast Measurement | |
| Temperature Sensor | High-temperature alarm | |
| Working Temperature | -20°~50° |
Downloads
iShot® Model VX Industrial Borescope Operational Manual
FAQ
Which probes are compatible with this monitor?
The monitor is compatible with all iShot® Model VX probes, including non-articulating probes, motorized or manual articulating probes, and FOSAR working-channel probes.
What display and magnification does the monitor provide?
It has a 5-inch, 1920 x 1080-pixel touchscreen and provides 10x live image magnification.
Can inspection images be annotated?
Yes. The Model VX monitor supports image capture and on-screen written annotations for inspection documentation.
Does the monitor have a stand and access-area light?
Yes. It features a detachable magnetic base stand and an auxiliary LED flashlight on the back to illuminate the inspection access area.
