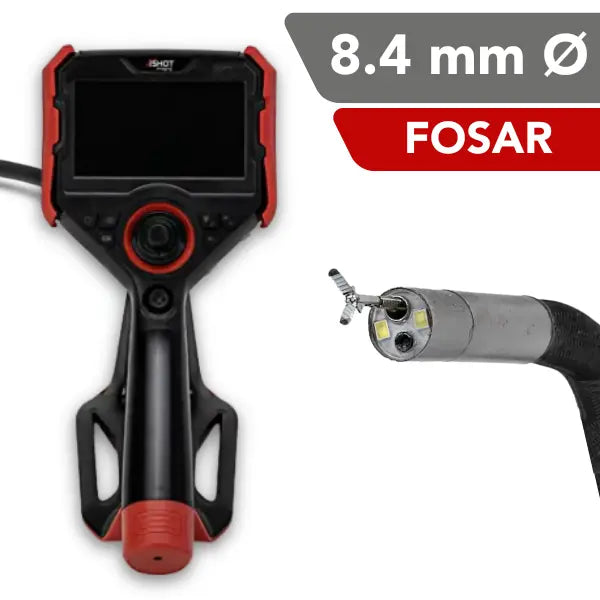

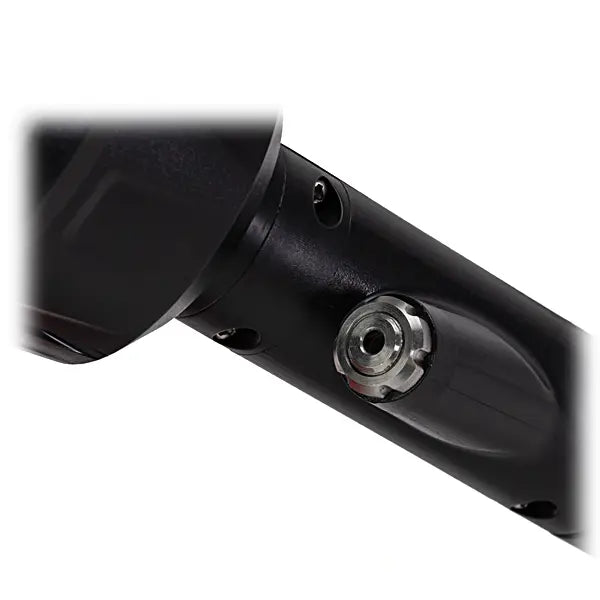

iShot® Model VX FOSAR 8.4 mm Working Channel Video Borescope — Probe Only

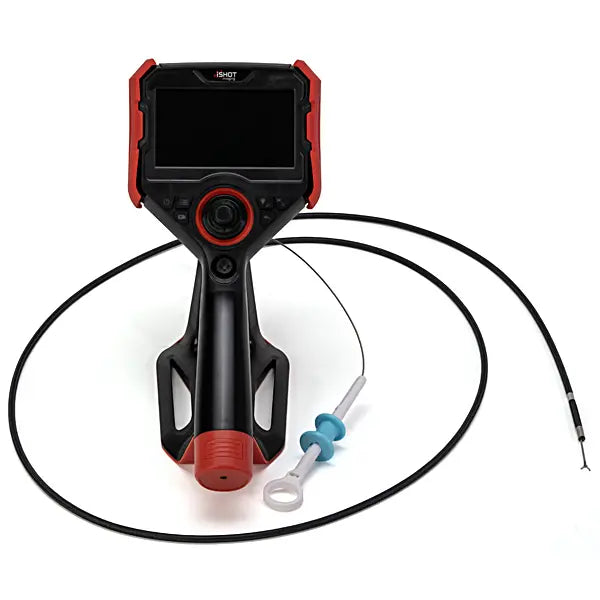

Locate and retrieve foreign object debris in difficult-to-access areas with the iShot® Model VX FOSAR Articulating Working Channel Probe. This configuration combines an 8.4 mm outer diameter, a 2.6 mm inner diameter, and manual or motorized four-way articulation for foreign object search and retrieval in power generation, general manufacturing, and other heavy industries.
This offering is for the probe only. Add the compatible iShot® Model VX Handheld Monitor separately.
Key Features
- Working channel compatible with multiple retrieval tool jaw types
- 8.4 mm outer diameter and 2.6 mm inner diameter
- Manual or motorized four-way articulation configurations
- CMOS sensor with 1280 x 720-pixel resolution
- White LED illumination rated at 40,000 Lux
- Depth of field from 15 mm to infinity
- Compatible with the iShot® Model VX Handheld Monitor
Inspection and Foreign Object Retrieval

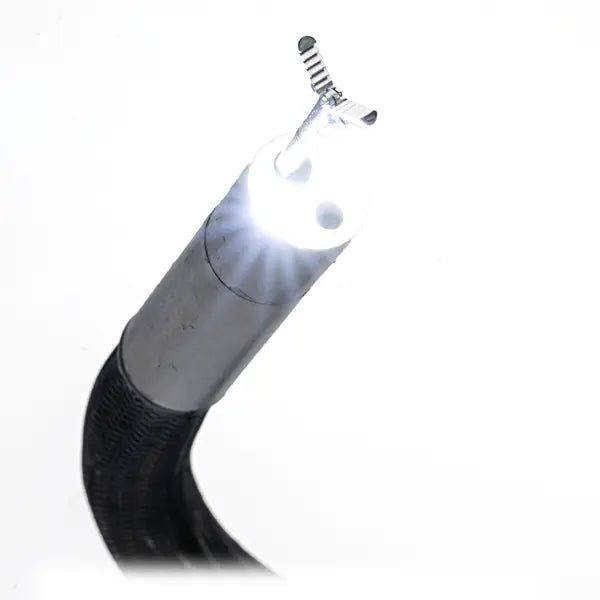

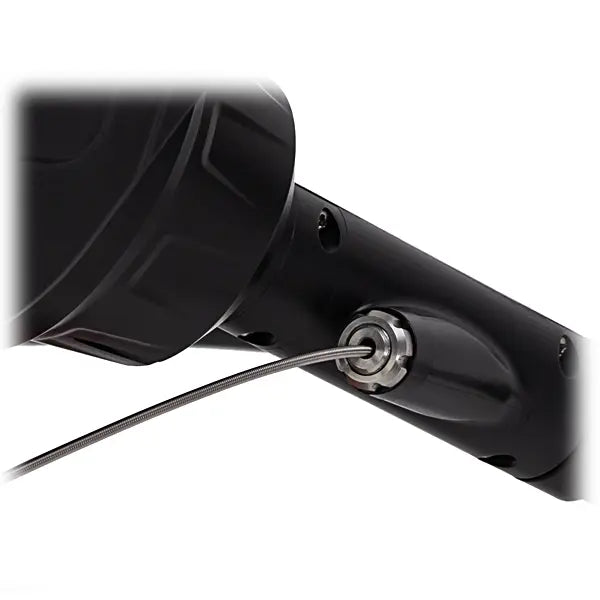

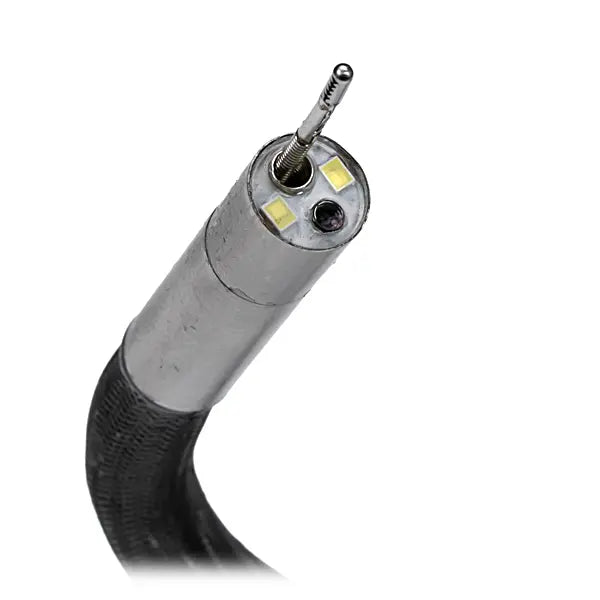

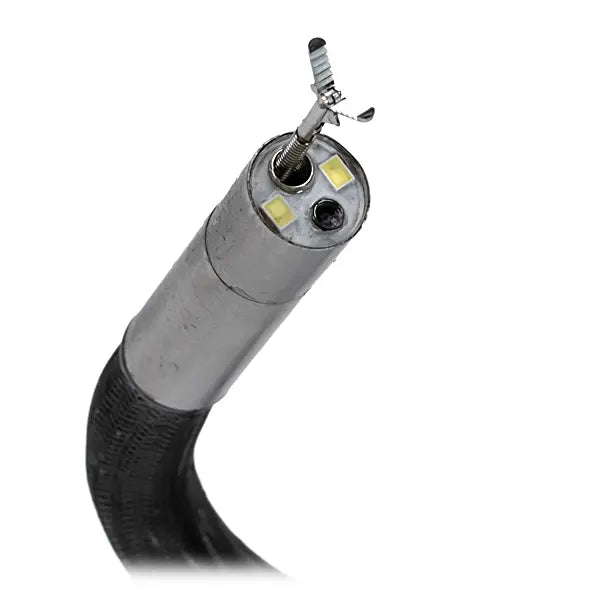

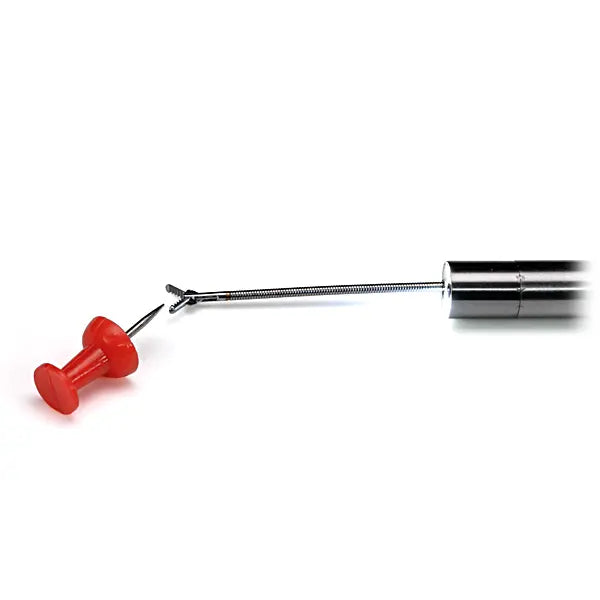

The working channel accommodates compatible iGrab™ micro-retrieval tools with different jaw sets for removing debris from systems and components. Four-way articulation helps position the probe during search and retrieval, supporting facility FOSAR operations and foreign material exclusion programs.
Watch the iShot® Model VX FOSAR Video Borescope Overview Video for a closer look at the platform.

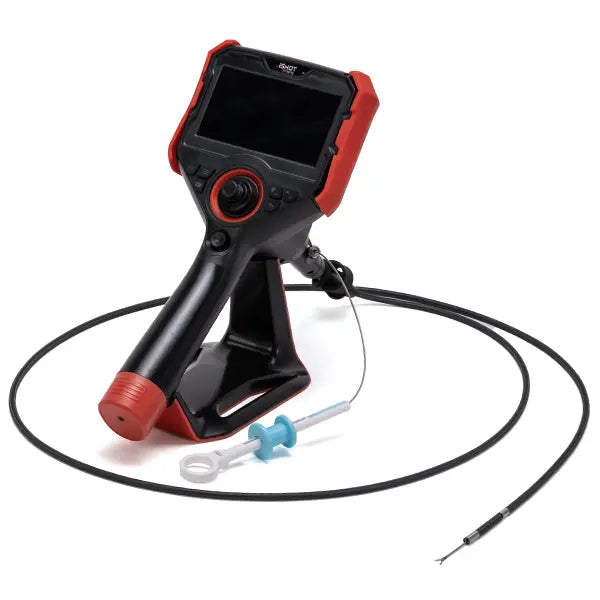

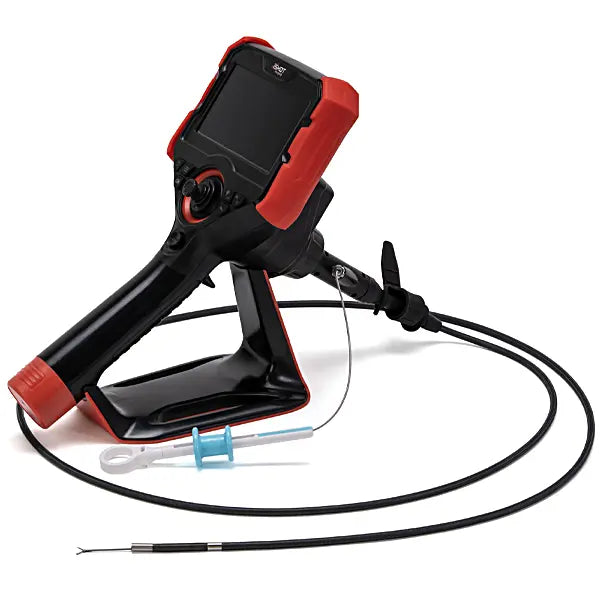

Compatible Model VX Monitor

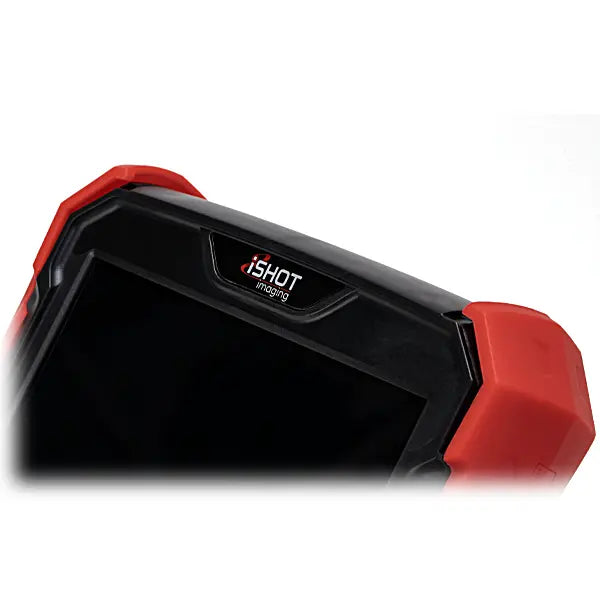

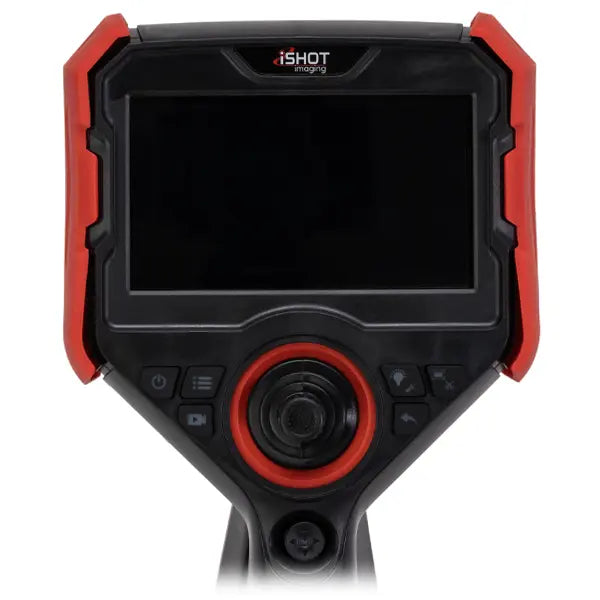

The separately purchased Model VX Handheld Monitor is compatible with all Model VX probes. Its 5-inch, 1920 x 1080 touchscreen provides an interactive menu, live image 10x magnification, image capture, image adjustments, and on-screen written annotations.

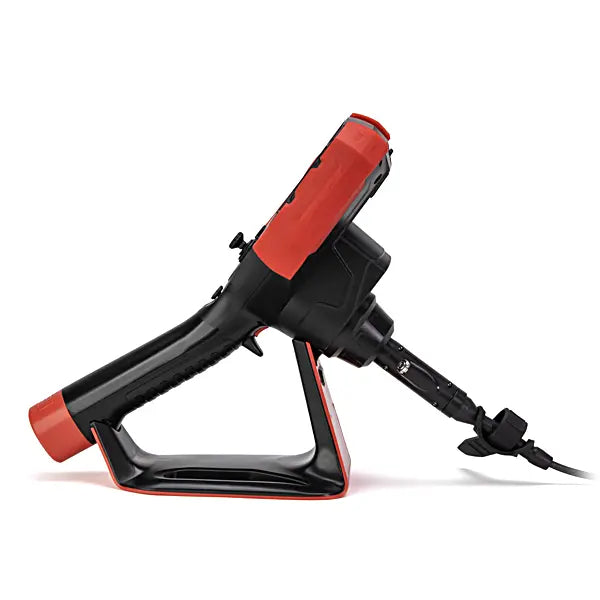

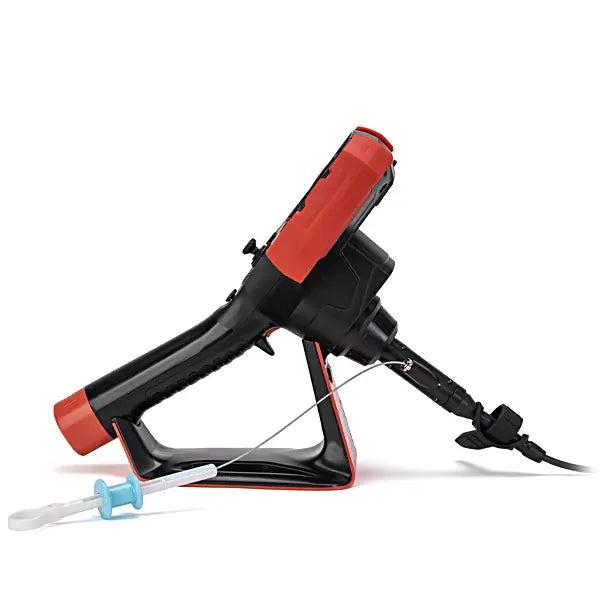

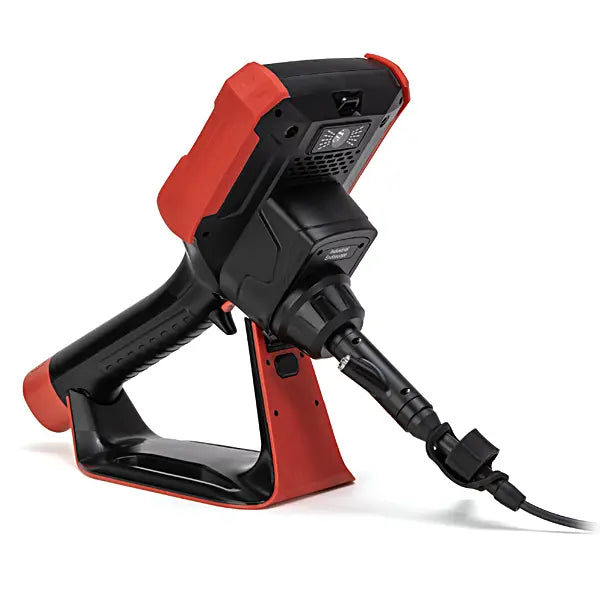

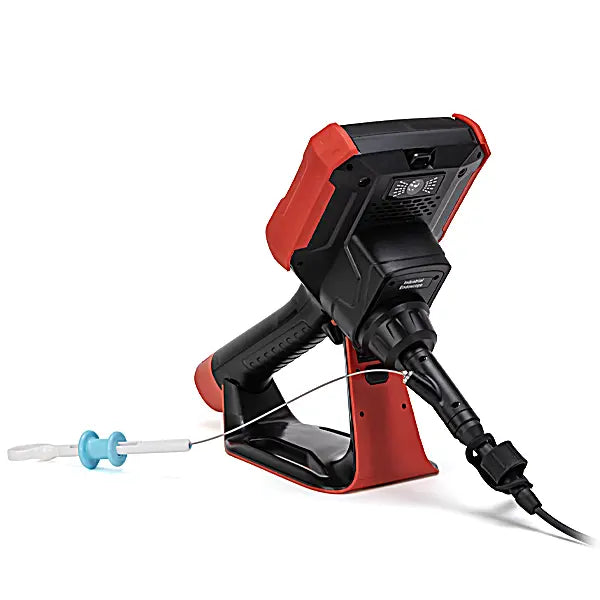

An auxiliary LED light on the monitor’s back illuminates the inspection access area, while a detachable back stand supports hands-free monitor placement. Interchangeable probes let teams select different diameters, lengths, and compatible retrieval tools for their inspection requirements.

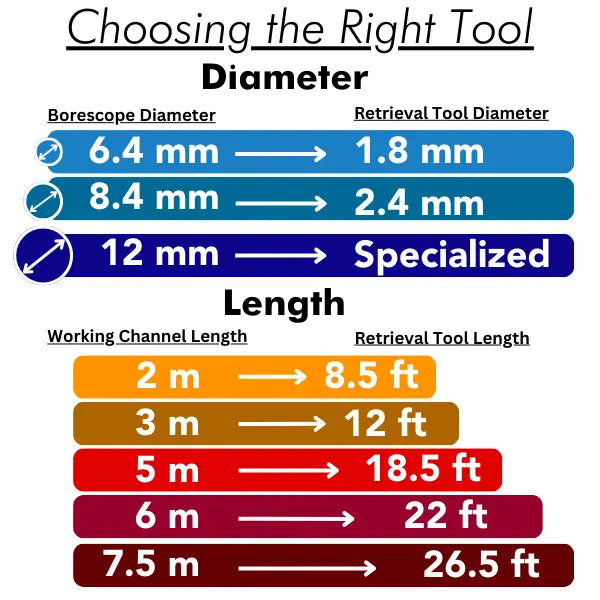

Choosing the Right Retrieval Tool
Retrieval jaw designs suit different types of debris and removal tasks. Read about Various Retrieval Tool Strengths or contact InterTest for help selecting a tool.
Length Guide
| Working Channel Length | Retrieval Tool Length | |
|---|---|---|
| 2 meters | 8.5 ft | |
| 3 meters | 12 ft | |
| 5 meters | 18.5 ft | |
| 6 meters | 22 ft | |
| 7.5 meters | 26.5 ft |
Diameter Guide
The supplied platform guide is reproduced below. Confirm tool compatibility for your selected probe; this probe’s inner diameter is 2.6 mm.
| Working Channel Diameter | Retrieval Tool Diameter | |
|---|---|---|
| 6.4 mm | 1.8 mm | |
| 8.4 mm | 2.4 mm | |
| 12 mm | Specialized Retrieval Tools |
Alabama Probe provides regional sales assistance across the Southeast, including Alabama, Tennessee, and Georgia.
Specifications
Software Operation and Control Parameters describe the compatible Model VX monitor platform. The monitor is purchased separately. Probe specifications describe the 8.4 mm probe.
| Software Operation | ||
|---|---|---|
| Operating System | Android Operating System, touch/menu operation | |
| Image Control | Live Image 10x Magnification | |
| Image Format | PNG / JPG/ JPEG1280 x 720 / 1920 x 1080 | |
| Video Format | MP4/ AVI/ MOV/ 3GP1280 x 720 / 1920 x 1080 | |
| Firmware Update | Upgrade via SD Card | |
| Languages | Currently supports Chinese, English , German, French, Japanese, Spanish, and Russian | |
| LED Brightness | Level 10 | |
| Dual Camera Display | Picture in Picture | |
| Image Adjustment | brightness/ hue/ saturation/ contrast / white balance/ exposure/ gain | |
| Image Comparison | Real time pictures vs storage pictures | |
| Functions | Picture freeze / Take photos while recording / screenshot function / image rotation/ temperature alarm/ screen lock / energy saving mode/ picture rename/ text annotation/ negative film/ documentation report/ image ruler / 2D measurement | |
| Picture Editing | Adjust brightness, color temperature, contrast, saturation. etc. | |
| Picture Annotations | Tags, stickers, graffiti | |
| File Processing | File / Folder / Copy / Delete / Rename | |
| Control Parameters | ||
| Touch Screen | Multi-touch | |
| LCD display | 5 inches - 1920 x 1080 | |
| Display frame rate | 30 fps | |
| Joystick Control | Manual / Electric | |
| Probe Interchangeable | Yes | |
| Audio | Built-in mic, Speaker | |
| OTG | Read U disk | |
| MTP | Computer reading device | |
| Video Output | HDMI | |
| USB | Mini USB | |
| Bluetooth | Available | |
| WIFI, Video | Available | |
| Brightness Control | 10 Levels | |
| Ram | 4 GB | |
| Internal Storage | 32 GB | |
| SD Card | 256 GB | |
| Probe | ||
| Sensor | CMOS | |
| Resolution | 1280 x 720 Pixels | |
| Depth of Field | 15 mm-infinity | |
| Field of View | >120° | |
| Illumination | White LED | |
| Illumination Intensity | 40,000 Lux | |
| Headcan Length | 25 mm | |
| Distal Articulating Tip Length | 78 mm | |
| Probe Outer Diameter | 8.4 mm | |
| Probe Inner Diameter | 2.6 mm | |
Downloads
iShot® Model VX Industrial Borescope Operational Manual
FAQ
Is the Model VX Handheld Monitor included?
No. This offering is for the Model VX FOSAR Articulating Working Channel Probe only. The compatible Model VX Handheld Monitor is purchased separately.
What are the probe and working channel diameters?
The probe has an 8.4 mm outer diameter and a 2.6 mm inner diameter.
What articulation options are available?
The probe is offered in manual or motorized four-way articulation configurations.
What illumination and resolution does this probe provide?
This configuration uses white LED illumination rated at 40,000 Lux and a CMOS sensor with 1280 x 720-pixel resolution. Its depth of field extends from 15 mm to infinity.
