Description

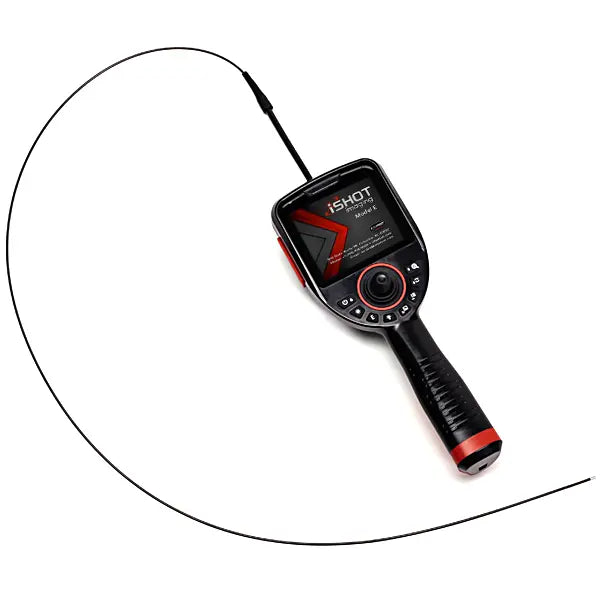

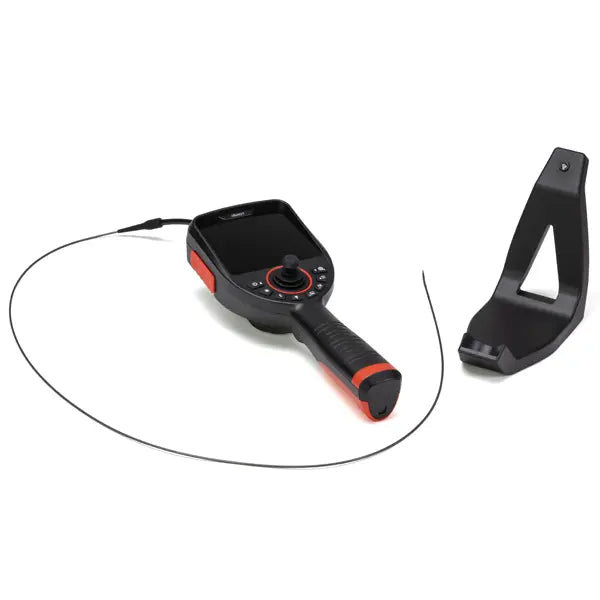

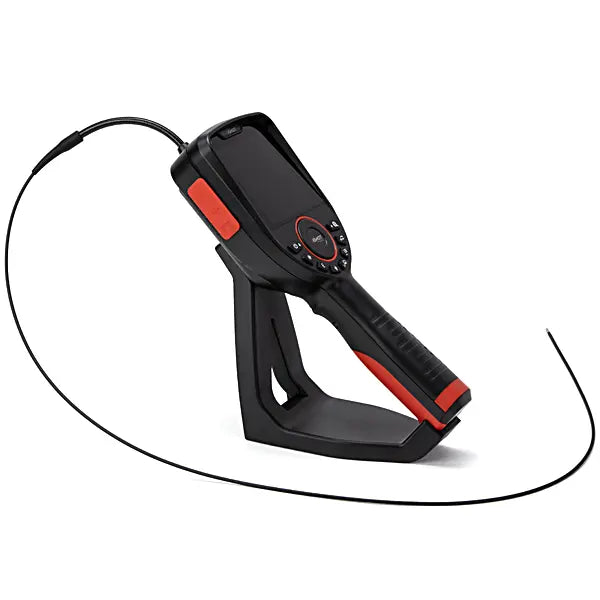

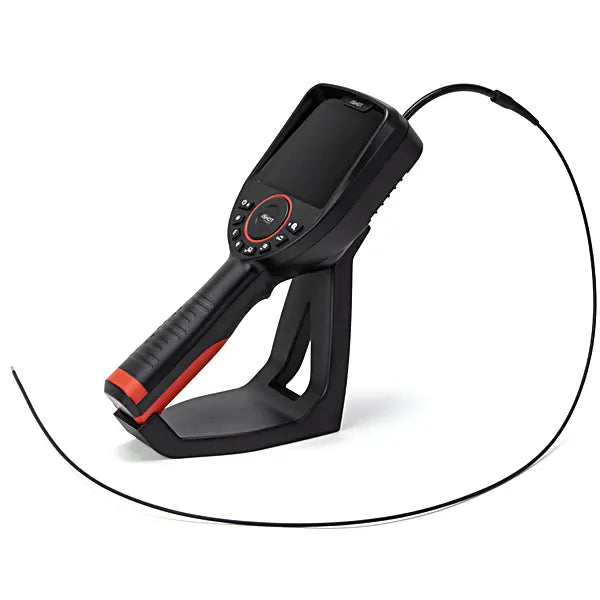

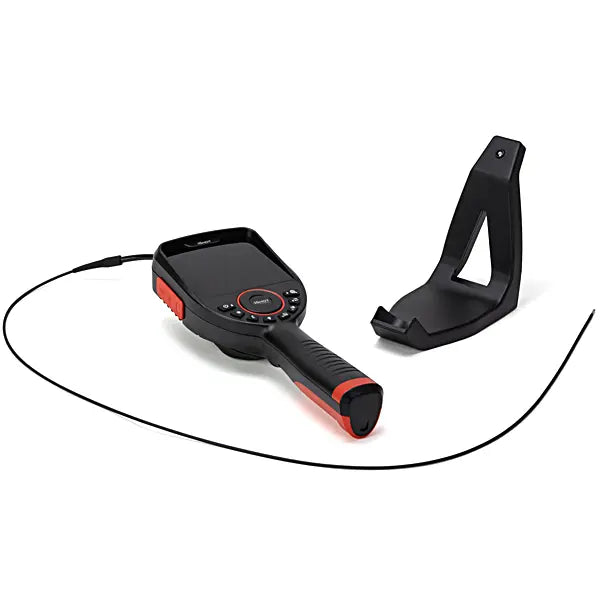

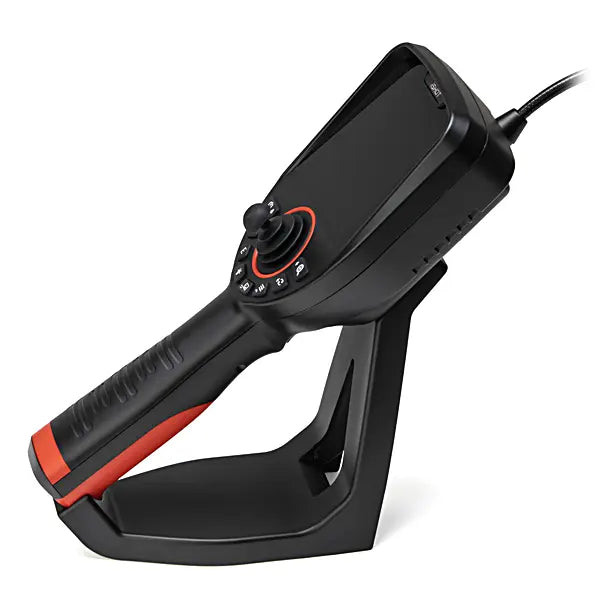

iShot® Model E 6.0 mm Video Borescope — Complete System
The iShot® Model E Complete System combines a 6.0 mm probe with a square-format handheld monitor for remote visual inspection on the shop floor and in the field. Tungsten-braided sheathing, direct image controls, and a quick-change probe interface support inspections of turbine blades, engine internals, pumps, tubing, and welds.
Key Features
- 6.0 mm probe diameter
- 1:1 image and screen aspect ratio without stretching to 4:3 or 16:9 formats
- 100° field of view and 5–120 mm depth of field
- White LED illumination up to 100,000 lux
- Tungsten braided mesh shaft
- Direct controls for exposure, sharpness, and brightness
- Negative, color, monochrome, and grid viewing effects

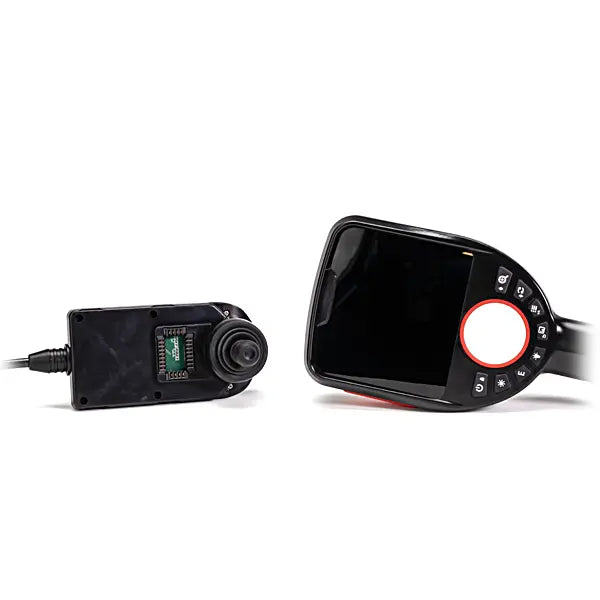

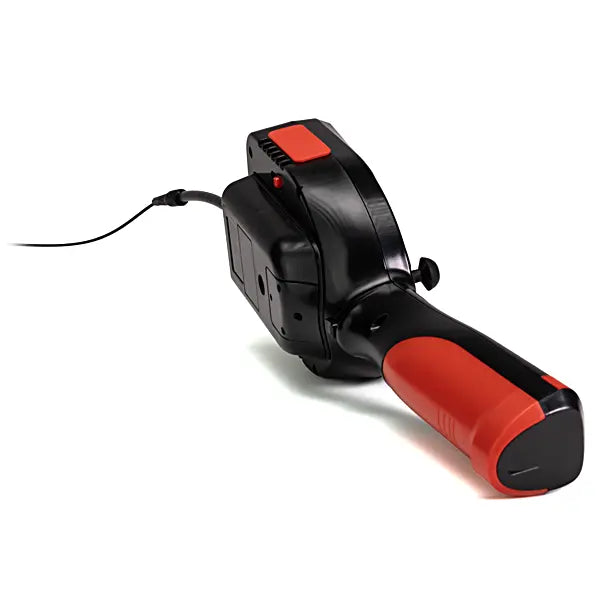

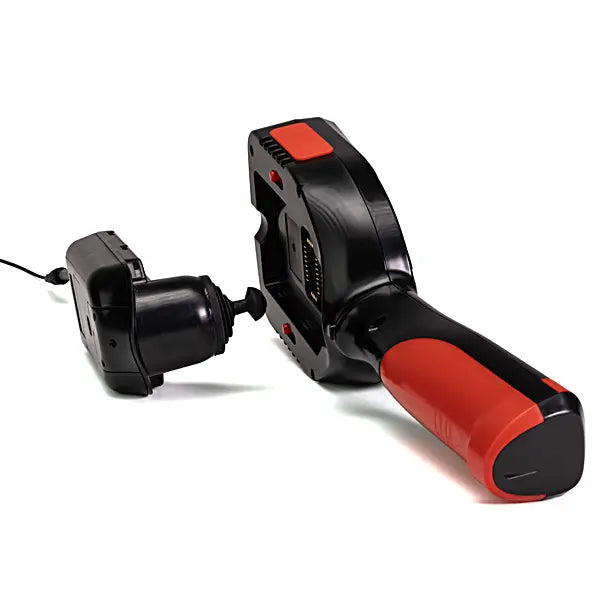

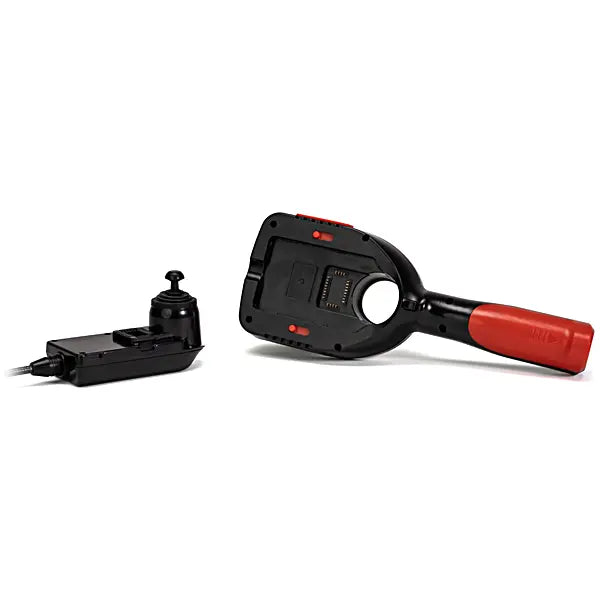

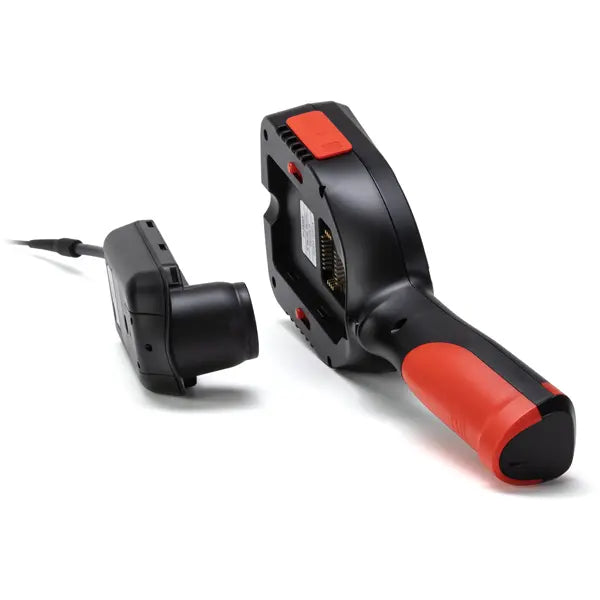

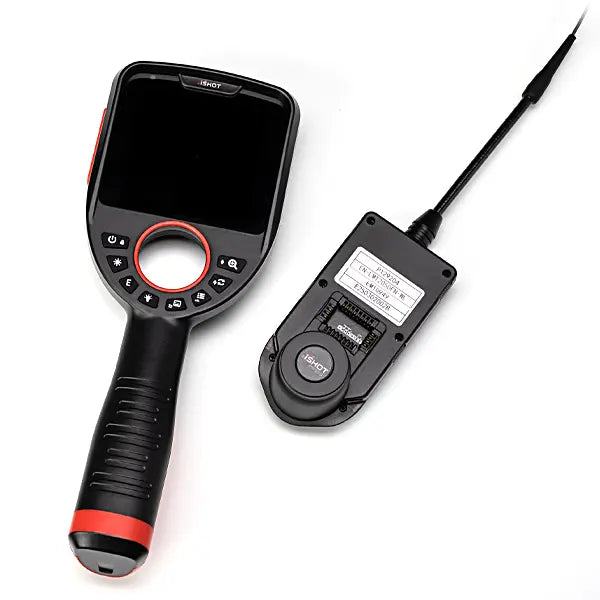

- Fast startup and quick probe changes

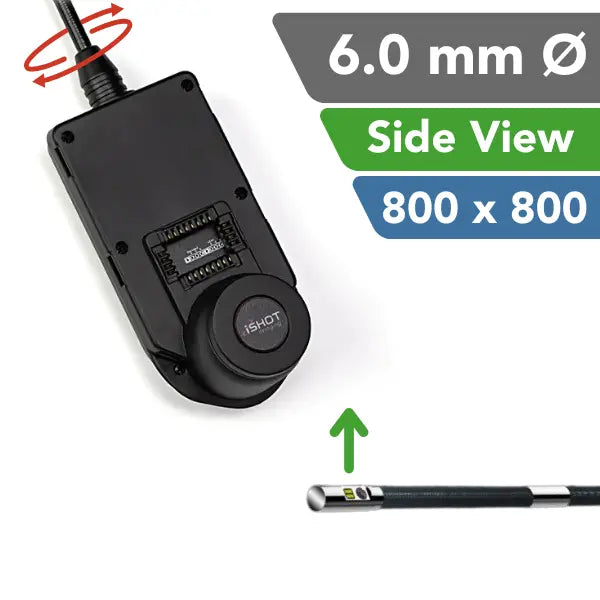

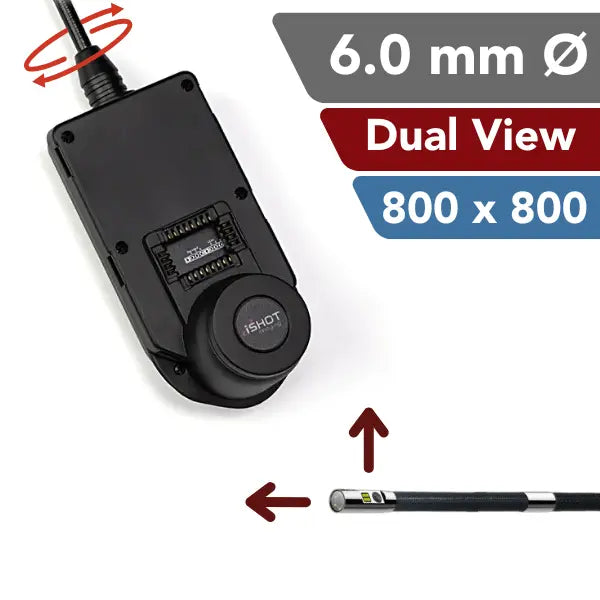

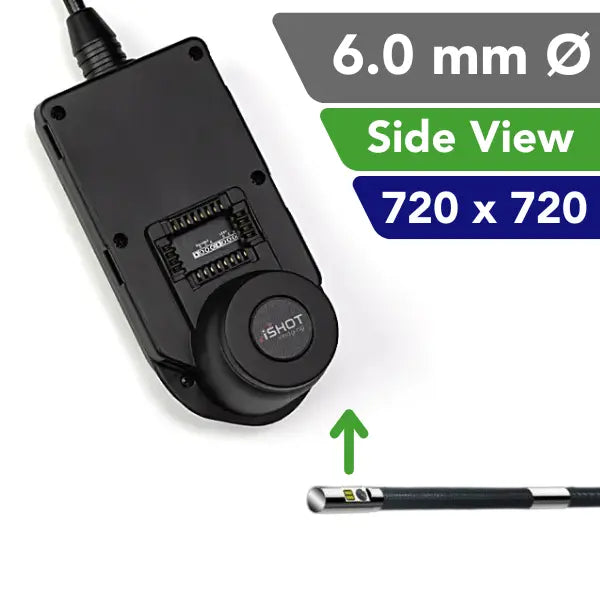

- Direction of view, articulation type, and resolution dependent on selection
Square-Format Viewing and Image Controls

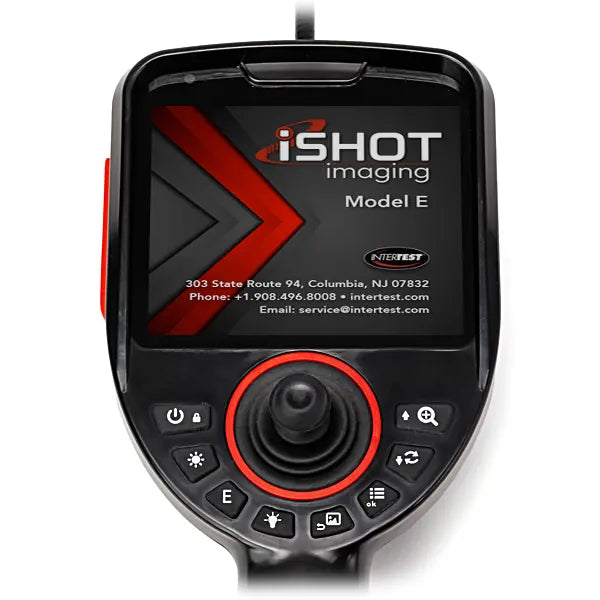

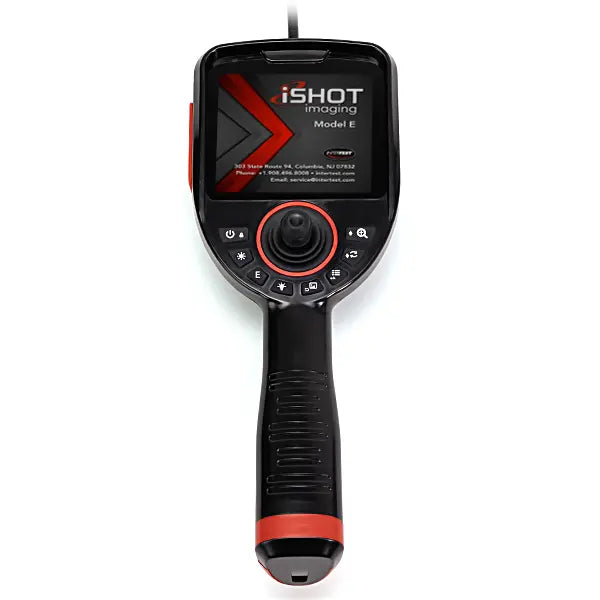

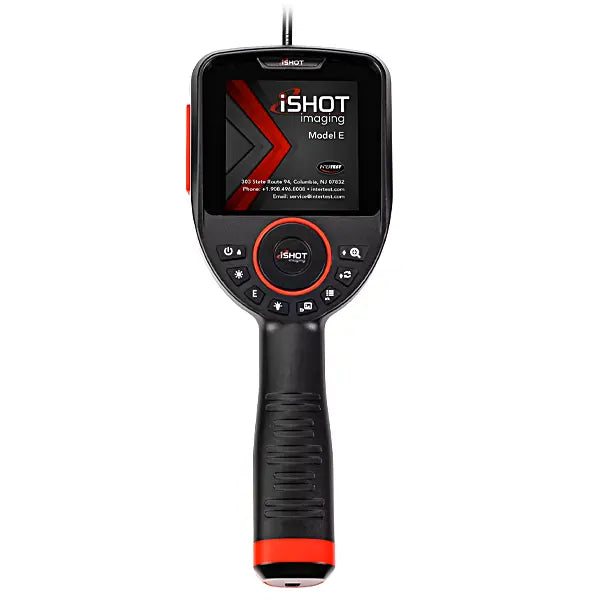

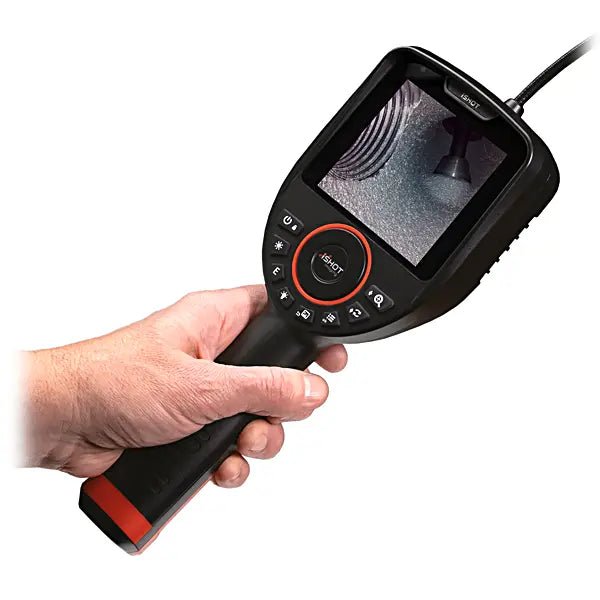

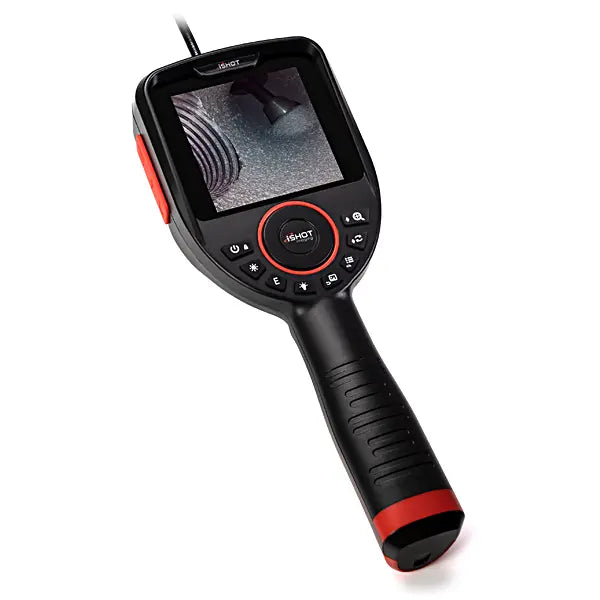

The Model E captures and displays images in a 1:1 aspect ratio on its 4″ × 4″ display. Preserving the square format avoids stretching images into wider display proportions.
Dedicated buttons allow exposure, sharpness, and brightness adjustments during inspection. Negative, color, monochrome, and grid effects offer additional ways to examine small features. The specified 5–120 mm depth of field supports near and mid-range viewing.

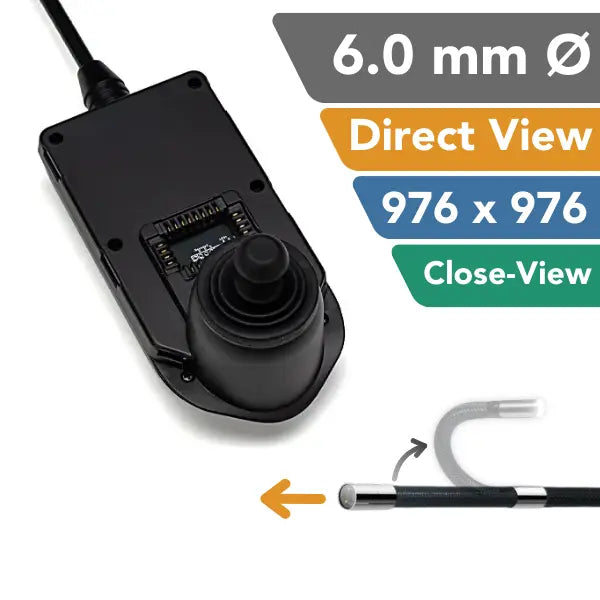

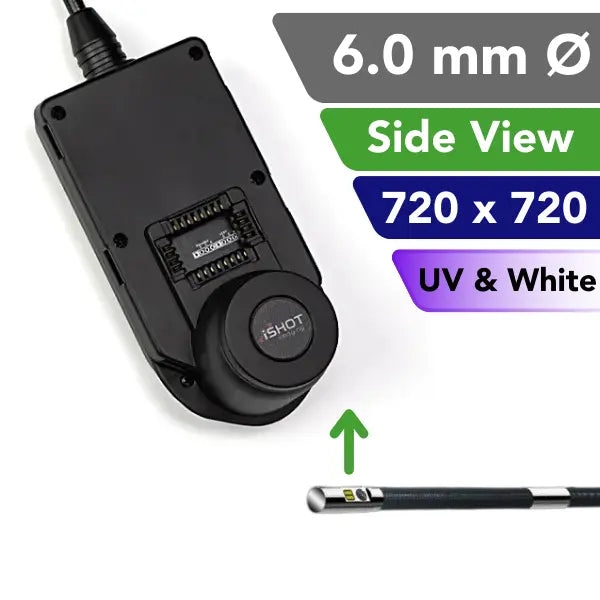

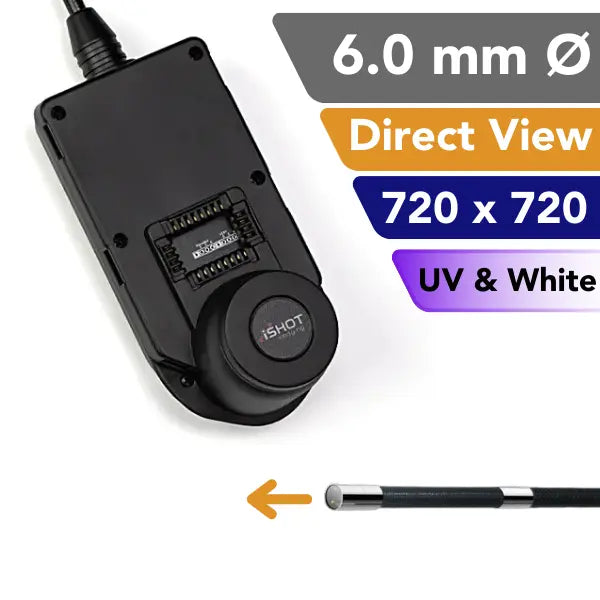

Probe Configuration Options

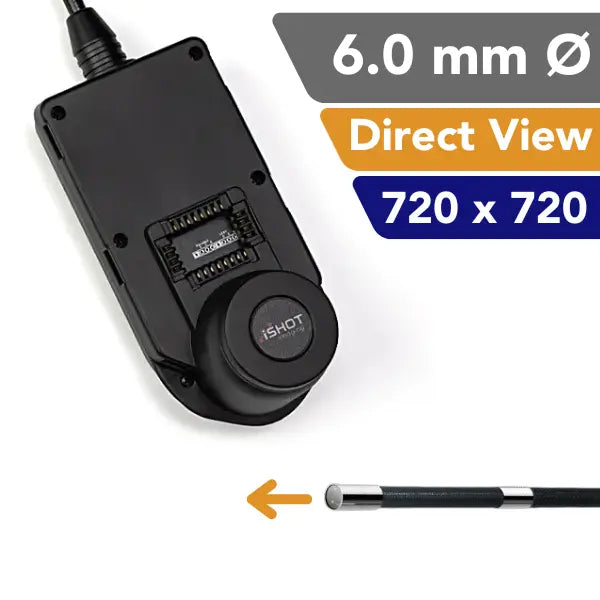

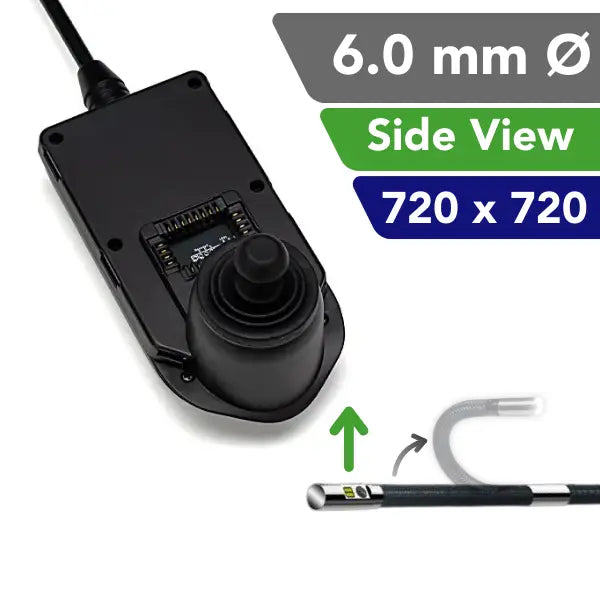

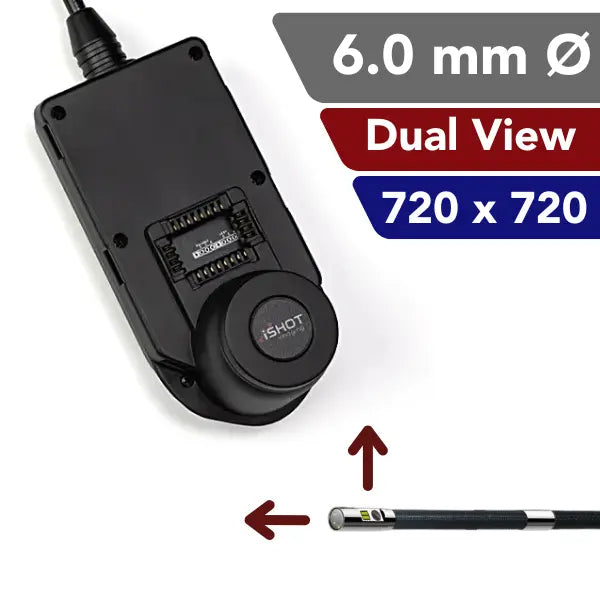

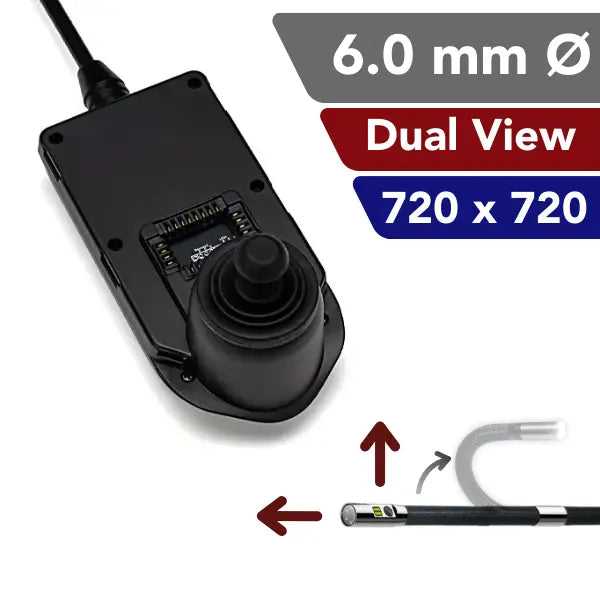

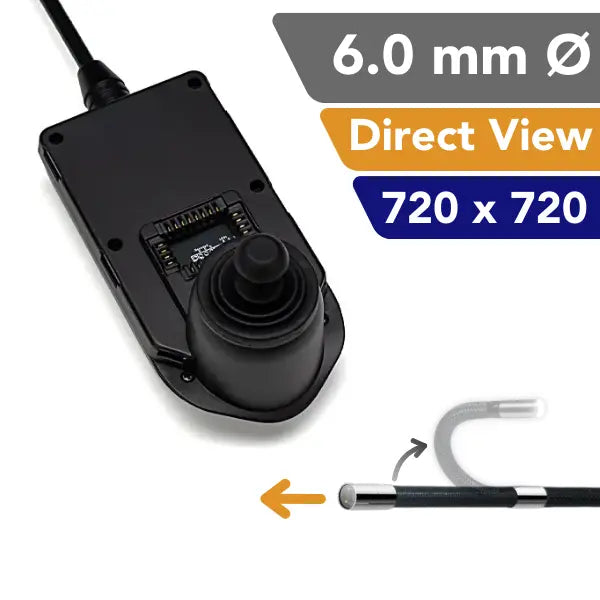

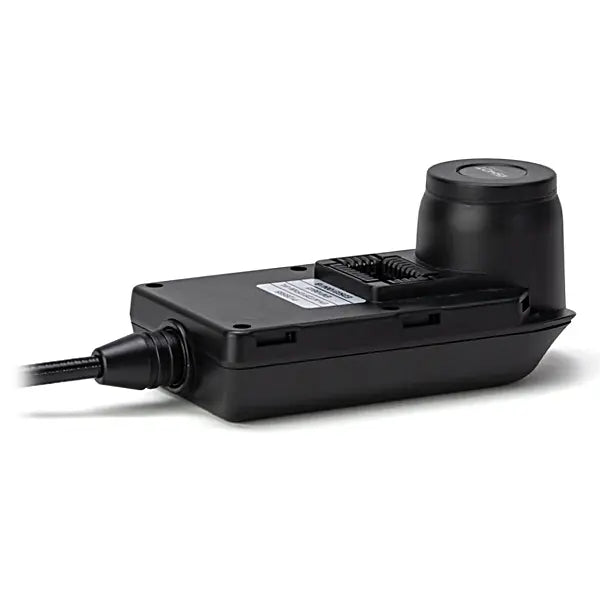

The supplied description identifies a dual-view configuration with direct 0° and side 90° perspectives, all-way manual articulation, and 720 × 720-pixel imaging. The specifications list direction of view, articulation type, and resolution as selection dependent; confirm these features for the configuration ordered.
What’s Included

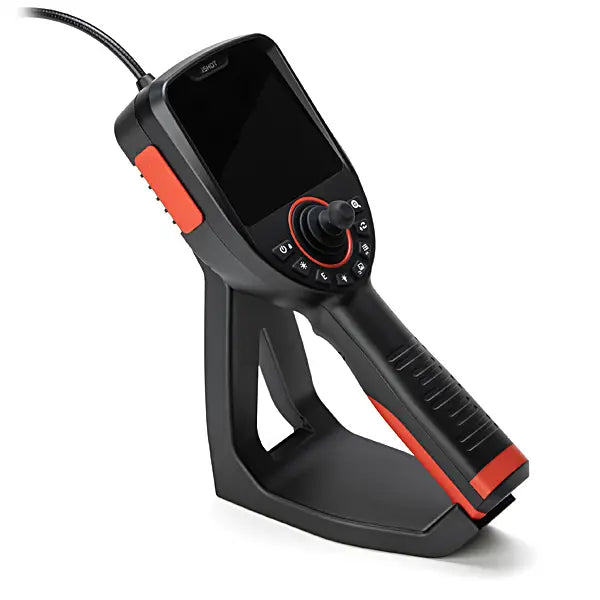

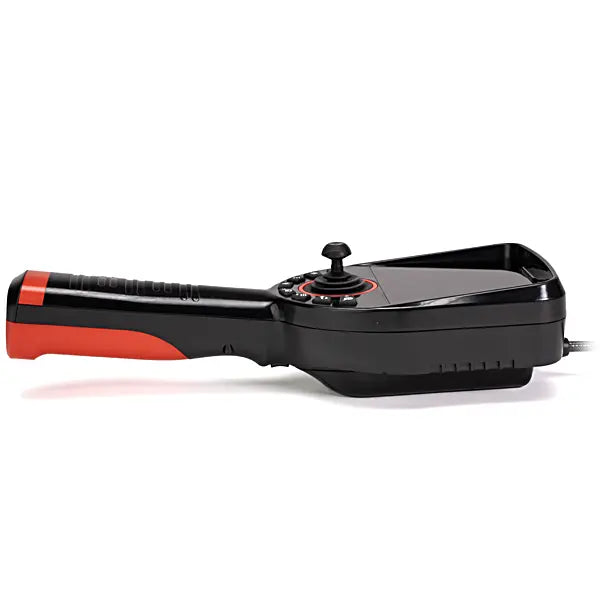

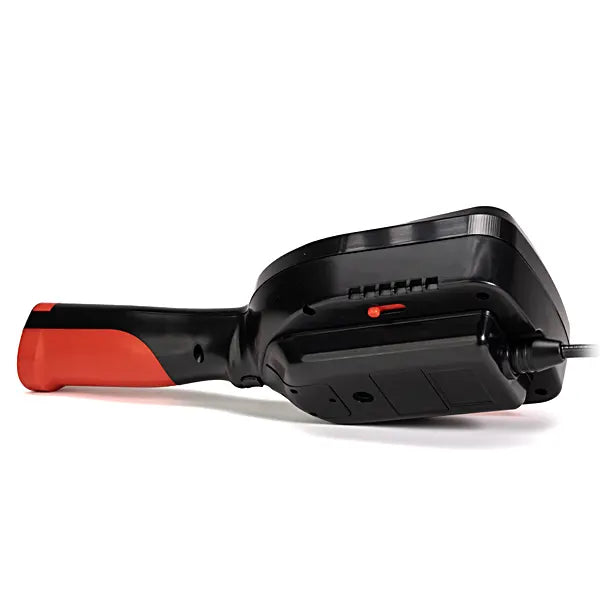

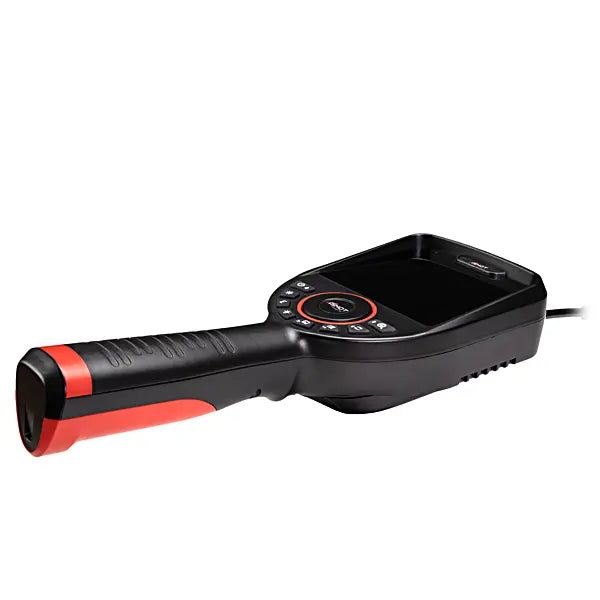

- Model-E handheld monitor (square 1:1 display)
- 6.0 mm dual-view probe (direct & side)
- System cabling, battery pack, and essentials
The included-item list describes a dual-view probe, while the specifications list direction of view as selection dependent. Confirm the included probe configuration when ordering.
Backed by Alabama Probe’s regional sales, training, and post-purchase support for teams across the Southeast.
Specifications
| Diameter | 6.0 mm | |
|---|---|---|
| Direction of View | Selection dependent | |
| Articulation Type | Selection dependent | |
| Field of View | 100° | |
| Depth of Field | 5–120 mm | |
| Illumination Type | White-light LEDs | |
| Illumination | Up to 100,000 lux | |
| Resolution | Selection dependent | |
| Battery Life | 8–9 hours | |
| Shaft Material | Tungsten braided mesh | |
| Image & Screen Aspect Ratio | 1:1 | |

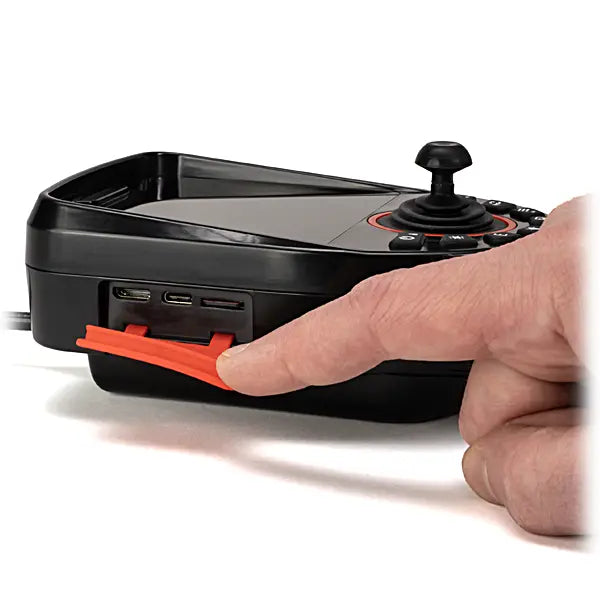

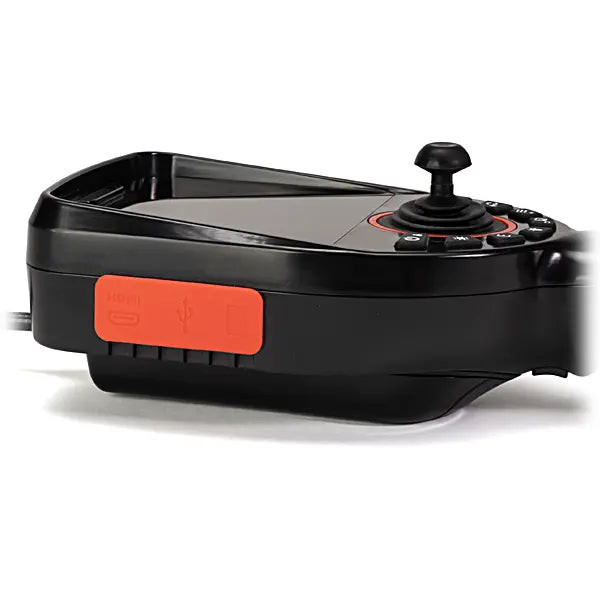

| Video Output | USB-C, HDMI | |
| Charging Port | USB-C |
Downloads
iShot® Imaging Model E Operation Manual
FAQ
Does this complete system include a monitor?
Yes. The included-item list specifies a Model-E handheld monitor, a 6.0 mm dual-view probe, and system cabling, battery pack, and essentials. Confirm the probe configuration when ordering.
Which specifications depend on the selected configuration?
Direction of view, articulation type, and resolution are selection dependent.
What field of view, depth of field, and battery life are specified?
The specifications list a 100° field of view, a 5–120 mm depth of field, and battery life of 8–9 hours.
