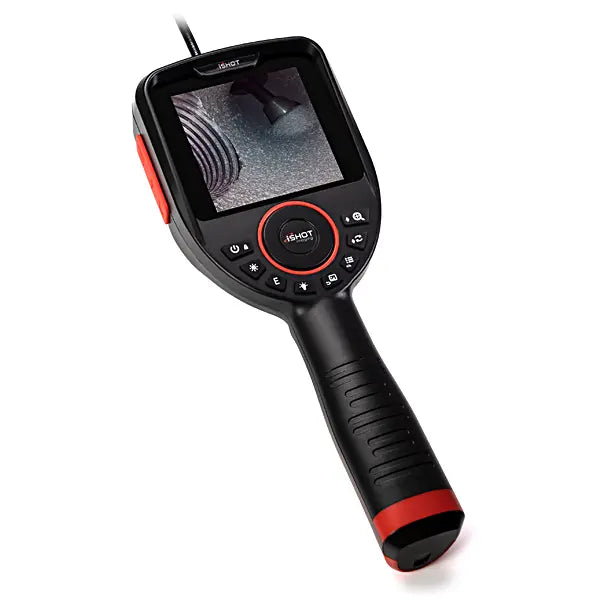

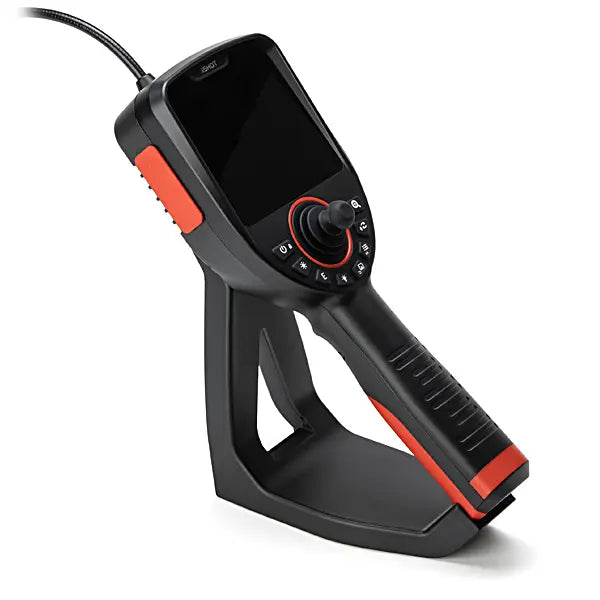

iShot® Model E Industrial Handheld Video Borescope — 2.2 mm Complete System
The iShot® Model E Complete System combines a square-format handheld monitor with a detachable probe for remote visual inspection on the shop floor and in the field. This 2.2 mm configuration provides white LED illumination, a 1–50 mm depth of field, and viewing options selected to suit the inspection task.
Key Features
- 1:1 image and screen aspect ratio without stretching to widescreen formats
- Direct controls for exposure, sharpness, and brightness
- Negative, color, monochrome, and grid viewing effects
- 1–50 mm depth of field with near focus to approximately 1 mm
- Fast startup and quick-change probe interface
- Tungsten-braided insertion shaft
- Direction of view, field of view, and resolution by selection
Industrial Inspection Applications
Applications include turbine blade castings, engine blocks and heads, pumps, valves, housings, metal tubing, and welded assemblies. The Model E supports remote visual inspection across aviation, automotive, utilities, and manufacturing.

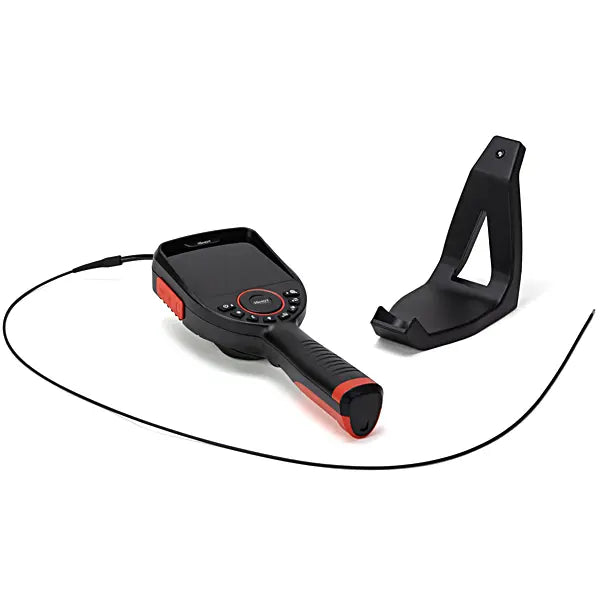

What’s Included

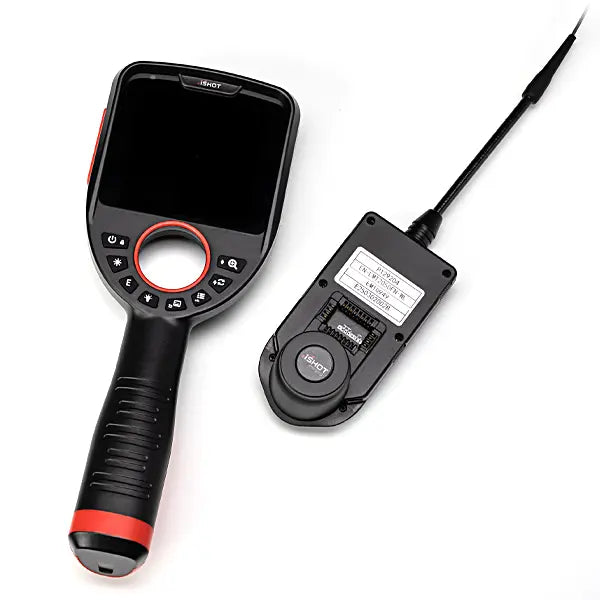

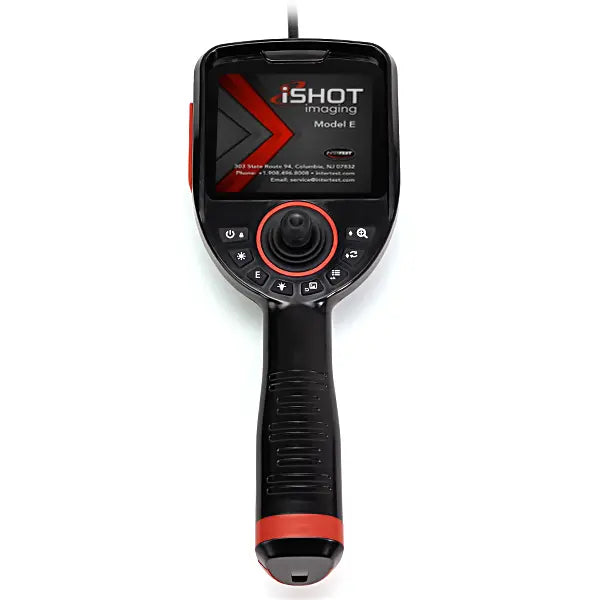

- Model-E handheld monitor (square 1:1 display)

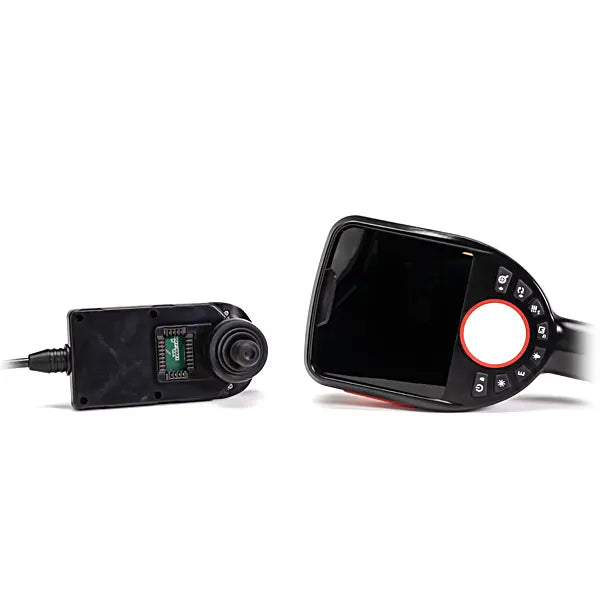

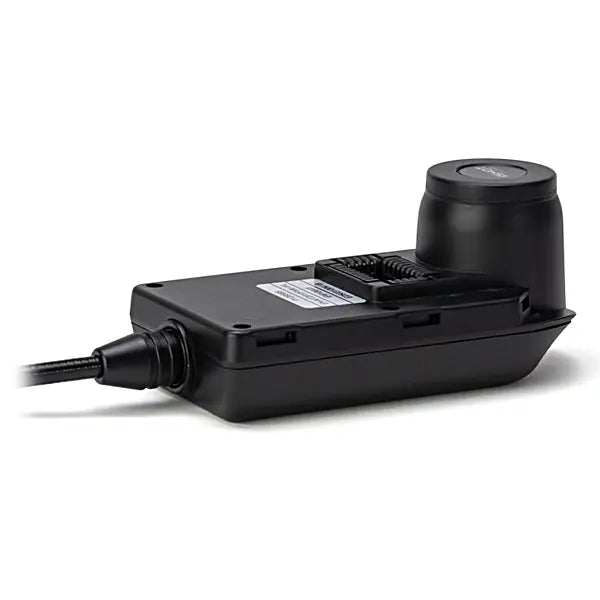

- Detachable probe (diameter/length/DOV by selection)
- System cabling and essentials

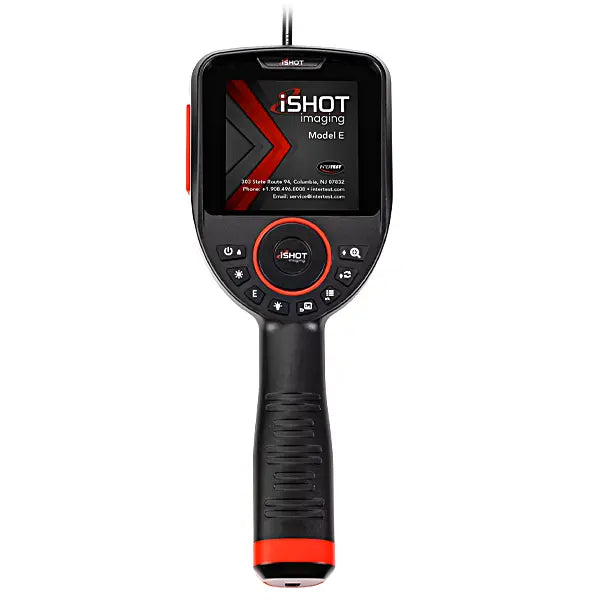

Square-Format Viewing

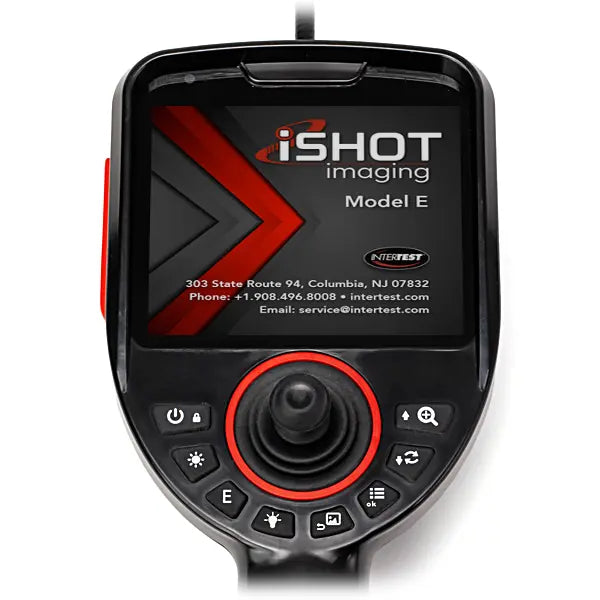

The Model E captures and displays images in a 1:1 aspect ratio rather than stretching them into 4:3 or 16:9 formats. Its 4" × 4" viewing display supports examination of internal features in components and assemblies.

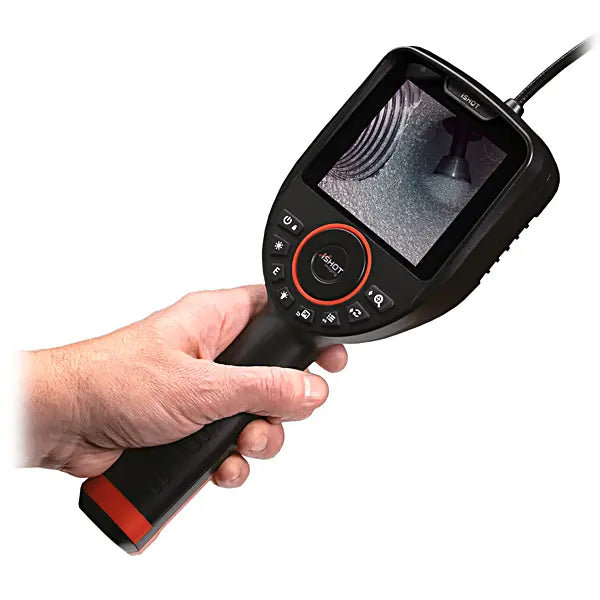

Image Controls and Close Focus

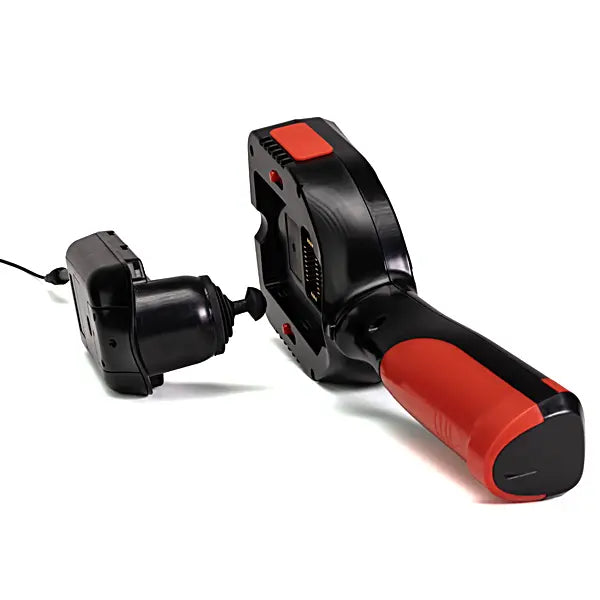

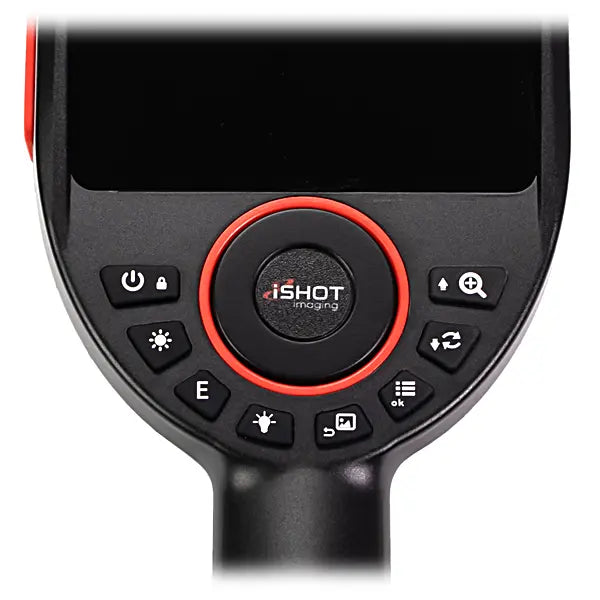

Dedicated front-panel controls allow exposure, sharpness, and brightness adjustments during inspection. Negative, color, monochrome, and grid effects provide additional ways to examine small features. Fast startup and a quick-change probe interface support transitions between inspection tasks.
A 1–50 mm depth of field supports near and mid-range viewing, including close-focus inspection at approximately 1 mm.

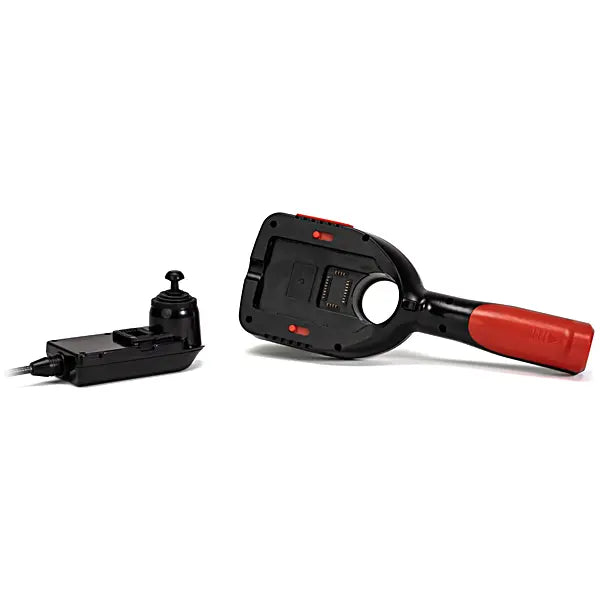

Model E Probe Platform

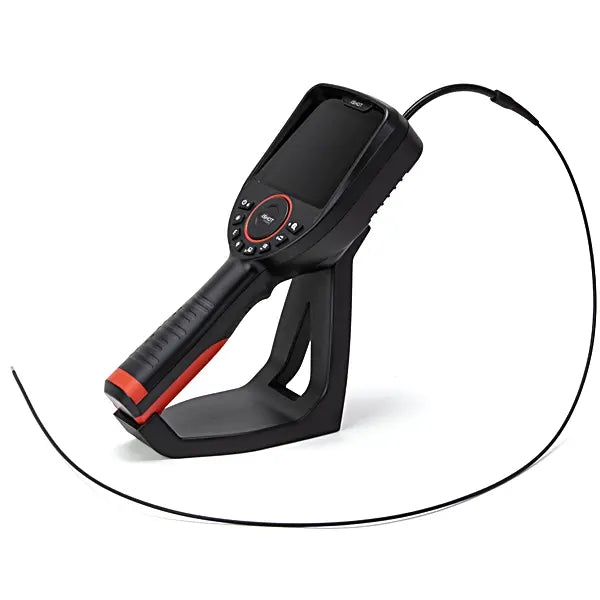

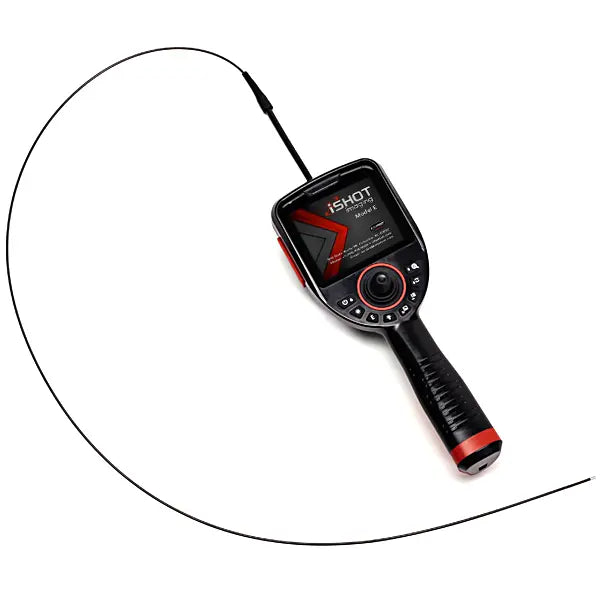

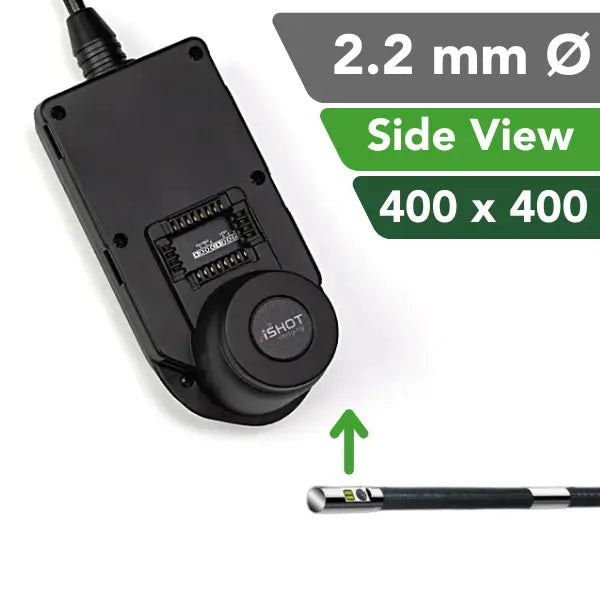

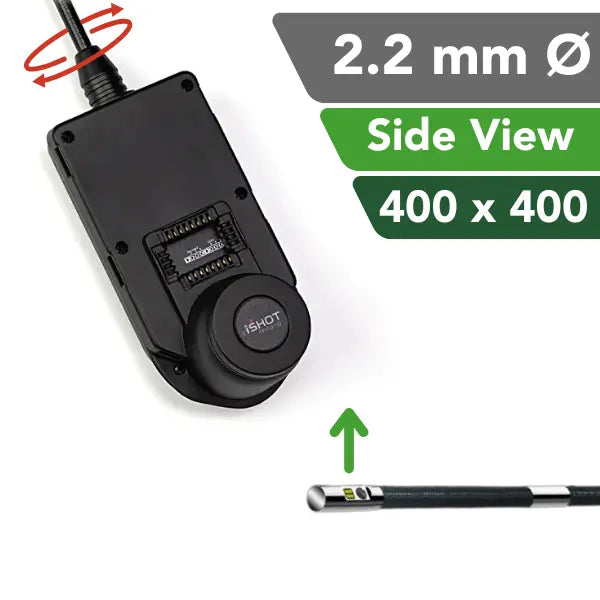

Across the Model E platform, probe options span approximately 1.2–6 mm in diameter and 1–10 m in length, with direct, side, and dual directions of view. Tungsten-braid sheathing provides a durable insertion shaft. This listing specifies a 2.2 mm probe, with viewing and resolution options by selection.
Backed by Alabama Probe’s regional sales, training, and post-purchase support for teams across the Southeast.
Specifications
| Diameter | 2.2 mm | |
|---|---|---|
| Direction of View | Side, Direct, or Dual (by selection) | |
| Field of View | 120 - 140° (by selection) | |
| Depth of Field | 1–50 mm | |
| Illumination Type | White-light LEDs | |
| Illumination | 3,000 lux | |
| Resolution | (by selection) | |
| Battery Life | 8–9 hours | |
| Shaft Material | Tungsten braided mesh | |
| Image & Screen Aspect Ratio | 1:1 | |

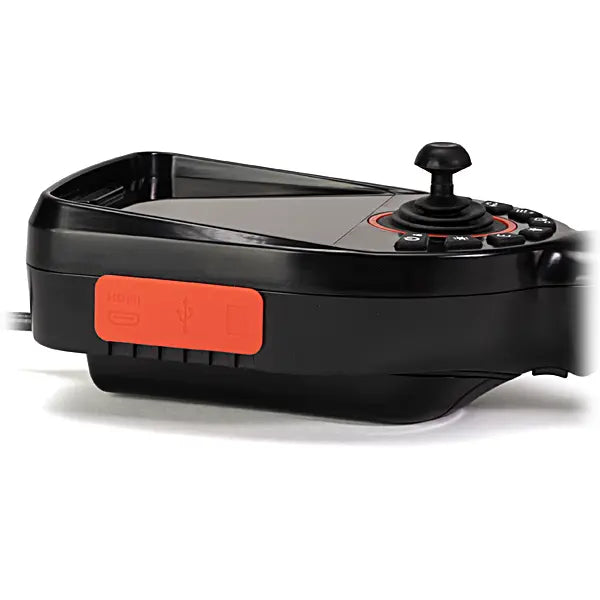

| Video Output | USB-C, HDMI | |
| Charging Port | USB-C |
Downloads
FAQ
Does this complete system include a monitor?
Yes. It includes a Model-E handheld monitor, a detachable probe by selection, and system cabling and essentials.
Which viewing options are listed?
The specifications list side, direct, or dual direction of view, with a 120 - 140° field of view by selection. Resolution is also by selection.
What depth of field and battery life are specified?
The specified depth of field is 1–50 mm, and the stated battery life is 8–9 hours.
