Weld-i® EDU HDMI Weld Vision Camera Kit
Give instructors and students a shared view of live welding with the Weld-i® EDU HDMI Weld Vision Camera Kit. This compact system keeps the weld puddle, electrode, and base material visible for observation and discussion in classrooms, labs, and training facilities.
The camera connects directly to an HDMI display without requiring a PC. Full HD monochrome imaging, arc-bypass processing, and IR illumination help maintain visibility despite arc brightness and glare. Integration with video capture devices enables recording for playback and instructional review.
Key Features
- 1920 x 1080-pixel monochrome imaging at 60 fps
- Direct HDMI display connection with no PC required
- Integrated arc-bypass processing and IR illumination
- Single optimized operating mode for MMA (stick), GTAW (TIG), GMAW (MIG), and FCAW
- Included 25 mm and 42 mm lenses
- 10-meter power and fiber-optic cables
- Replaceable protective lens covers
- Supports external video capture devices for recording and review
Welding Education and Process Review
Instructors and students can observe the same weld in real time to discuss technique, weld puddle behavior, and arc stability. The system supports MMA, GTAW, GMAW, and FCAW across aluminum, stainless steel, and carbon steel. Recordings made with a connected video capture device can be revisited after the live demonstration.
Lens Options and Camera Positioning
The built-in 25 mm lens supports working distances of 160–250 mm, while the interchangeable 42 mm lens supports 200–450 mm. Replaceable lens covers help maintain image clarity. The kit includes an adjustable mounting arm, crab-claw clamp, and non-conductive mounting post for camera setup.
Cabling and Operating Conditions
The supplied 10-meter power and fiber-optic cables are designed to resist electromagnetic interference and high-frequency noise in welding environments. Their length allows the display and operator to be positioned away from the immediate welding area.
The camera is rated for operating temperatures from -40° to 85°C. A lithium battery, HDMI wireless transmitter, and copper heat sink are described as options for standalone operation, wireless transmission, and higher-temperature applications.
The lithium battery, wireless transmitter, and copper heat sink are listed as not yet available.
Alabama Probe provides regional sales assistance for welding education and training teams across the Southeast.

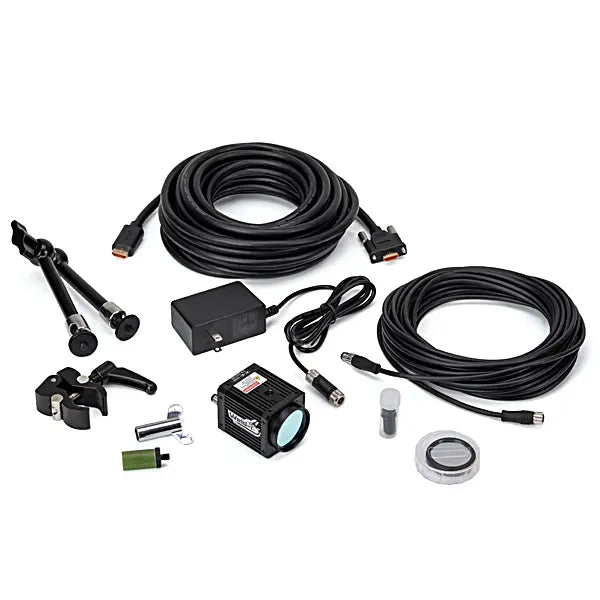

Items Included

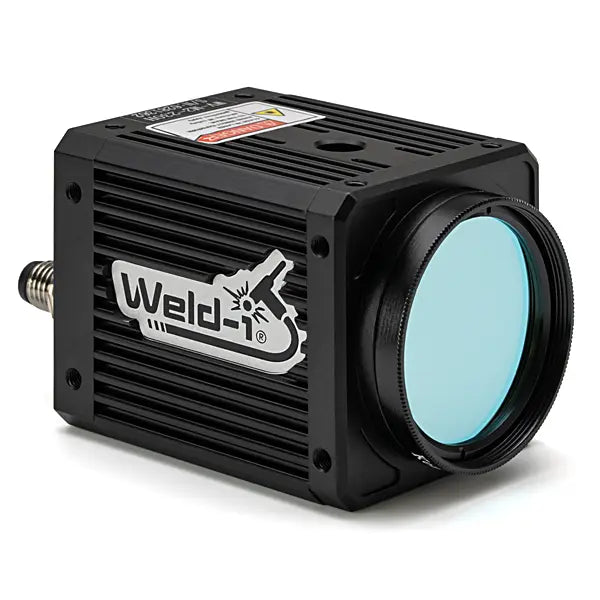

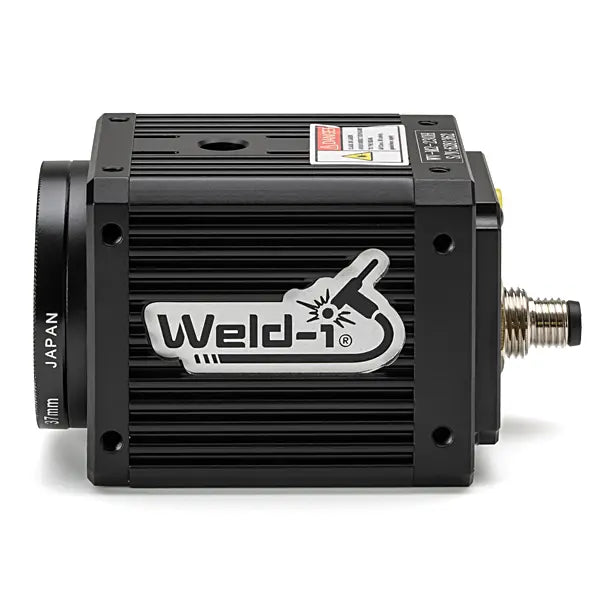

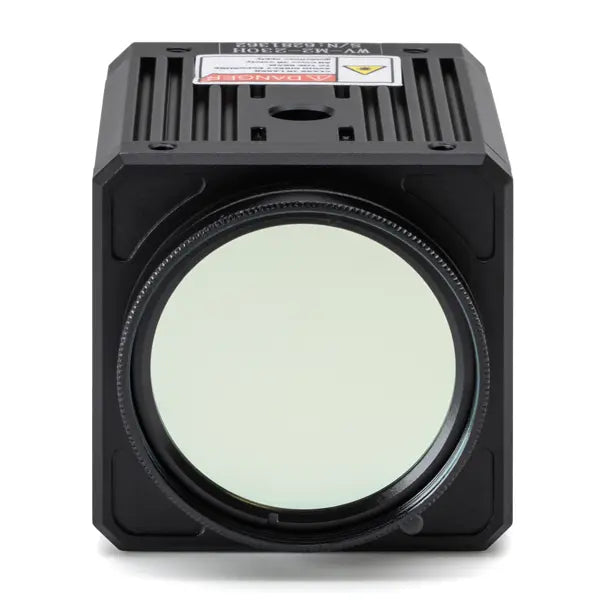

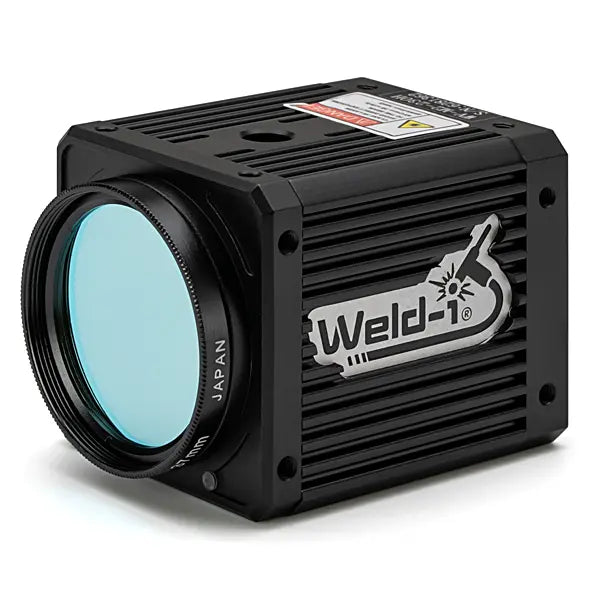

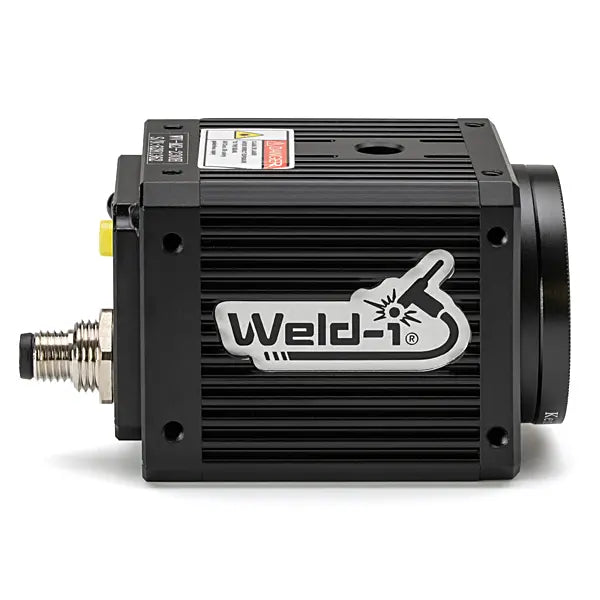

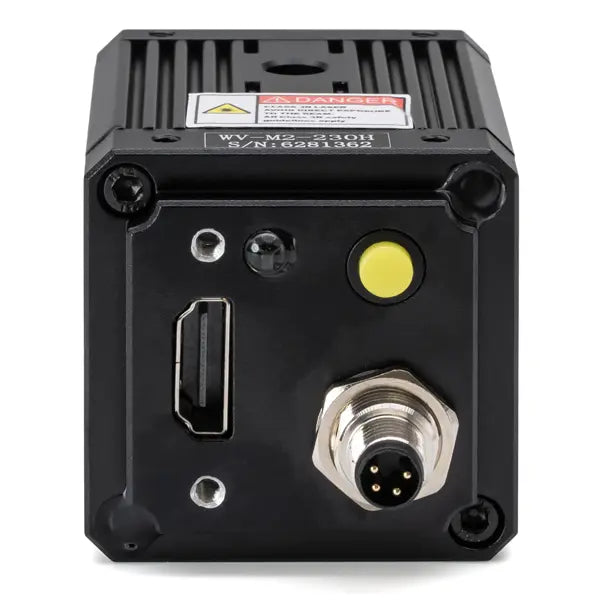

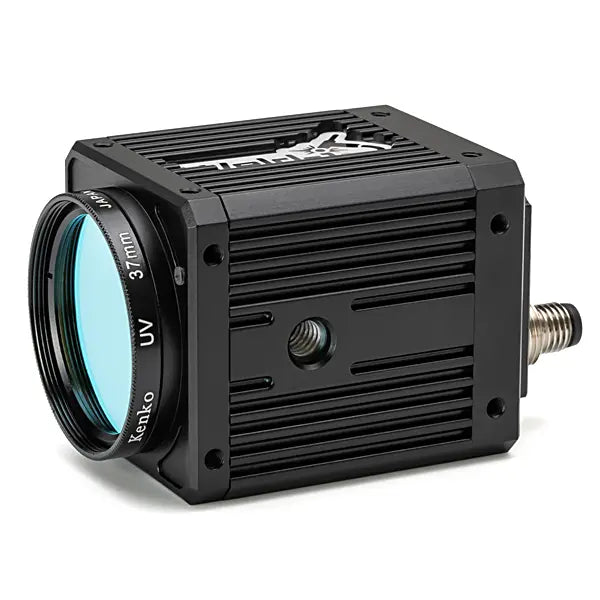

| EM12261 | Weld-i® EDU HDMI Weld Vision Camera Head | |
|---|---|---|
| EM12262 | Weld-i® EDU HDMI Cable - 10 meter | |
| EM12263 | Weld-i® EDU Power Extension Cable - 10 meter | |
| EM12264 | Weld-i® EDU Weld Vision Protective Lens | |
| EM12265 | Weld-i® EDU Weld Vision Power Supply | |
| EM12266 | Weld-i® EDU Weld Vision Adjustable Mounting Arm | |
| EM12267 | Weld-i® EDU Weld Vision Crab-Claw Clamp | |

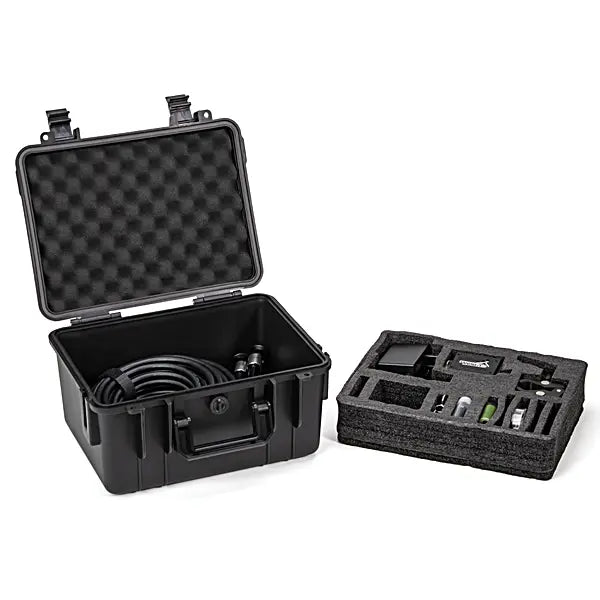

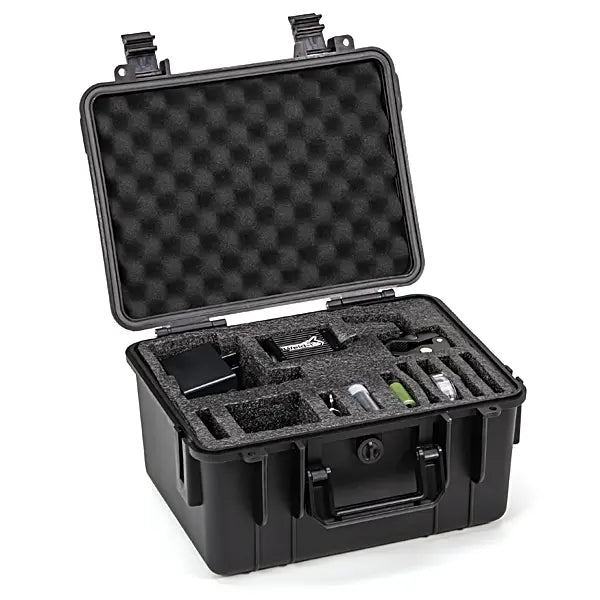

| EM12268 | Weld-i® EDU Weld Vision Rugged Case | |
| EM12269 | Weld-i® EDU Weld Vision Lens Adjustment Wrench | |
| EM12270 | Weld-i® EDU Weld Vision 25mm Camera Lens | |
| EM12271 | Weld-i® EDU Weld Vision 42mm Camera Lens | |
| EM12272 | Weld-i® EDU Weld Vision Non-Conductive Mounting Post |
Specifications
| Sensor Type | B&W 1/3" CMOS sensor | |
|---|---|---|
| Max Resolution | 1920 x 1080 px (2.0 MP total) | |
| Frame Rate | 60 fps | |
| Protocol | HDMI Output | |
| Operating System/Software | No PC required | |
| Lens | 25 mm (Built-in) 42 mm (Interchangeable) |
|
| Working Distance | 6.30" – 9.84" (160–250 mm, 25 mm lens) 7.87" – 17.7" (200–450 mm, 42 mm lens) |
|
| Working Temperature | -40° to 85°C | |
| Dimensions | 1.77" x 1.77" x 2.57" (45 x 45 x 65.2 mm) |
FAQ
Does this kit require a computer for live viewing?
No. The camera connects directly to an HDMI display for live viewing without a PC.
Can welding demonstrations be recorded?
Yes. The system supports integration with video capture devices for recording, playback, and review.
Which welding processes does the camera support?
It supports MMA (stick), GTAW (TIG), GMAW (MIG), and FCAW across aluminum, stainless steel, and carbon steel.
