Description

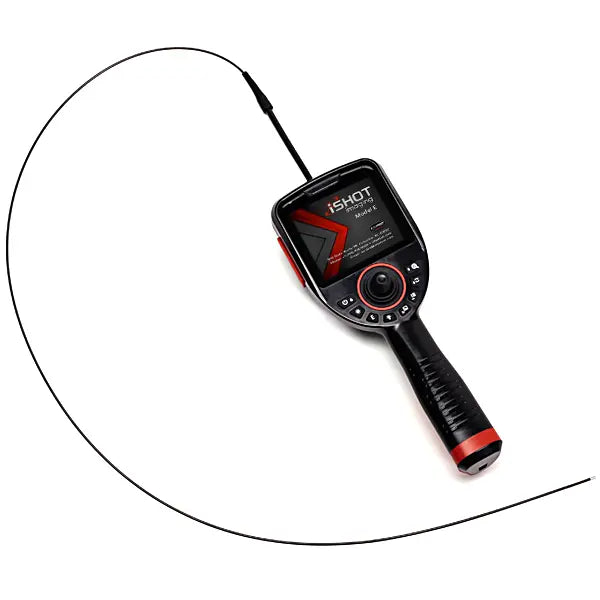

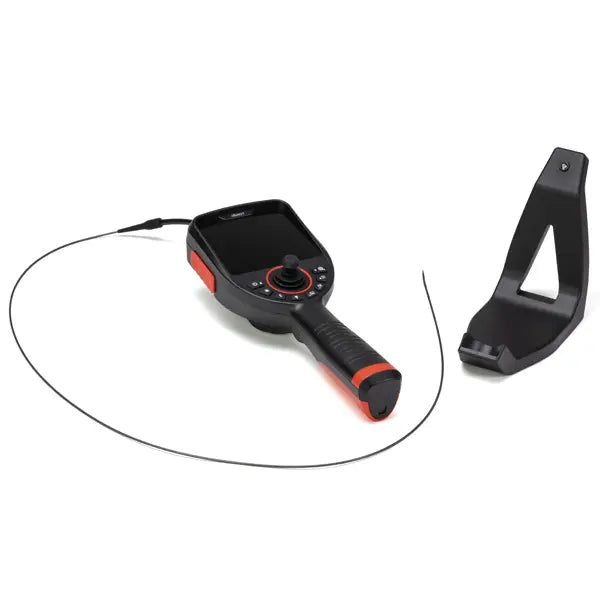

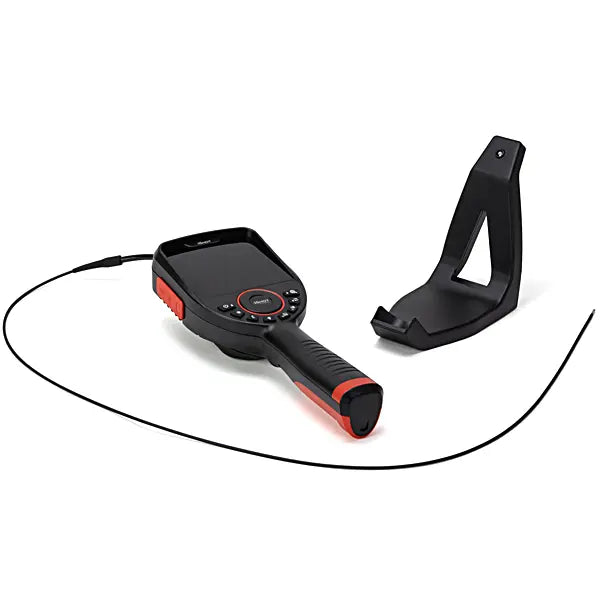

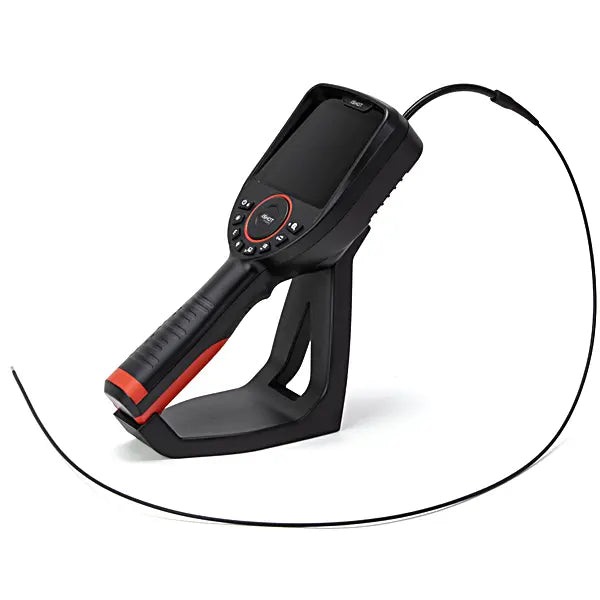

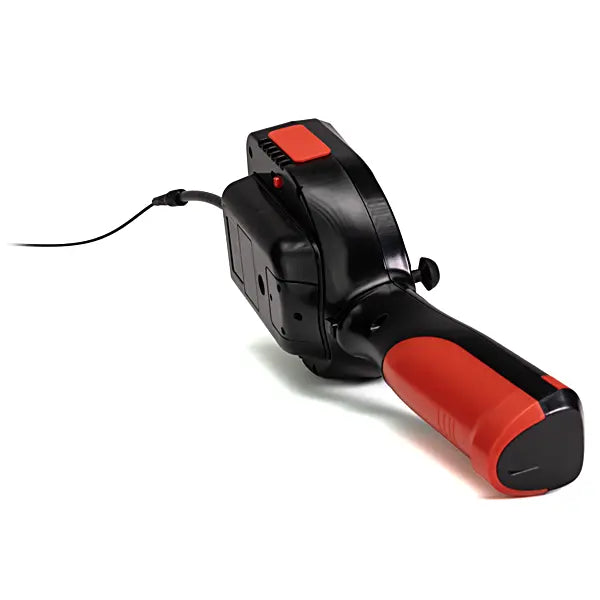

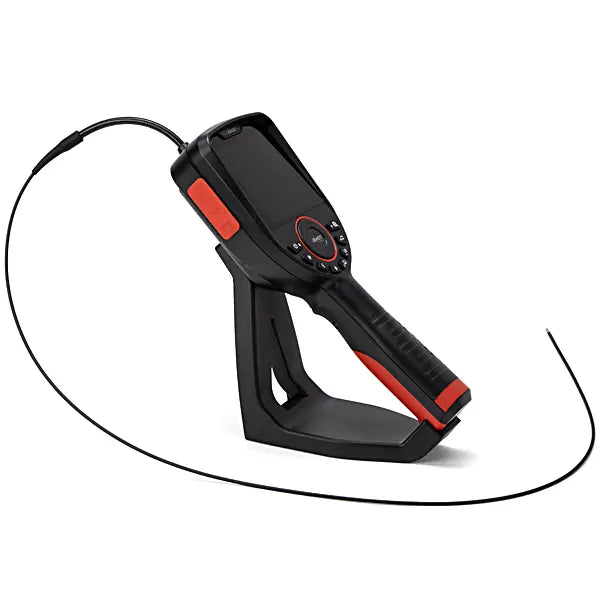

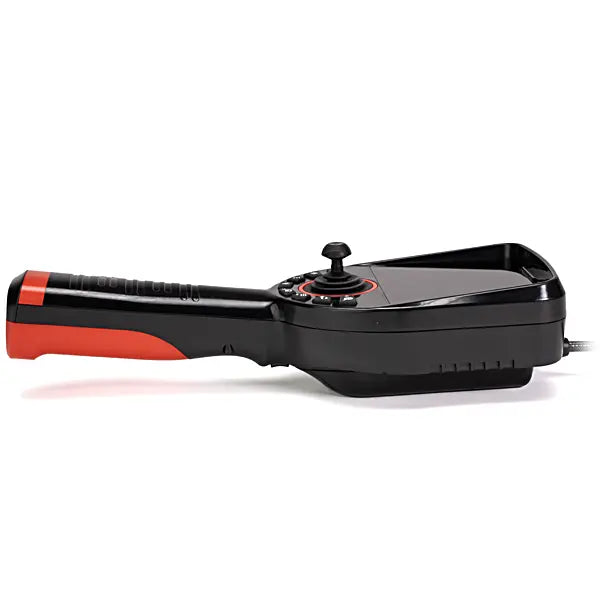

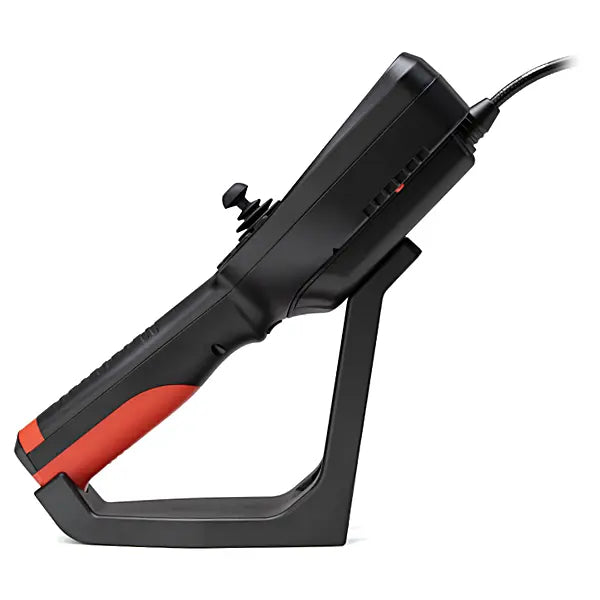

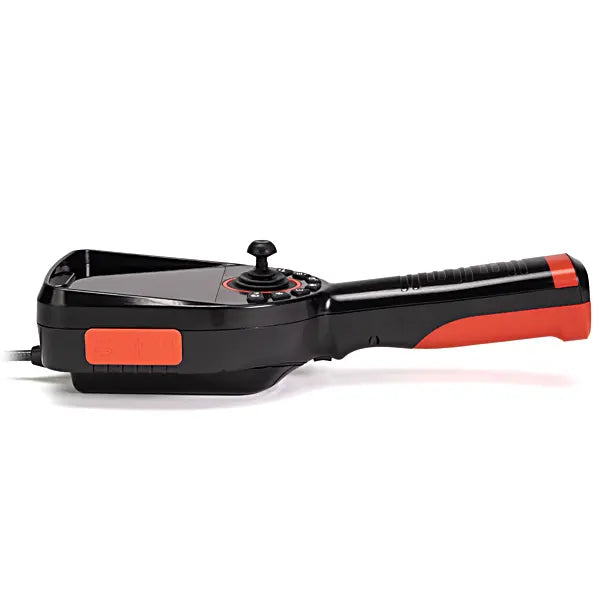

iShot® Model E 2.8 mm Video Borescope — Complete System
The iShot® Model E Complete System pairs a 2.8 mm probe with a square-format handheld monitor for remote visual inspection on the shop floor and in the field. Tungsten-braided sheathing, direct image controls, and a quick-change probe interface support inspection of internal components and difficult-to-access areas.
Key Features
- 1:1 image and screen aspect ratio without stretching to 4:3 or 16:9 formats
- 2.8 mm probe diameter
- Direction of view, articulation type, field of view, and resolution dependent on selection
- 5–120 mm depth of field
- White LED illumination up to 100,000 lux
- Tungsten braided mesh shaft

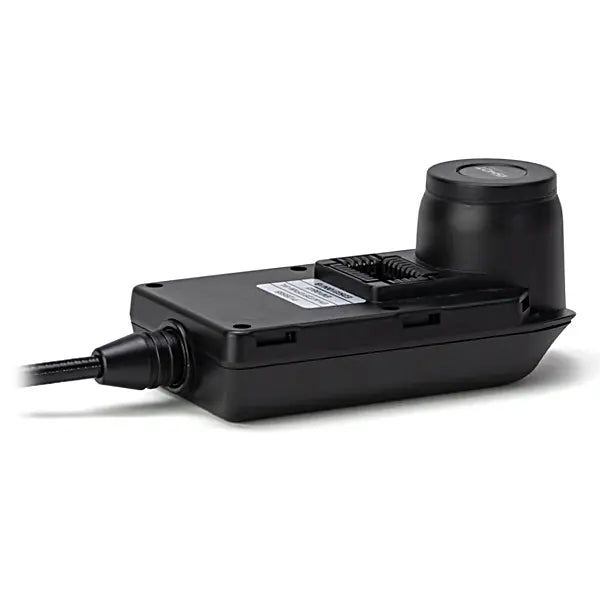

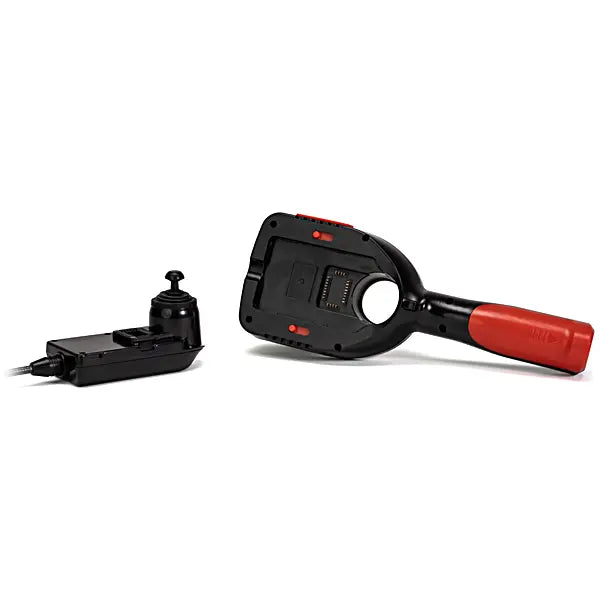

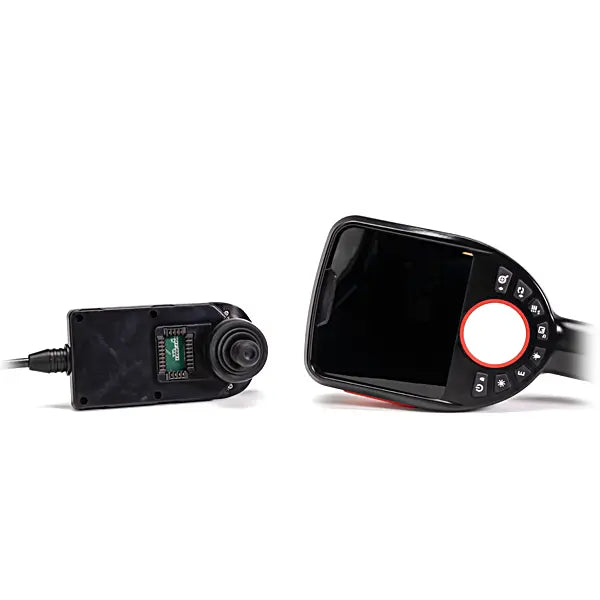

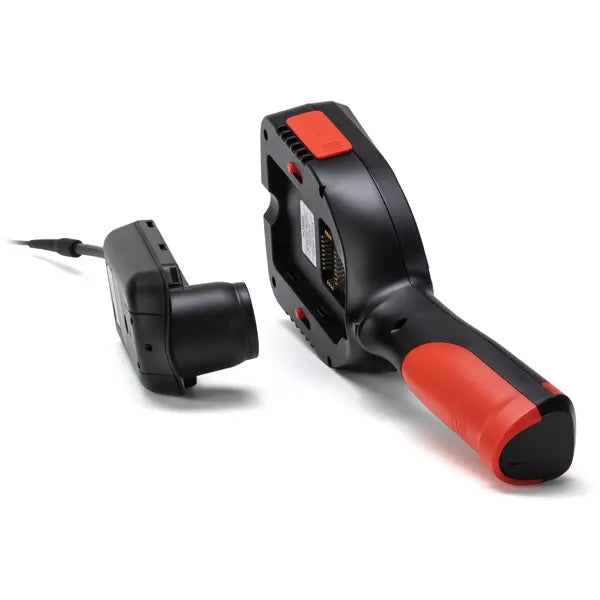

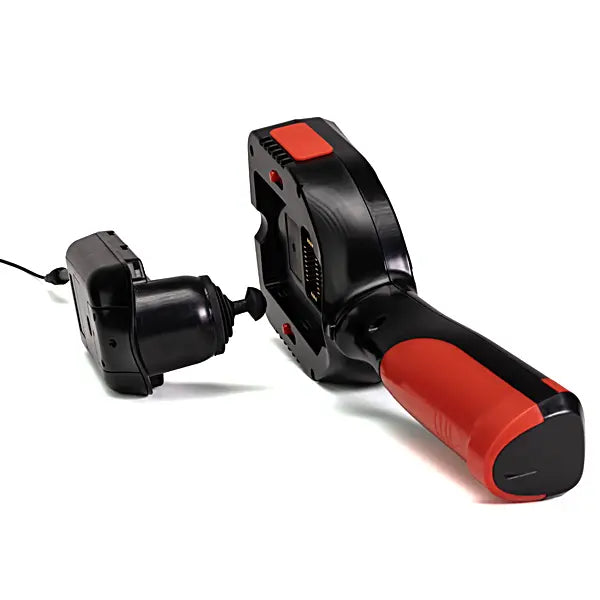

- Fast startup, quick probe changes, and front-panel image controls
Square-Format Viewing

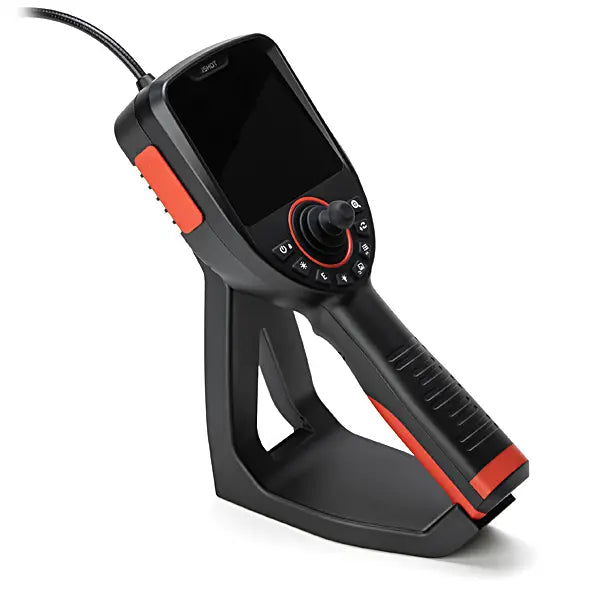

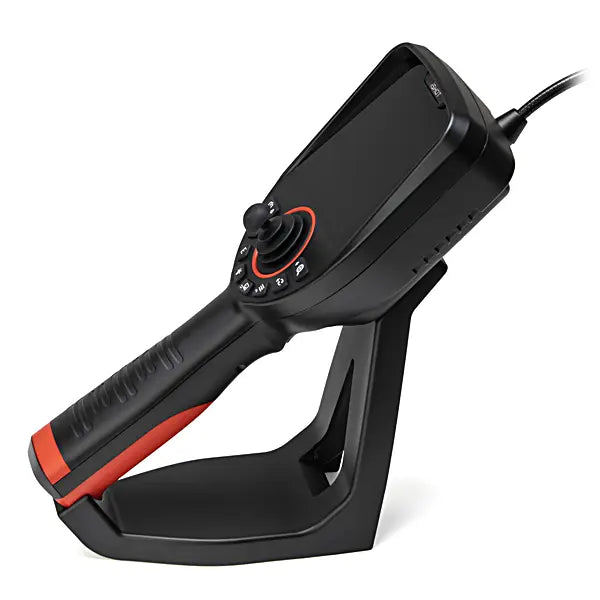

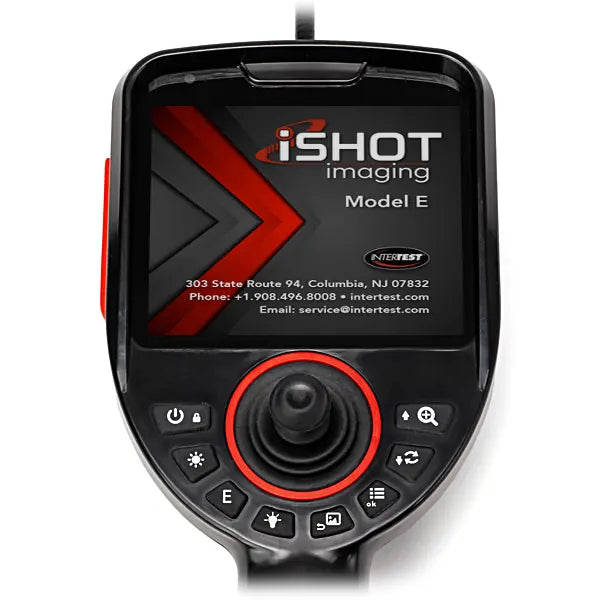

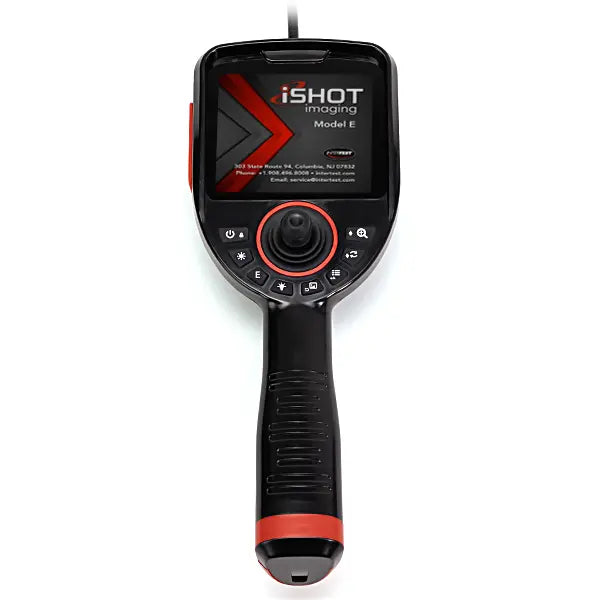

The Model E captures and displays images in a 1:1 aspect ratio on its 4″ × 4″ display. This preserves the square image format without stretching it into wider display proportions when examining turbine blades, engine internals, pumps, tubing, and welds.
Image Controls and Depth of Field
Dedicated buttons adjust exposure, sharpness, and brightness during inspection. Negative, color, monochrome, and grid effects provide additional ways to examine features. Fast startup and quick probe changes support transitions between tasks.
The specified depth of field is 5–120 mm. White-light LEDs provide illumination up to 100,000 lux for viewing internal details.

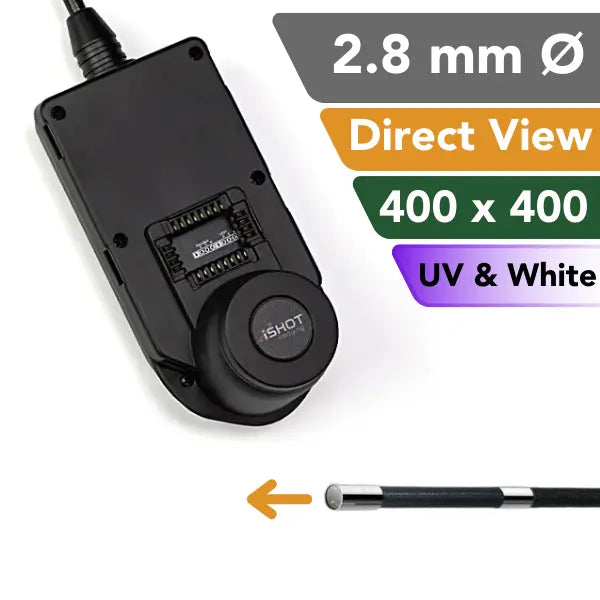

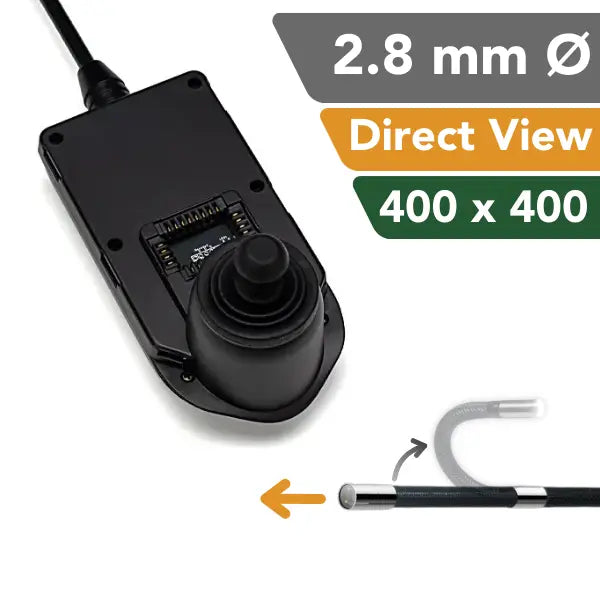

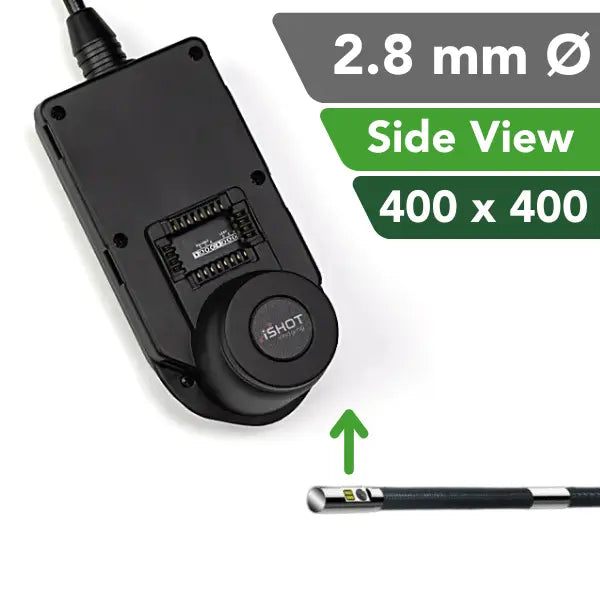

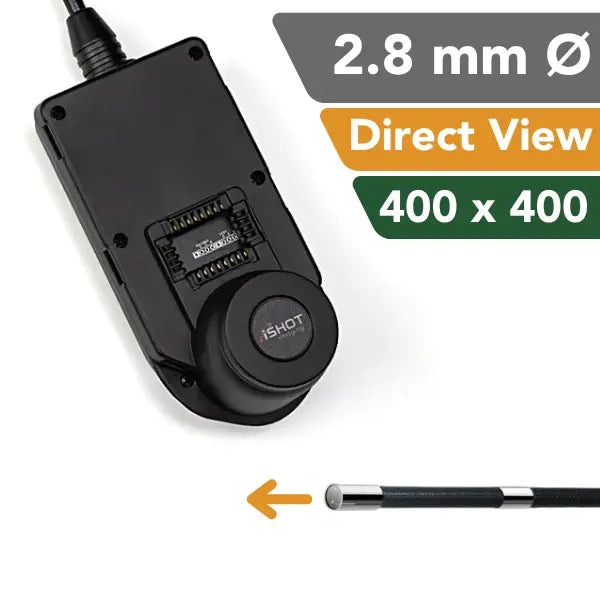

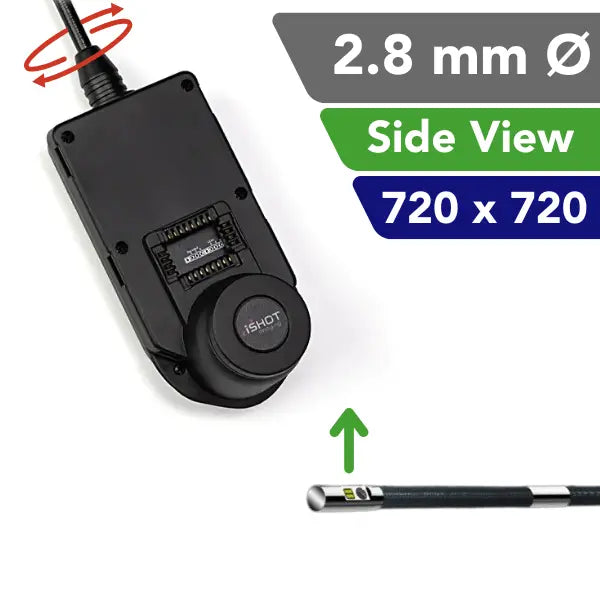

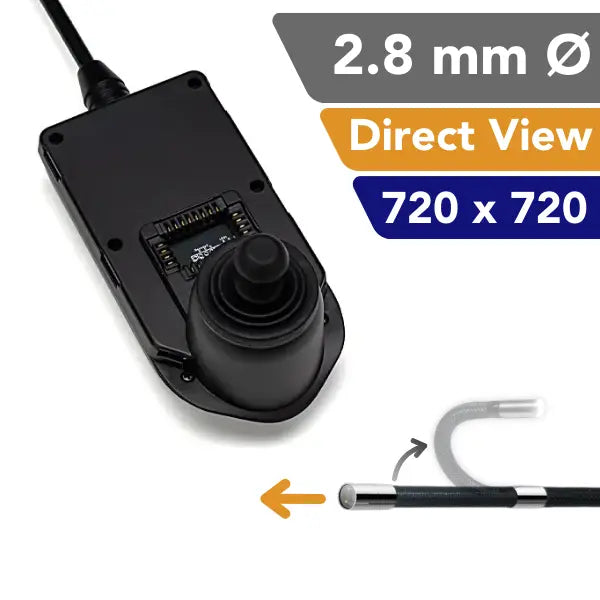

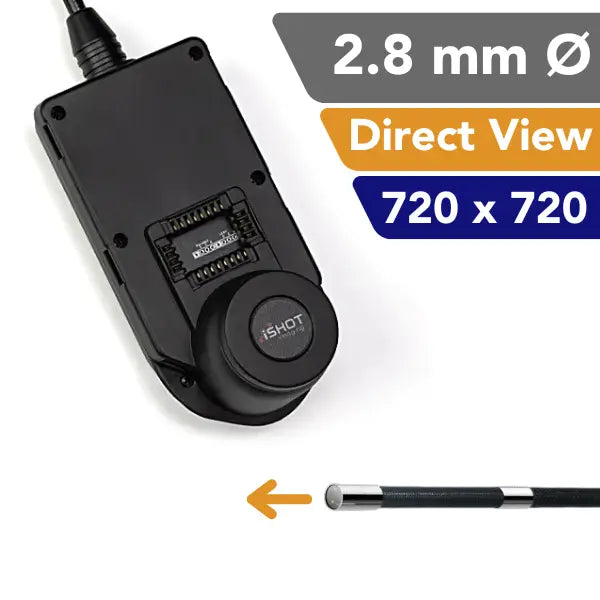

Probe Configuration Options

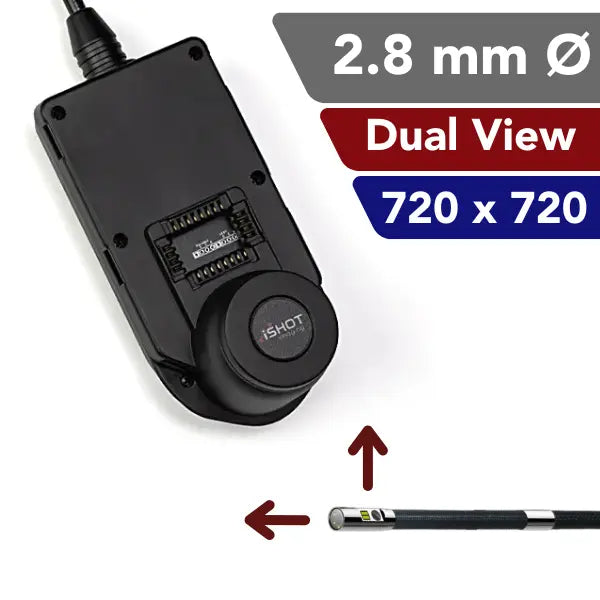

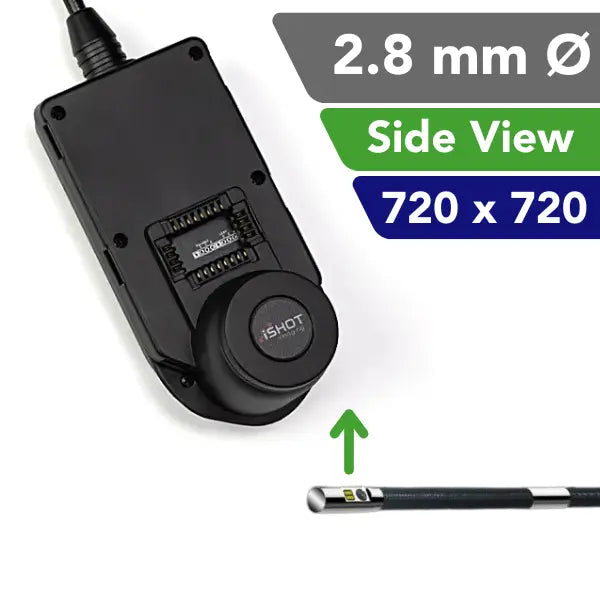

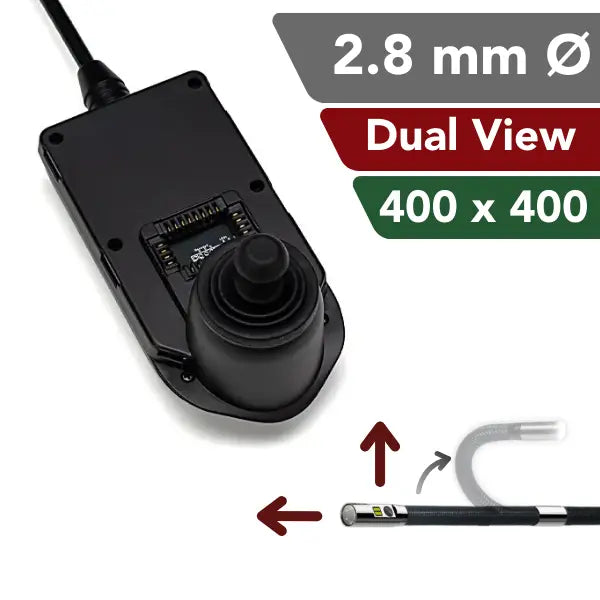

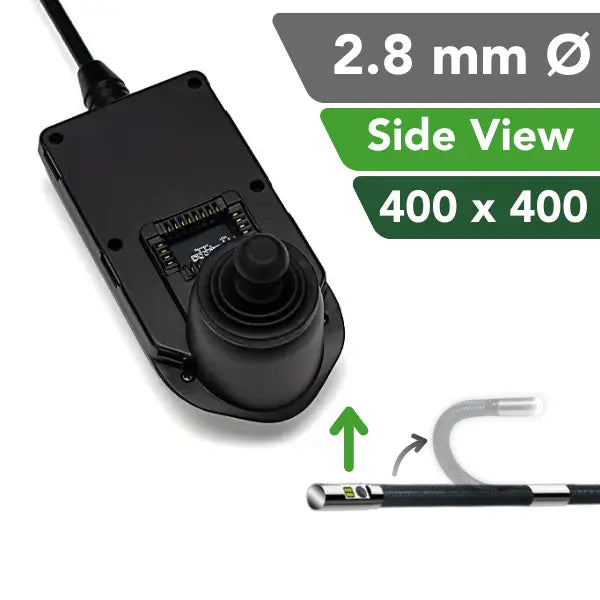

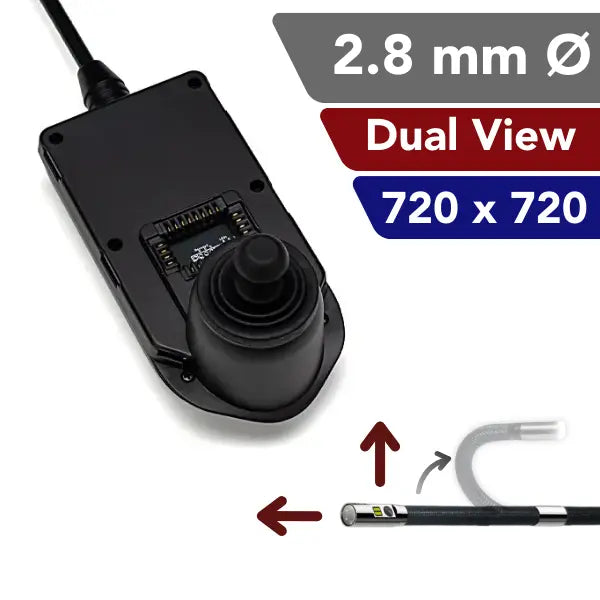

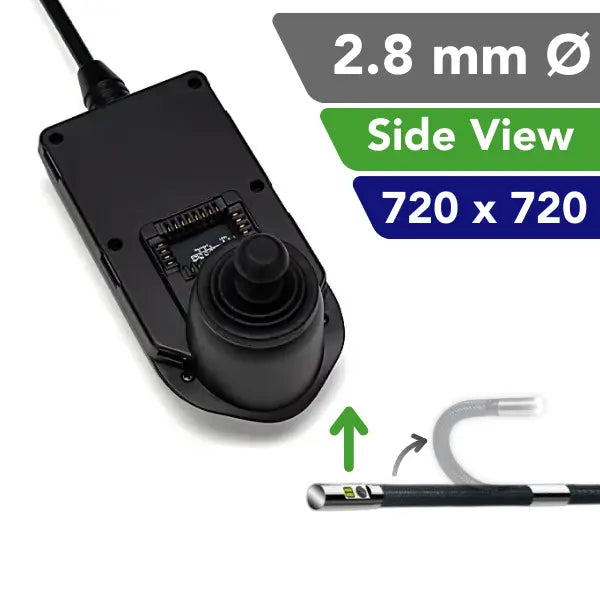

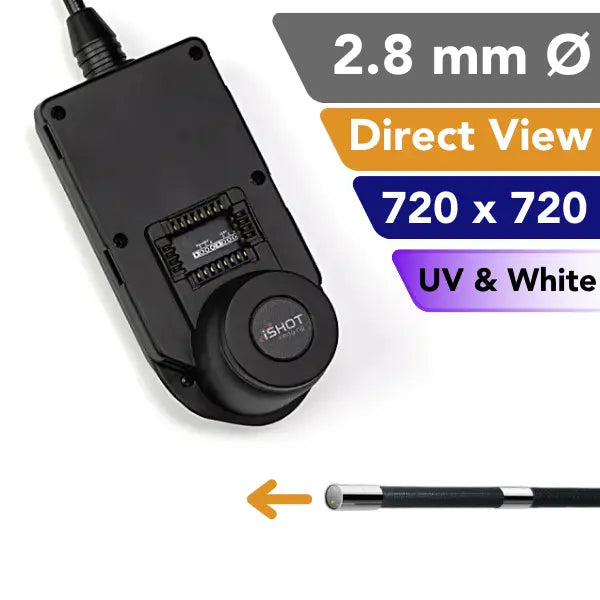

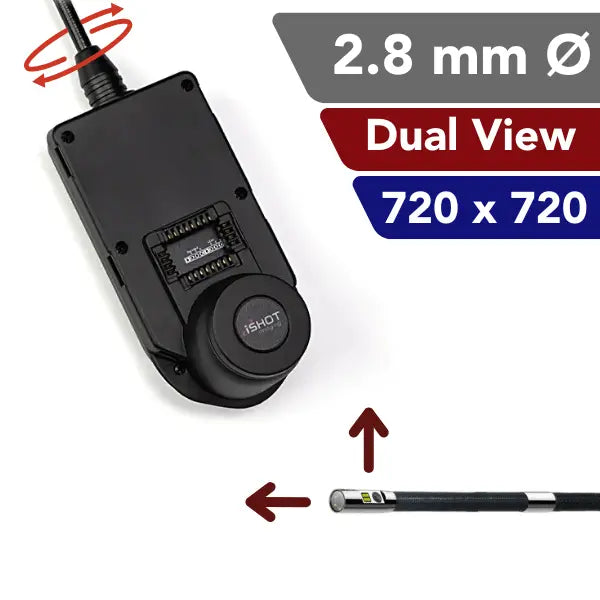

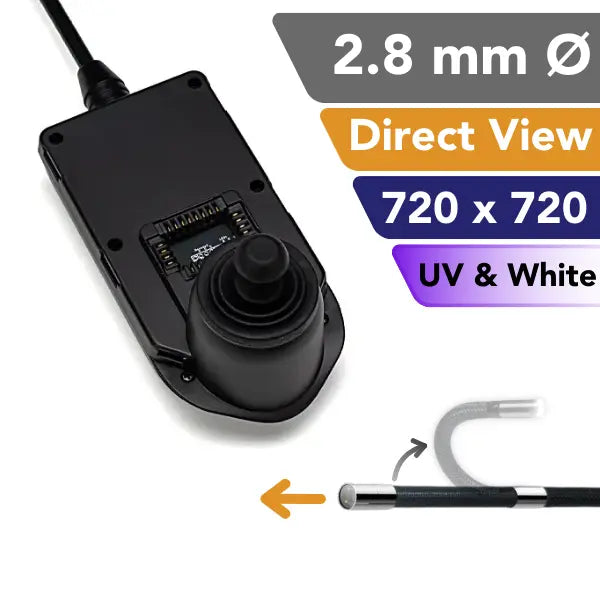

The supplied description identifies a dual-view option with direct 0° and side 90° perspectives, along with an all-way manual articulation option. Direction of view, articulation type, field of view, and resolution are listed as selection dependent; confirm these features for the configuration ordered.
What’s Included

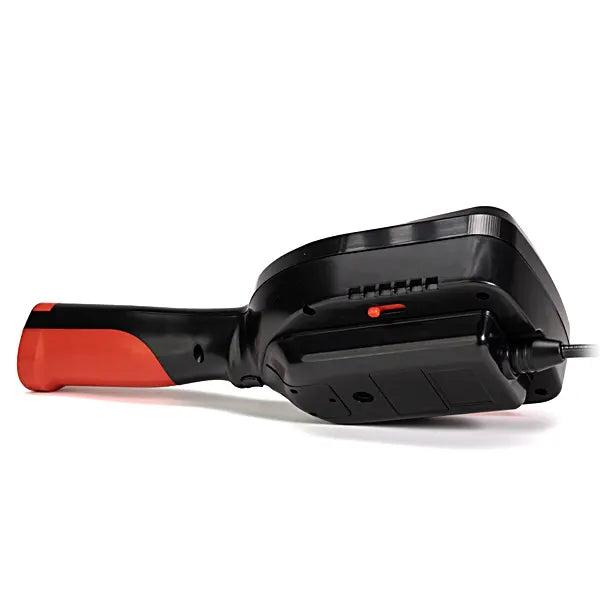

- Model-E handheld monitor (square 1:1 display)
- 2.8 mm dual-view probe (direct & side)
- System cabling, battery pack, and essentials
The included-item list describes a dual-view probe, while the specifications list direction of view as selection dependent. Confirm the included probe configuration when ordering.
Backed by Alabama Probe’s regional sales, training, and post-purchase support for teams across the Southeast.
Specifications
| Diameter | 2.8 mm | |
|---|---|---|
| Direction of View | Selection dependent | |
| Articulation Type | Selection dependent | |
| Field of View | Selection dependent | |
| Depth of Field | 5–120 mm | |
| Illumination Type | White-light LEDs | |
| Illumination | Up to 100,000 lux | |
| Resolution | Selection dependent | |
| Battery Life | 8–9 hours | |
| Shaft Material | Tungsten braided mesh | |
| Image & Screen Aspect Ratio | 1:1 | |

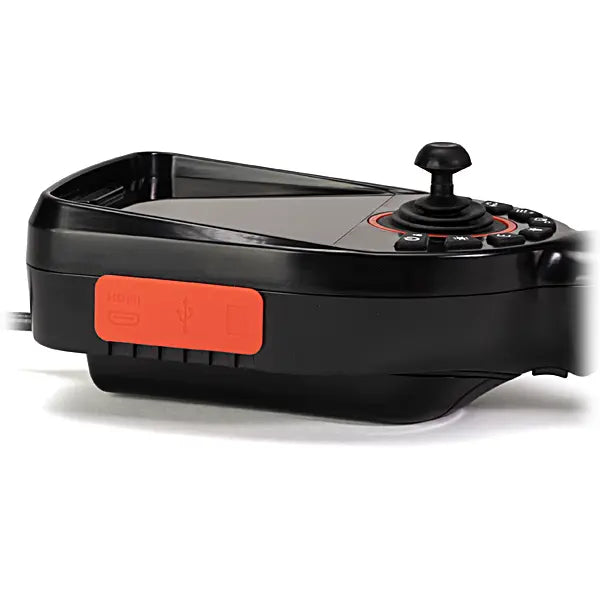

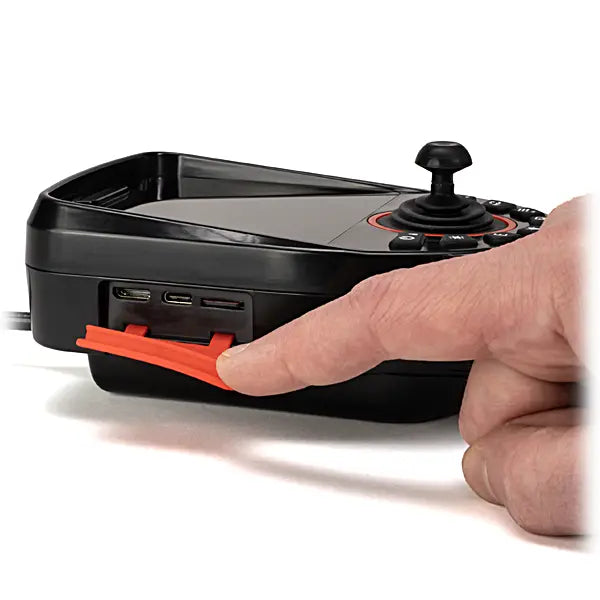

| Video Output | USB-C, HDMI | |
| Charging Port | USB-C |
Downloads
iShot® Imaging Model E Operation Manual
FAQ
Does this complete system include a monitor?
Yes. The included-item list specifies a Model-E handheld monitor, a 2.8 mm dual-view probe, and system cabling, battery pack, and essentials. Confirm the probe configuration when ordering.
Which specifications depend on the selected configuration?
Direction of view, articulation type, field of view, and resolution are selection dependent.
What depth of field and battery life are specified?
The specified depth of field is 5–120 mm, and the stated battery life is 8–9 hours.
