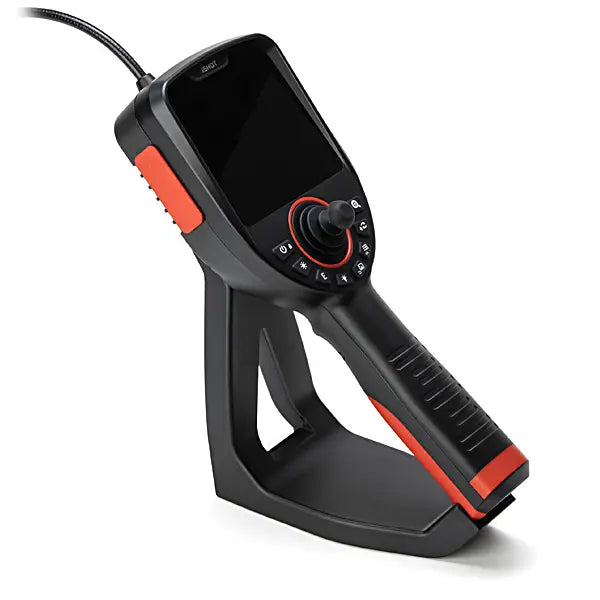

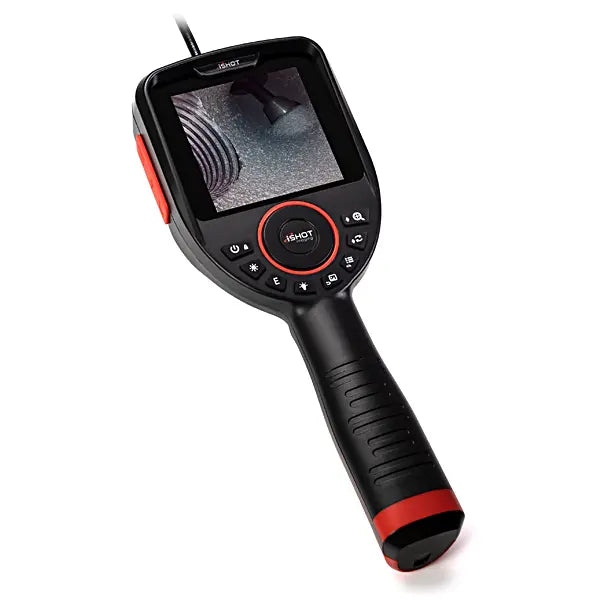

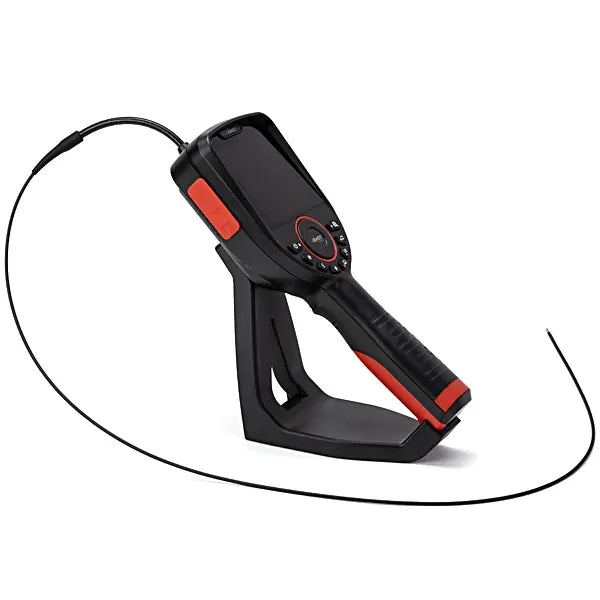

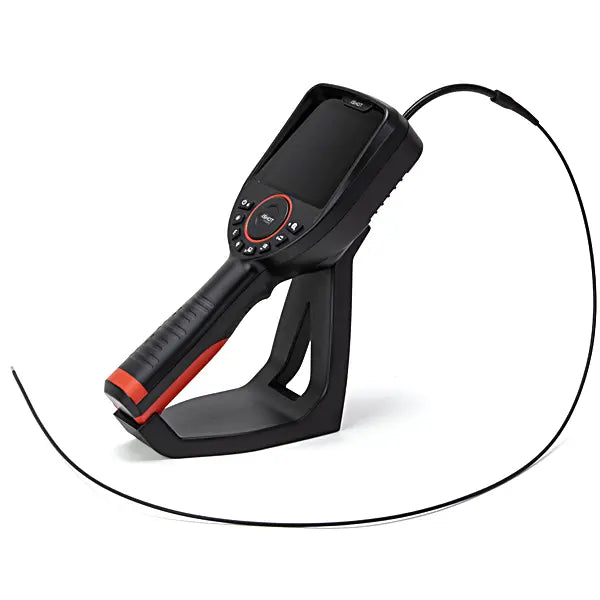

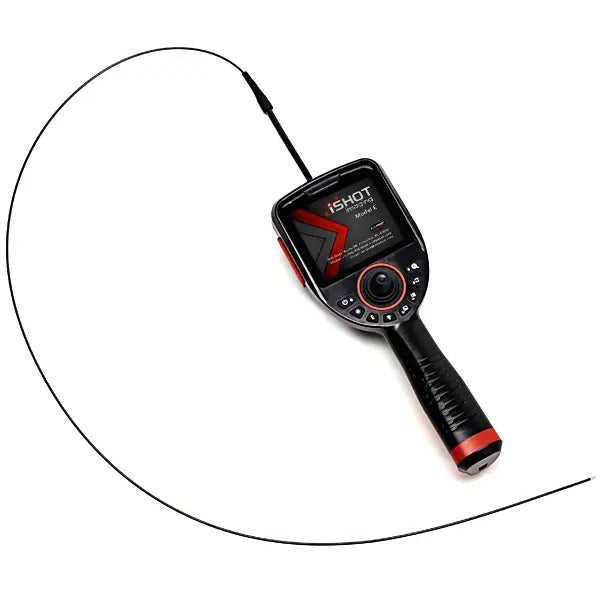

iShot® Model E Industrial Handheld Video Borescope — 1.7 mm Complete System
The iShot® Model E Complete System combines a square-format handheld monitor with a detachable probe for remote visual inspection on the shop floor and in the field. This 1.7 mm configuration provides 400 × 400-pixel imaging, a 120° field of view, and white LED illumination rated at 3,000 lux.
Key Features
- 1.7 mm probe diameter
- 400 × 400-pixel resolution with a 1:1 image and screen aspect ratio
- 120° field of view
- 1–50 mm depth of field with near focus to approximately 1 mm
- Direct controls for exposure, sharpness, and brightness
- Negative, color, monochrome, and grid viewing effects

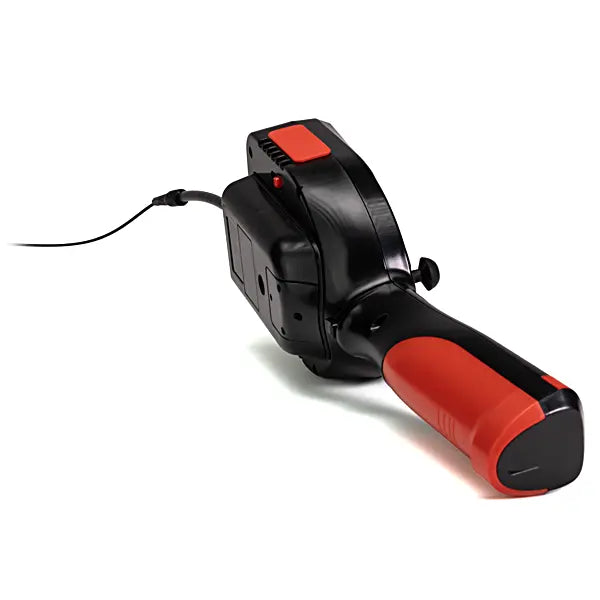

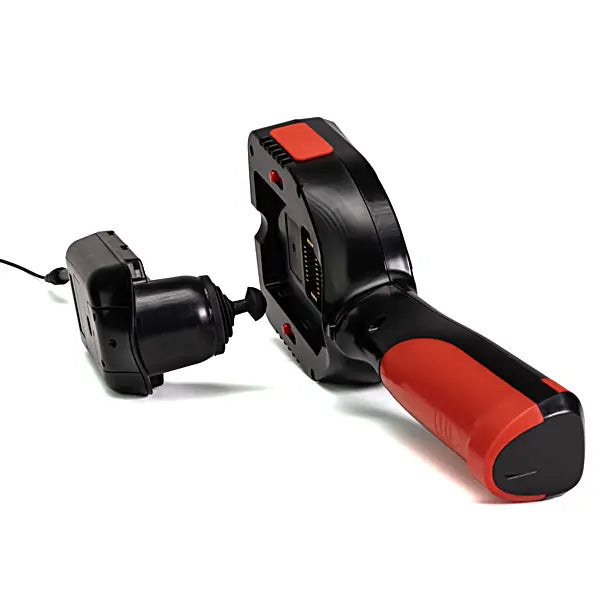

- Fast startup and quick-change probe interface
- Tungsten braided mesh shaft
- Side, direct, or dual direction of view by selection
Industrial Inspection Applications
Applications include turbine blade castings, engine blocks and heads, pumps, valves, housings, metal tubing, and welded assemblies. The Model E supports remote visual inspection across aviation, automotive, utilities, and manufacturing.

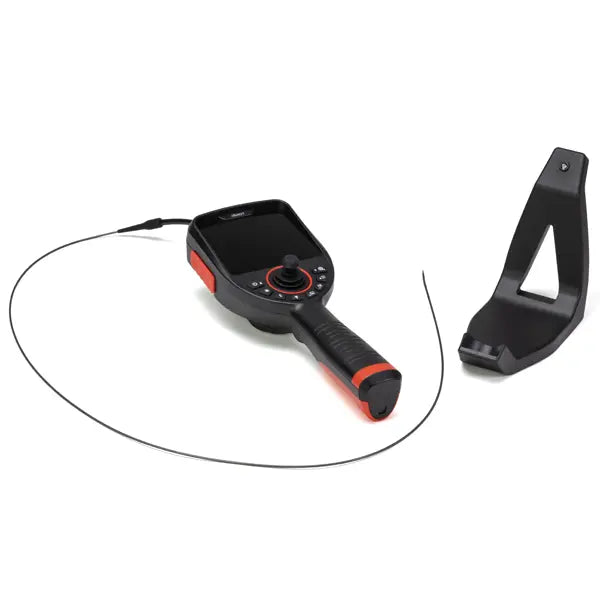

What’s Included

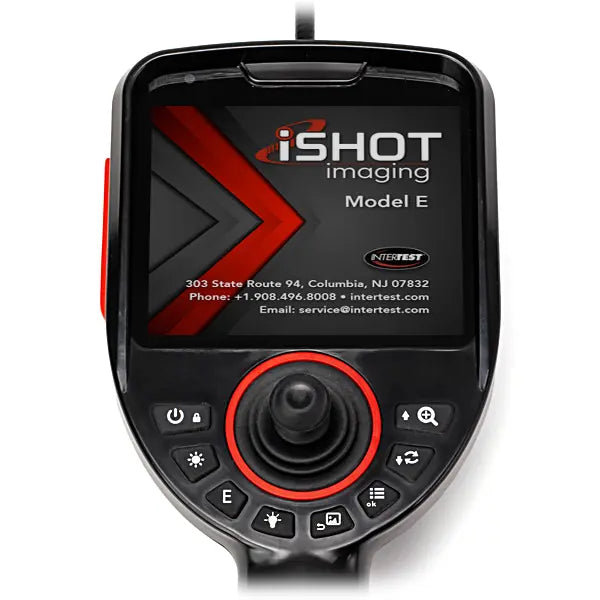

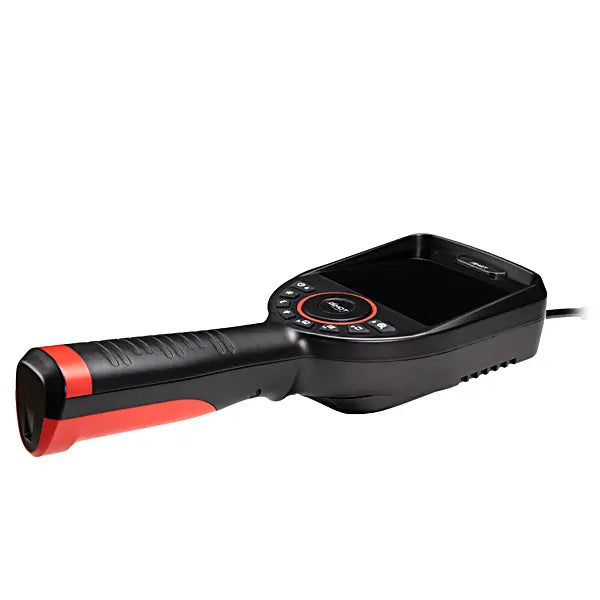

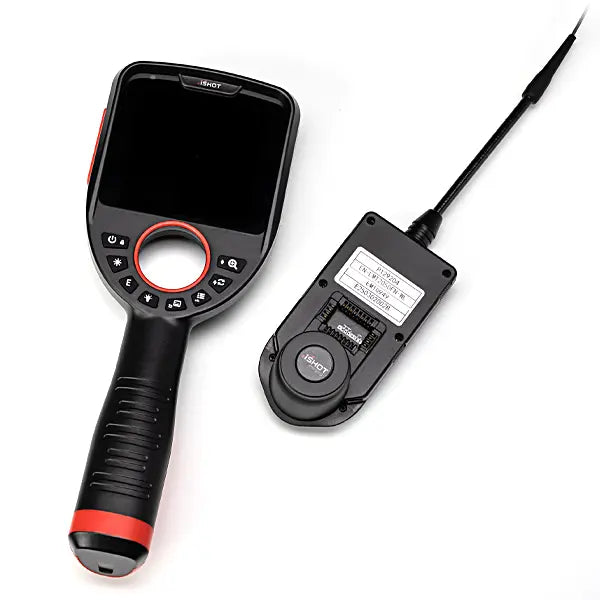

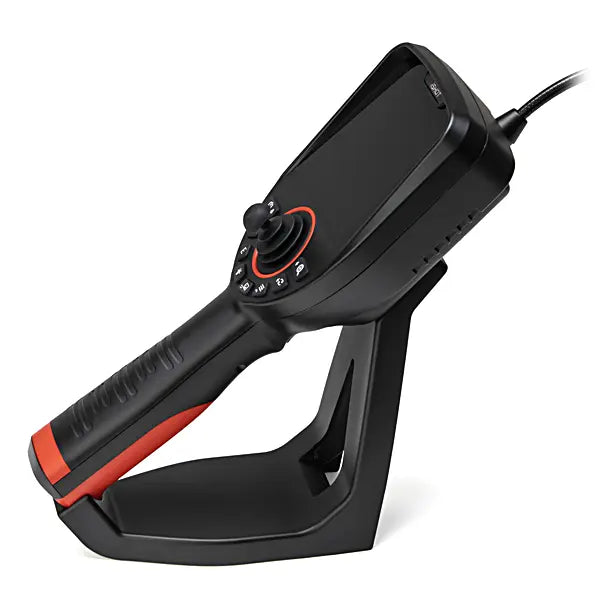

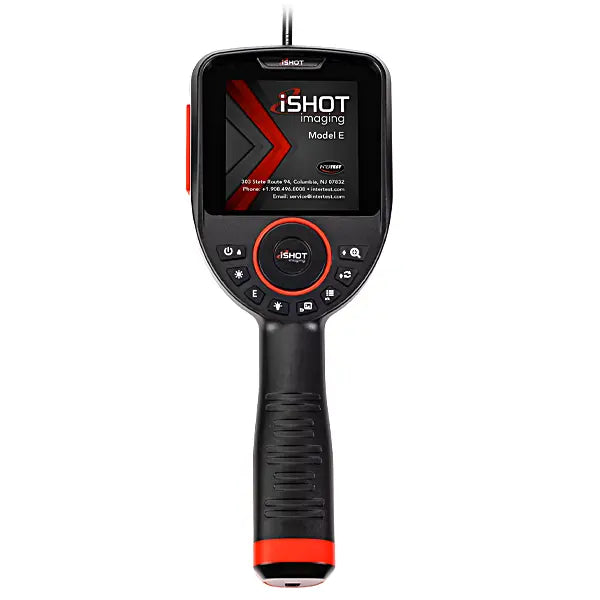

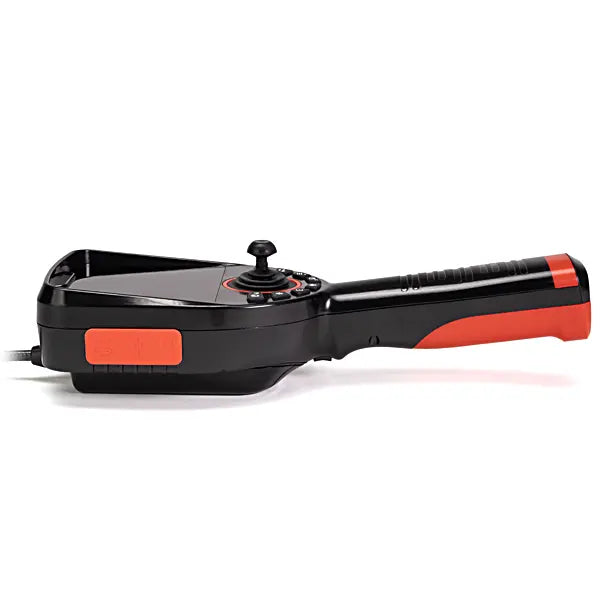

- Model-E handheld monitor (square 1:1 display)

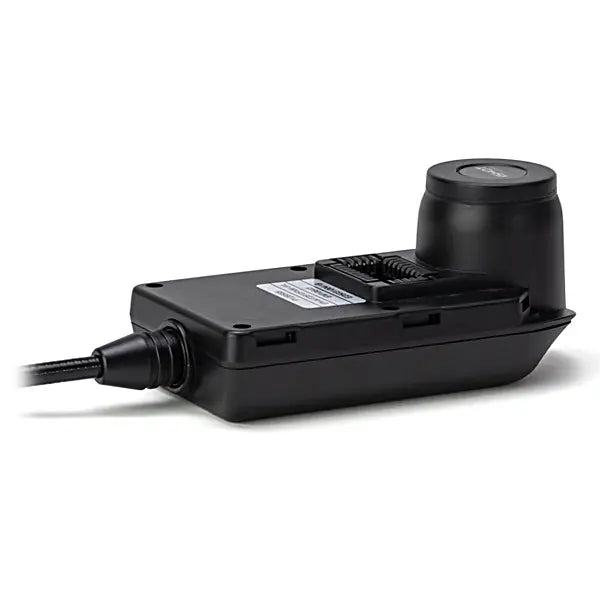

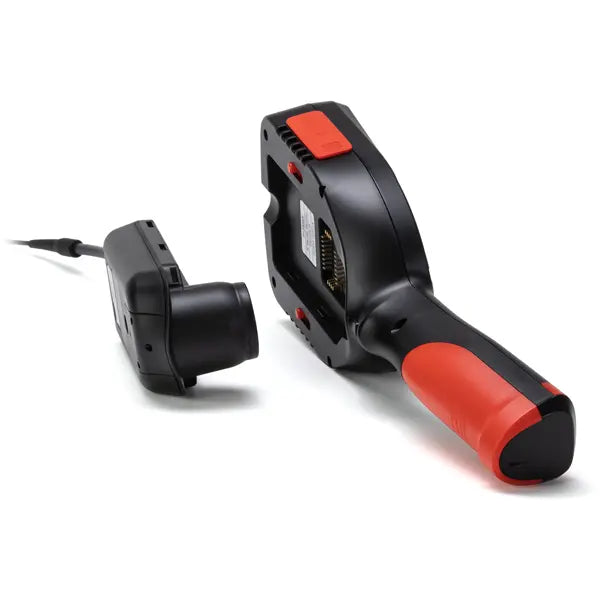

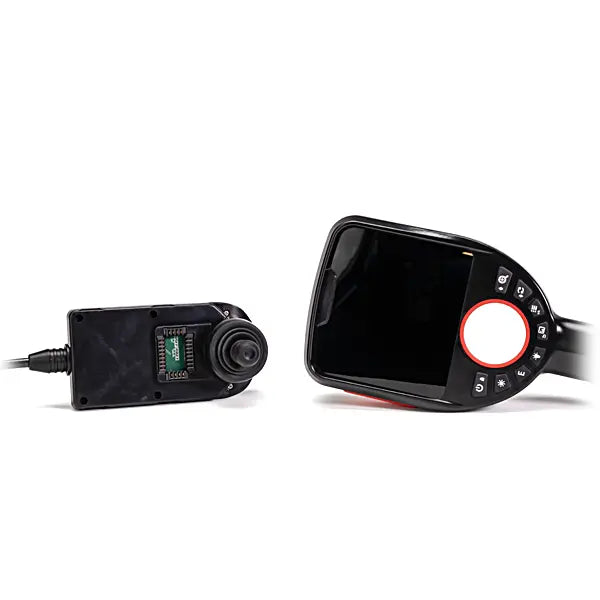

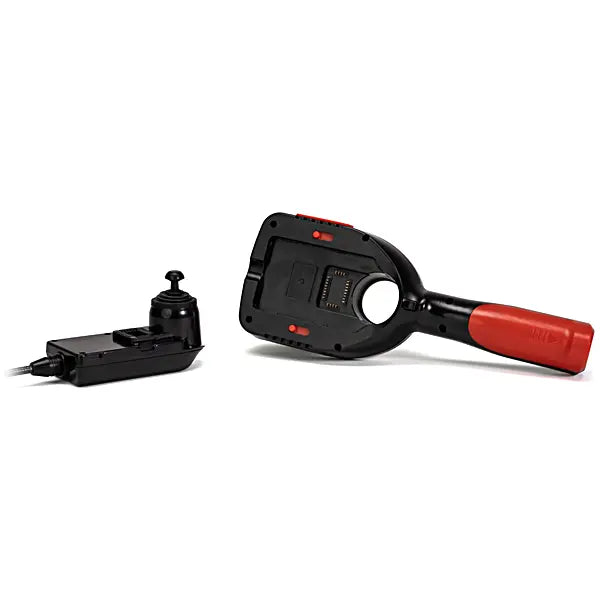

- Detachable probe (diameter/length/DOV by selection)
- System cabling and essentials
Square-Format Viewing

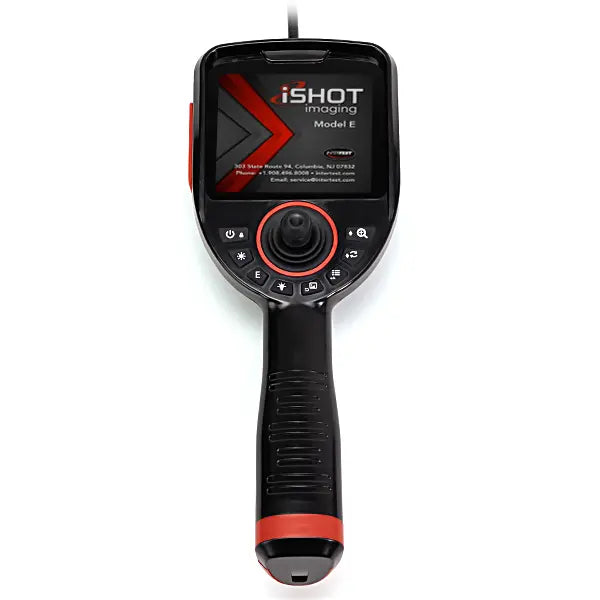

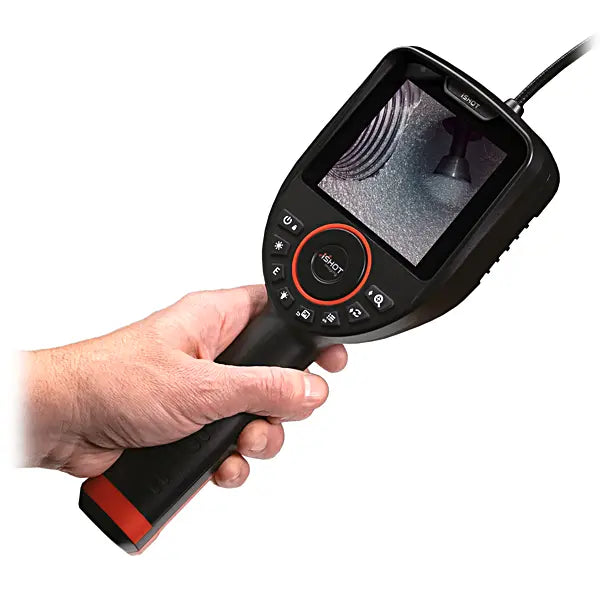

The Model E captures and displays images in a 1:1 aspect ratio on its 4" × 4" viewing display. Preserving the square image format avoids stretching into 4:3 or 16:9 proportions when examining internal features.
Image Controls and Close Focus

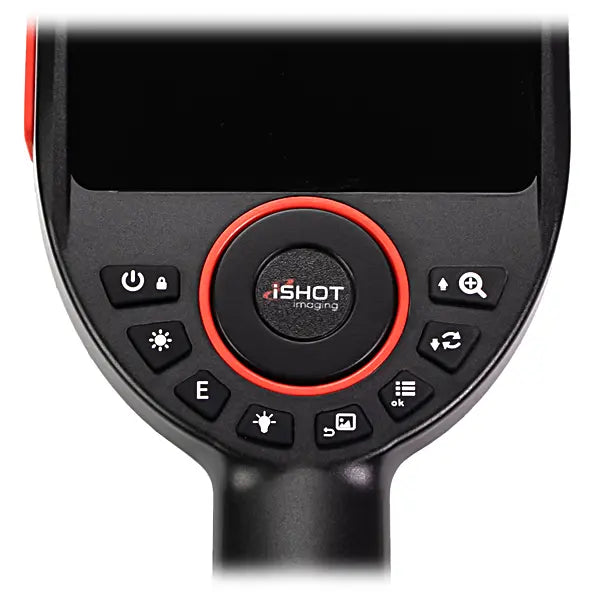

Dedicated front-panel controls allow exposure, sharpness, and brightness adjustments during inspection. Negative, color, monochrome, and grid effects provide additional ways to examine small details. Fast startup and quick probe changes support transitions between tasks.
The 1–50 mm depth of field supports near and mid-range viewing, including close-focus inspection at approximately 1 mm.

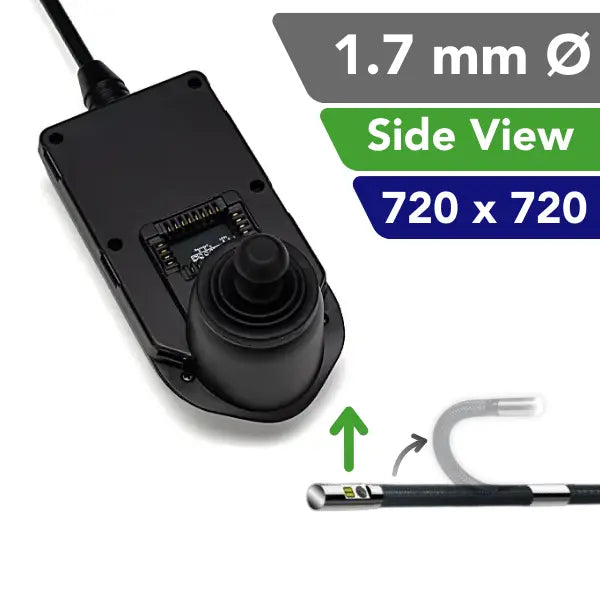

Model E Probe Platform

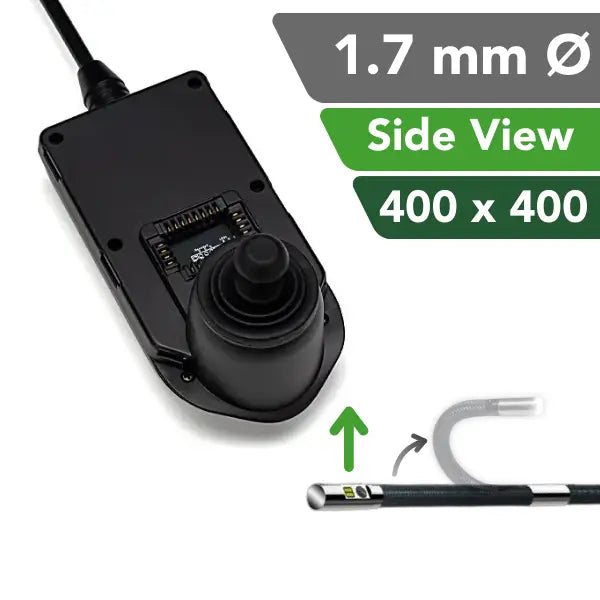

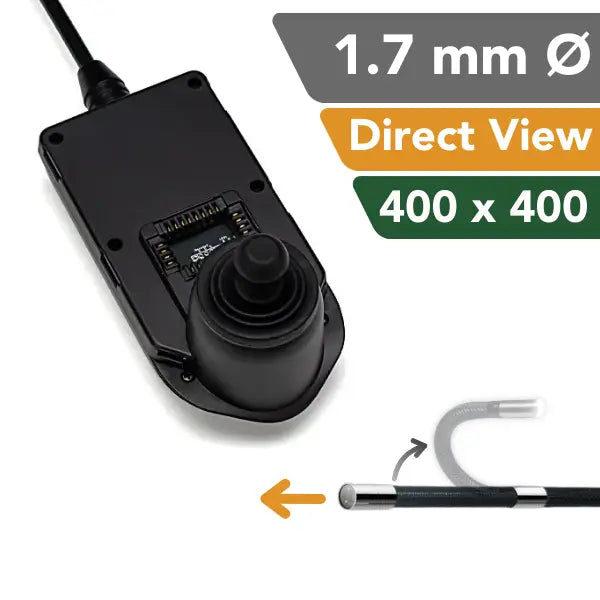

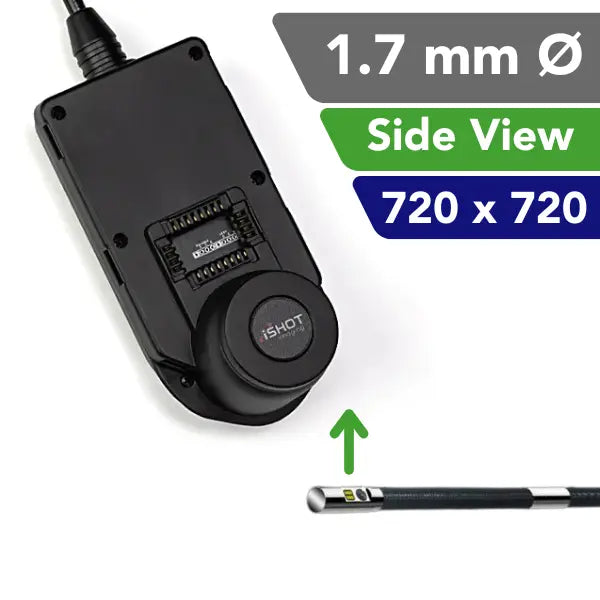

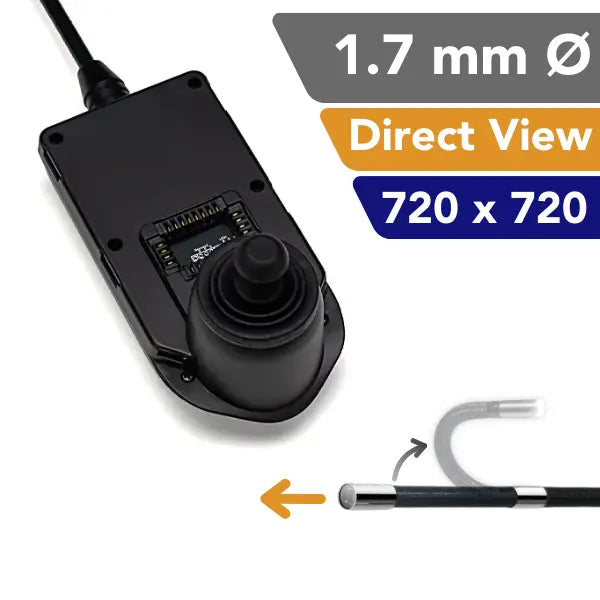

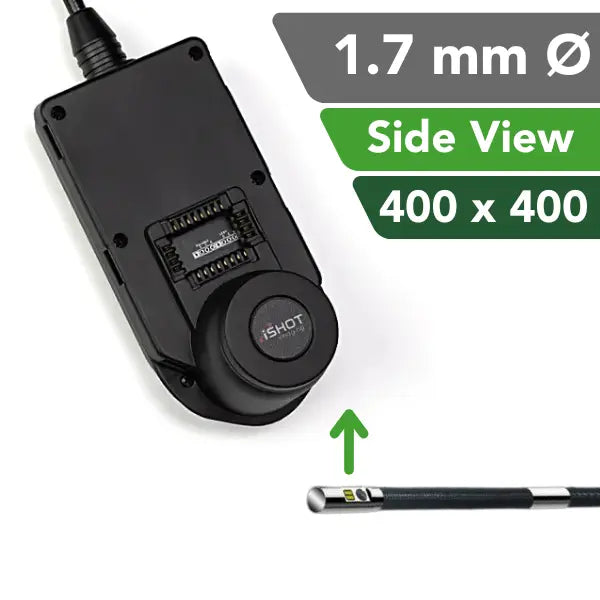

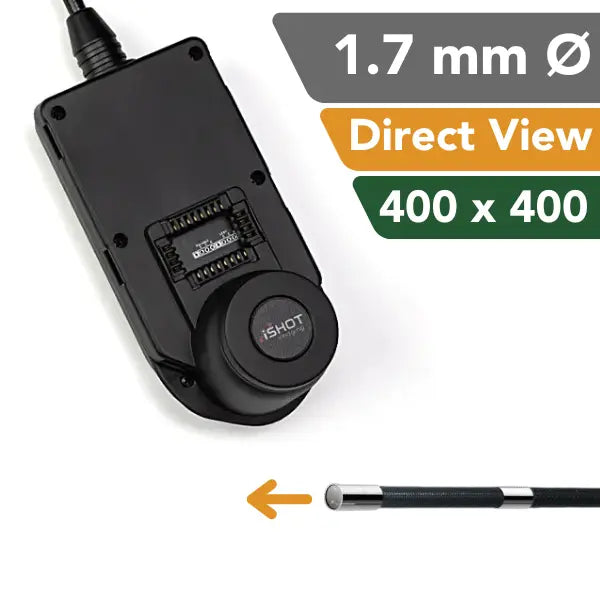

Across the Model E platform, probe options span approximately 1.2–6 mm in diameter and 1–10 m in length, with direct, side, and dual directions of view. Sensor resolutions vary by configuration. This listing specifies a 1.7 mm probe with 400 × 400-pixel resolution and tungsten-braid sheathing.
Backed by Alabama Probe’s regional sales, training, and post-purchase support for teams across the Southeast.
Specifications
| Diameter | 1.7 mm | |
|---|---|---|
| Direction of View | Side, Direct, or Dual (by selection) | |
| Field of View | 120° | |
| Depth of Field | 1–50 mm | |
| Illumination Type | White-light LEDs | |
| Illumination | 3,000 lux | |
| Resolution | 400 × 400 pixels | |
| Battery Life | 8–9 hours | |
| Shaft Material | Tungsten braided mesh | |
| Image & Screen Aspect Ratio | 1:1 | |

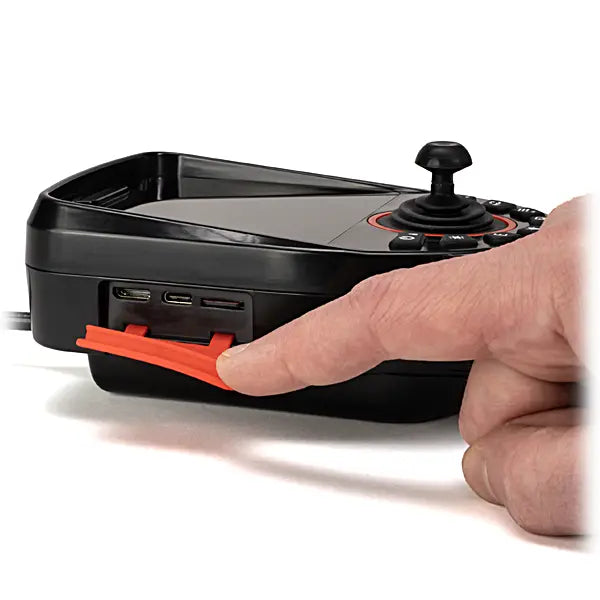

| Video Output | USB-C, HDMI | |
| Charging Port | USB-C |
Downloads
FAQ
Does this complete system include a monitor?
Yes. It includes a Model-E handheld monitor, a detachable probe by selection, and system cabling and essentials.
What resolution and field of view are specified?
This configuration specifies 400 × 400-pixel resolution and a 120° field of view.
What depth of field and battery life are listed?
The listed depth of field is 1–50 mm, and the stated battery life is 8–9 hours.
