Description

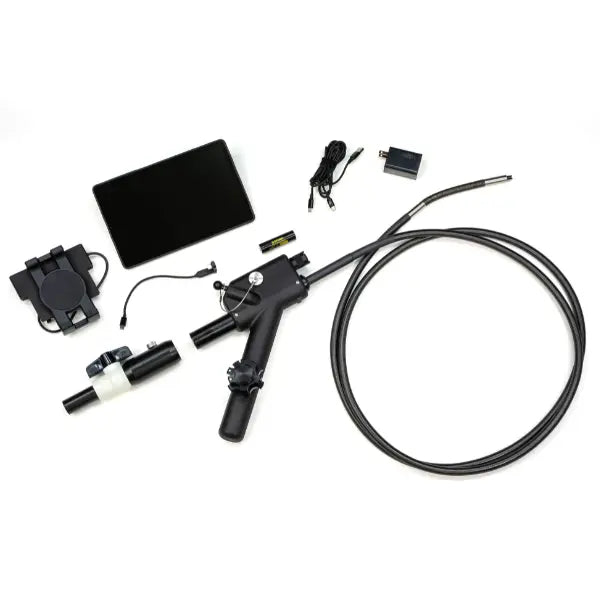

iGrab™ Vacuum Articulating FOSAR 1/2" Diameter Tool — Tablet Display
The iGrab™ Vacuum-Articulating FOSAR Tool combines vacuum-assisted extraction with live video guidance for removing stringy, granular, loose, or difficult-to-grasp foreign object debris. A four-way articulating tip helps operators position the tool in confined and difficult-to-access areas.
The 1/2-inch shaft uses tungsten braid and stainless steel end fittings for durability and flexibility. An integrated 1080p color CMOS camera and LED illumination provide real-time viewing through a handle-mounted Samsung S8 tablet running USB Camera Pro software.
Key Features
- Vacuum-assisted removal of stringy, granular, and loose debris
- 1/2-inch outer diameter with an approximately 0.24-inch vacuum channel
- 6-inch tip with four-way articulation
- Integrated 1080p color CMOS camera with LED illumination
- 70° camera field of view and focus from ¾" to infinity

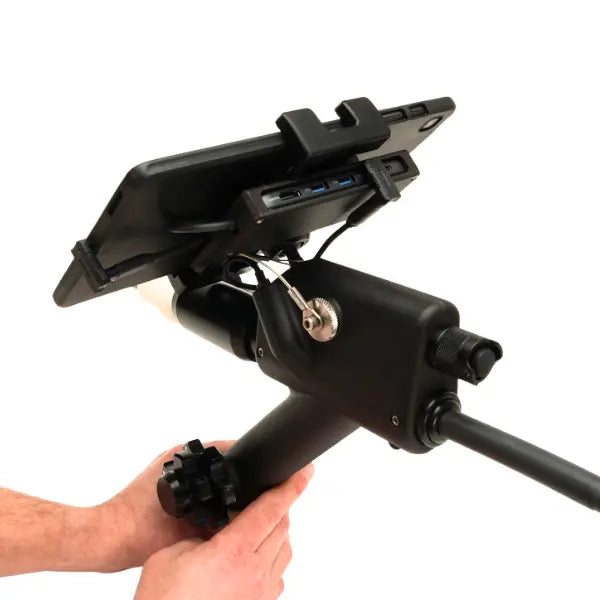

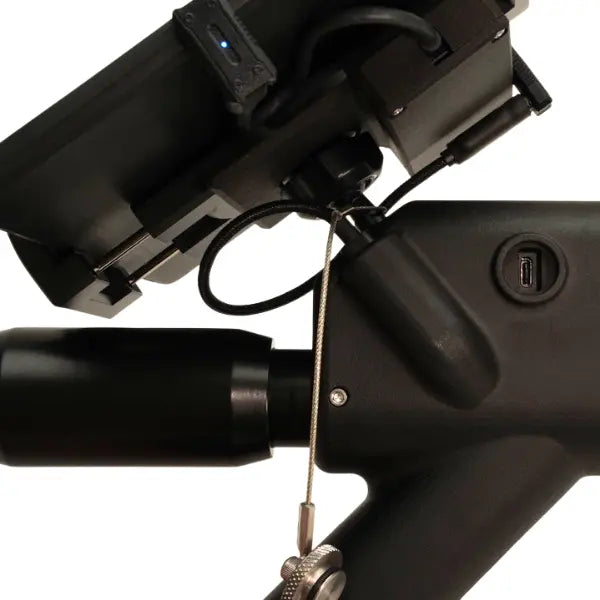

- Handle-mounted Samsung S8 tablet with U.S.-based USB Camera Pro software
- 3-meter and 4-meter length options
- 21700 rechargeable lithium-ion battery

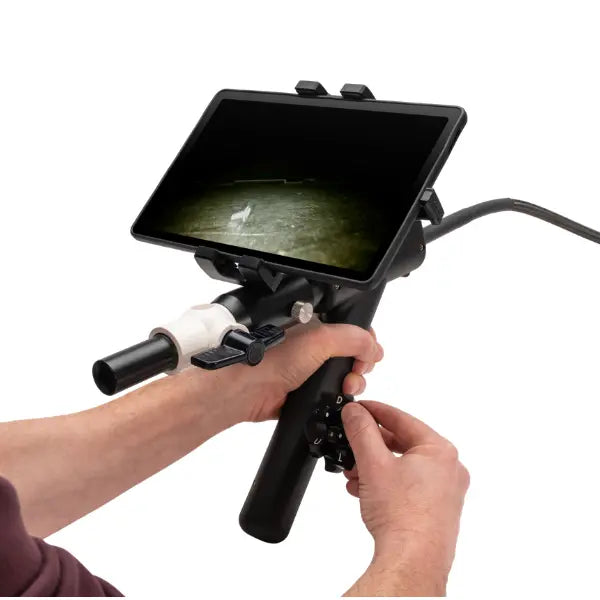

Visually Guided Debris Removal

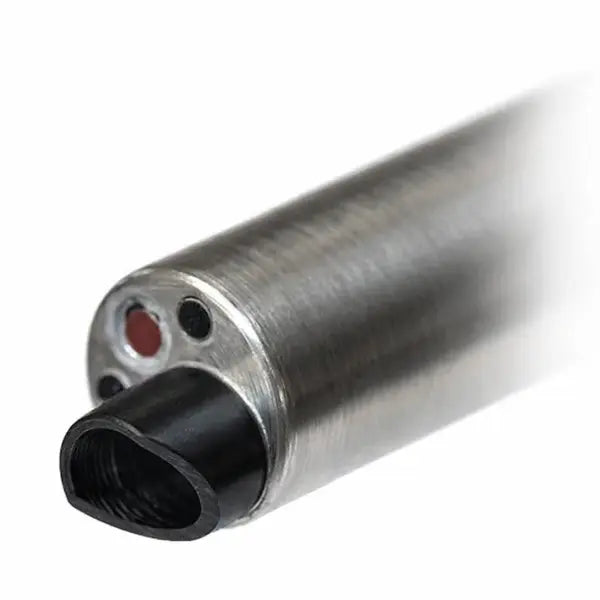

The articulating tip allows the vacuum channel to be positioned during retrieval, while the camera provides live visual guidance. LED illumination supports viewing in dark inspection environments. The specifications list 120° articulation in all directions; the descriptive information states over 120° of movement.
Industrial Retrieval Applications
Originally developed for aerospace and aviation maintenance, repair, and overhaul, the tool is also used in power generation, manufacturing, and automotive maintenance applications.
Nozzle Selection
Interchangeable nozzle attachments are not included. Contact InterTest to discuss the nozzle attachment suited to your application.
Alabama Probe provides regional sales assistance for foreign object retrieval applications across the Southeast.
Specifications
| Outer Diameter (inches) | 0.5” | |
|---|---|---|
| Inner Diameter (inches) | ~0.24” (vacuum channel) | |
| Length | 3 meter/9.84 feet, 4 meter/13.1 feet | |
| Material | Tungsten braid, stainless steel end fittings | |
| Articulation | 4-way, 120° all directions | |
| Camera Head | ||
| USB Camera | 70° FOV | |
| Sensor | Color CMOS 1080p camera | |
| Focus | ¾” to infinity | |
| Battery | 21700 Rechargeable Lithium-Ion Battery | |
| Monitor | Samsung S8 | |
| Software | USB Camera Pro | |
| Operational Temperature | 0° to 60°C 90% non condensing | |
| Storage Temperature | -20° to 85° | |
Downloads
- iGrab™ Vacuum Articulating FOSAR Tool with Tablet Manual
- Suction Efficacy Experiment - Vacuum Flow Rates in Varied Hose Diameters for FOD Removal
FAQ
What types of debris is this tool designed to remove?
It is designed for vacuum-assisted removal of stringy, granular, loose, and difficult-to-grasp foreign object debris in confined environments.
What length options are listed?
The listed options are 3 meters (9.84 feet) and 4 meters (13.1 feet).
Does the tool provide live video viewing?
Yes. The integrated 1080p color CMOS camera provides real-time viewing through the handle-mounted Samsung S8 tablet using USB Camera Pro software.
Are nozzle attachments included?
No. Interchangeable nozzle attachments are not included and should be selected for the application.
