Description
iGrab™ Vacuum-Articulating FOSAR Tool — 1/2" Diameter

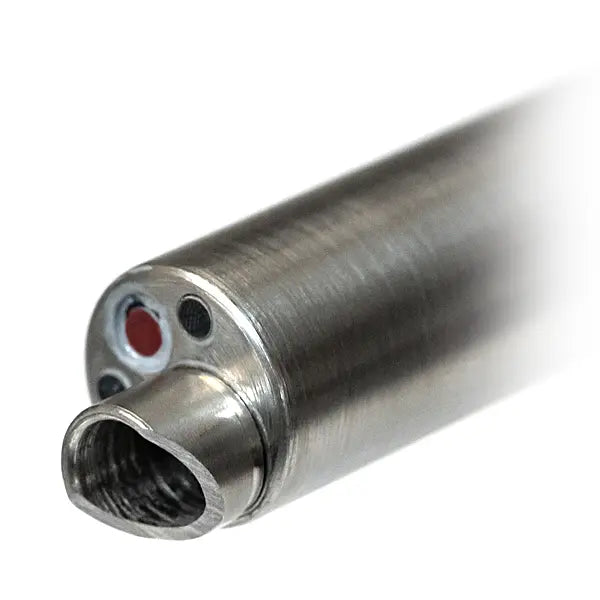

The iGrab™ Vacuum-Articulating FOSAR Tool combines vacuum debris extraction with live camera viewing for foreign object search and retrieval. Its 1/2" tungsten-braided shaft, stainless-steel end fittings, and four-way articulating tip support positioning in difficult-to-access areas.

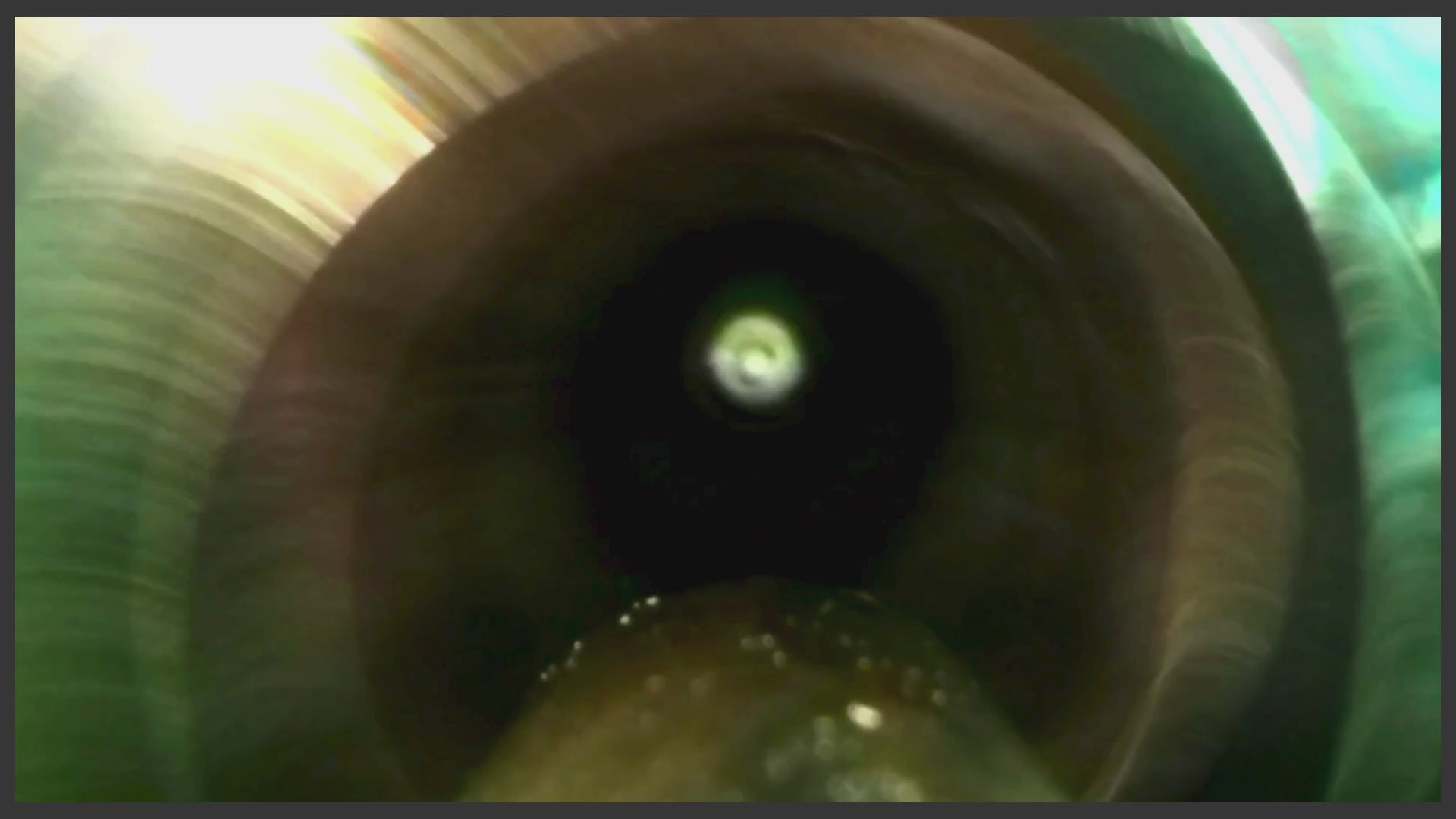

An integrated color CMOS camera and LED illumination provide 1080p viewing on the handle-mounted Samsung S8 monitor. USB Camera Pro software supports operation on the shop floor or in the field.
Key Features
- 1/2" outer diameter with an approximately 0.24" inner channel
- Tungsten-braided shaft with stainless-steel end fittings
- 6" articulating tip with four-way movement
- Integrated 1080p color CMOS camera with LED illumination
- 70° camera field of view and focus from ¾" to infinity
- Handle-mounted Samsung S8 monitor with US-based USB Camera Pro software
- Vacuum shut-off valve and interchangeable nozzle capability
- 21700 rechargeable lithium-ion battery with a spare included
Foreign Object Retrieval Applications
Originally developed for aerospace and aviation maintenance, repair, and overhaul, the tool also supports retrieval tasks in manufacturing, power generation, automotive, and diesel service. Live visual confirmation helps the operator position the tool during debris removal.

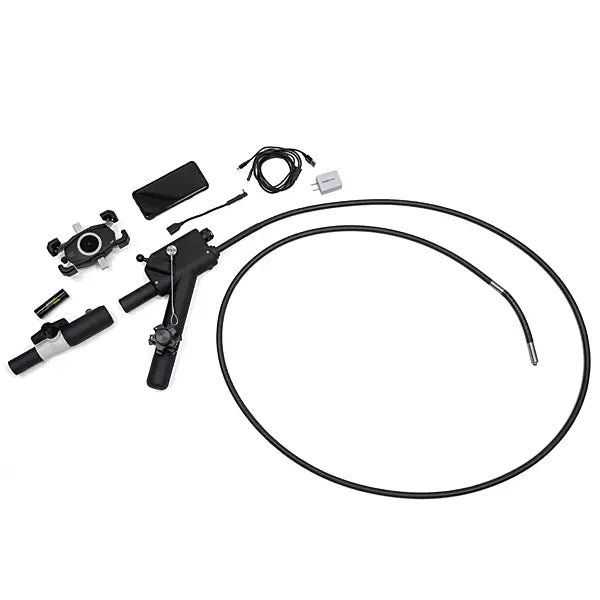

What’s Included
- iGrab™ vacuum-articulating FOSAR tool with integrated camera and LED illumination
- Handle-mounted portable monitor (Samsung S8) with USB Camera Pro software
- 21700 rechargeable lithium-ion battery plus spare
Interchangeable nozzle attachments are not included. Contact Alabama Probe for assistance choosing a nozzle for your application.
Backed by Alabama Probe’s regional sales, on-site demos, and post-purchase support for teams across the Southeast.
Specifications
| Outer Diameter (inches) | 0.5" | |
|---|---|---|
| Inner Diameter (inches) | ~0.24" | |
| Length (feet) | 9.84 ft | |
| Material | Tungsten braid, stainless-steel end fittings | |
| Articulation | 4-way, ~120° in all directions (6" articulating tip) | |
| Camera Head | USB camera; 70° FOV | |
| Sensor | Color CMOS, 1080p | |
| Focus | ¾" to infinity | |
| Battery | 21700 rechargeable lithium-ion (spare included) | |
| Monitor | Samsung S8 (handle-mounted) | |
| Software | USB Camera Pro (US-based) | |
| Operational Temperature | 0° to 60 °C, 90% non-condensing | |
| Storage Temperature | −20° to 85 °C |
FAQ
Are interchangeable nozzle attachments included?
No. Nozzle attachments are not included. Contact Alabama Probe for help selecting a nozzle for your retrieval application.
Does the tool provide live camera viewing?
Yes. The integrated color CMOS camera provides 1080p viewing with LED illumination through the handle-mounted Samsung S8 monitor.
Is a spare battery included?
Yes. The tool includes a 21700 rechargeable lithium-ion battery plus a spare.
