Description
iGrab™ Complete Professional FOD Retrieval Tool Kit
The iGrab™ Complete Professional FOD Retrieval Tool Kit combines motorized and non-motorized tools for removing foreign objects from difficult-to-access areas. It equips operators and facilities to respond to retrieval situations affecting mechanical systems and power generation plant operations.
Key Features
- Motorized RT-750 gripper plus non-motorized retrieval tools
- Closing force greater than 20 lbs at 30 degrees of closure
- Four detachable jaw sets for different retrieval tasks
- RT-750 waterproof rating to 100 FT depth
- 100 ft cable and control unit
- Three push-pole diameters, with 10 sections of each

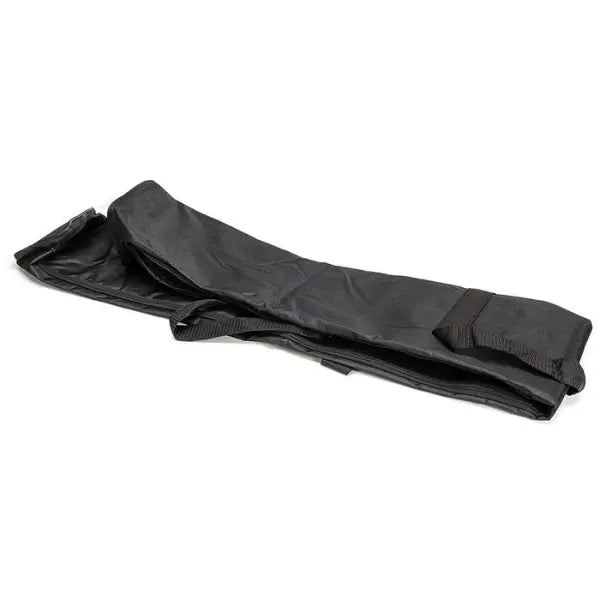

- Locking hard case and separate canvas push-pole quiver with shoulder strap
Motorized Retrieval and Positioning

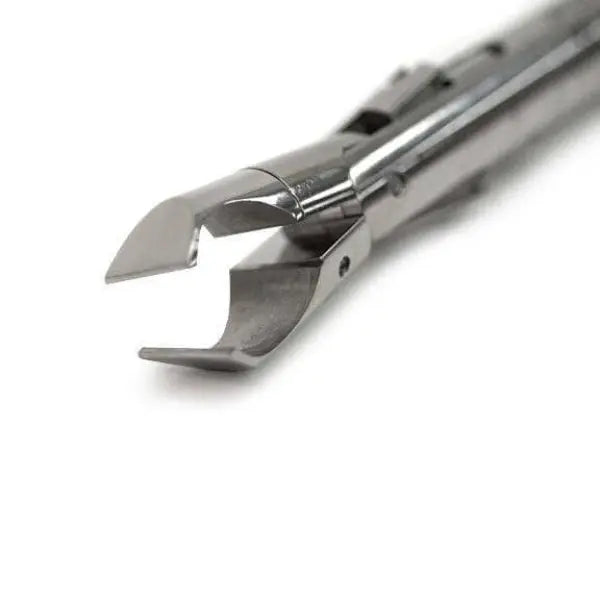

The RT-750 Electro Mechanical Tool is a heavy-duty motorized gripper with Sample Cup, Viper, Plier Jaw, and Fork & Tine jaw options. It attaches to interlocking fiberglass push poles for controlled handling. End adapters, flexible couplings, and an adjustable knuckle joint provide additional positioning options.
Manual Retrieval Options

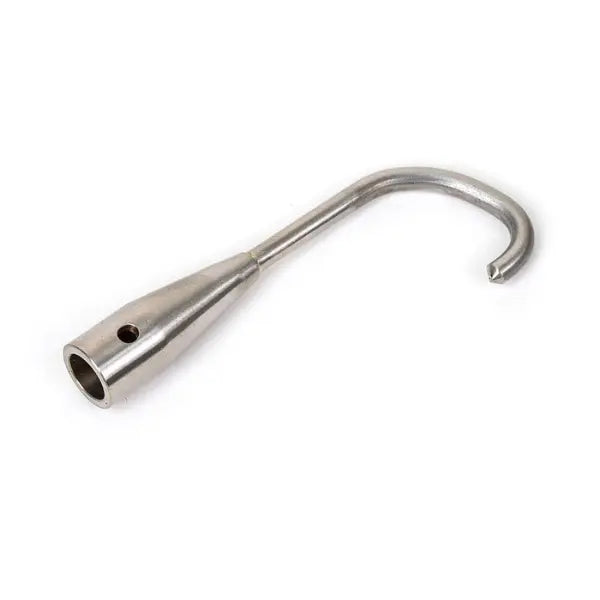

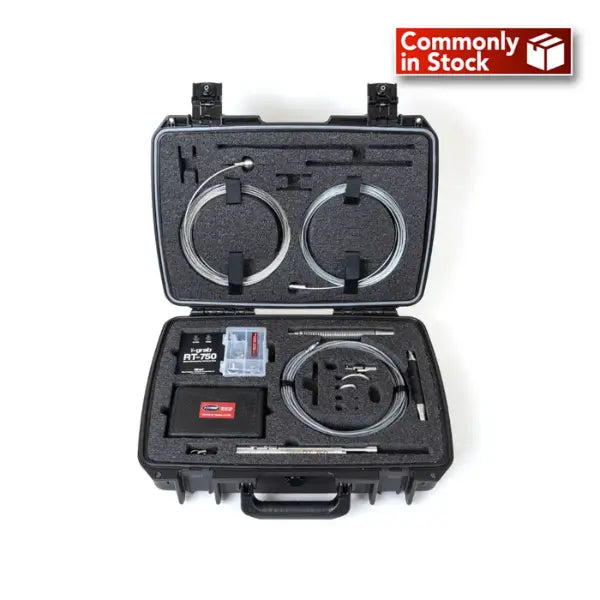

Two sizes of J hooks, magnets, and snares provide additional ways to dislodge, capture, and retrieve debris. Retrieval components store in a durable locking hard case, while the push poles pack separately into a canvas quiver with a shoulder strap.
Alabama Probe provides regional sales assistance for foreign object retrieval applications across the Southeast.

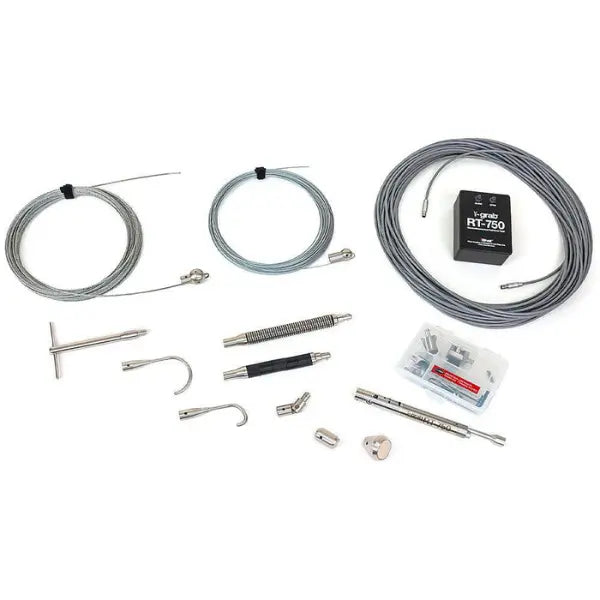

Items Included

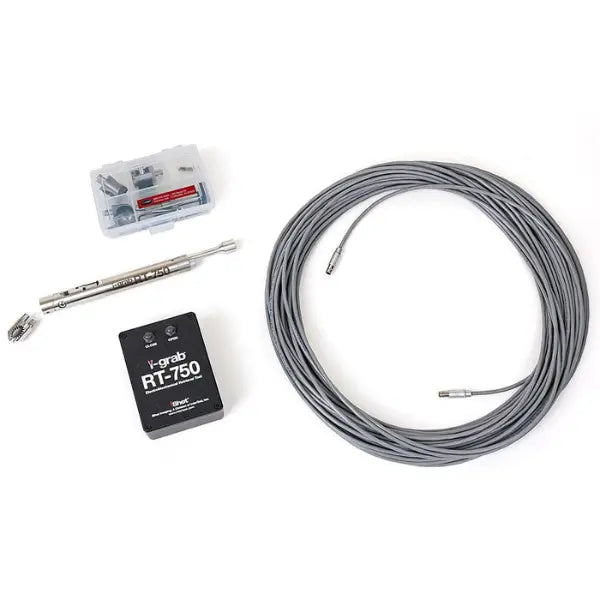

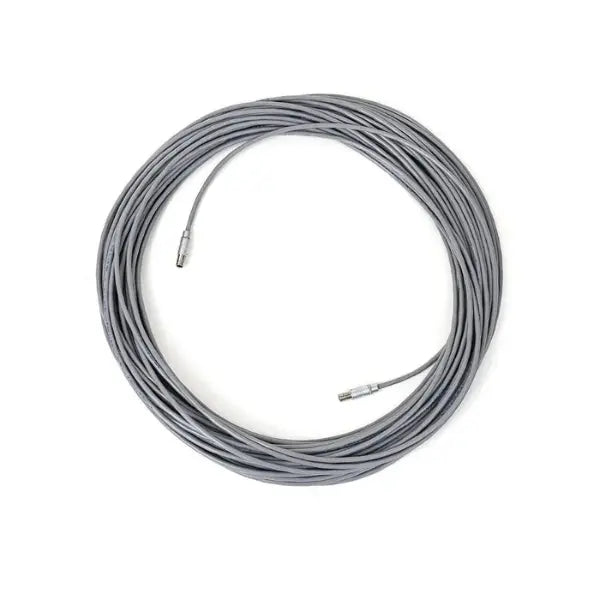

- RT-750 Electro Mechanical Tool, Control Unit, and 100 ft Cable

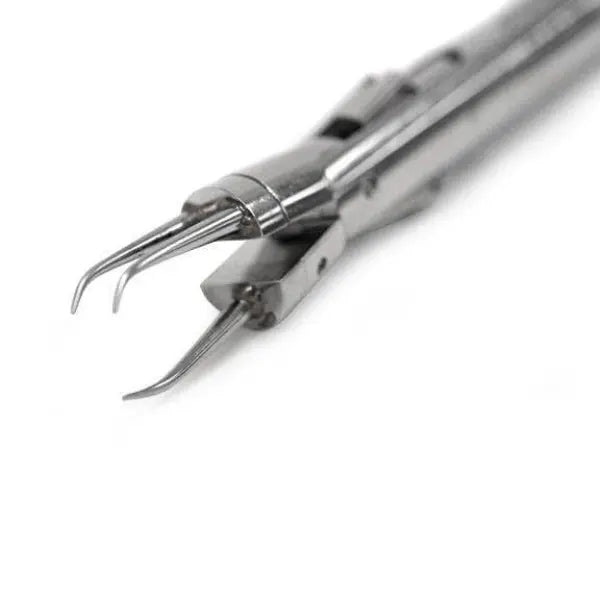

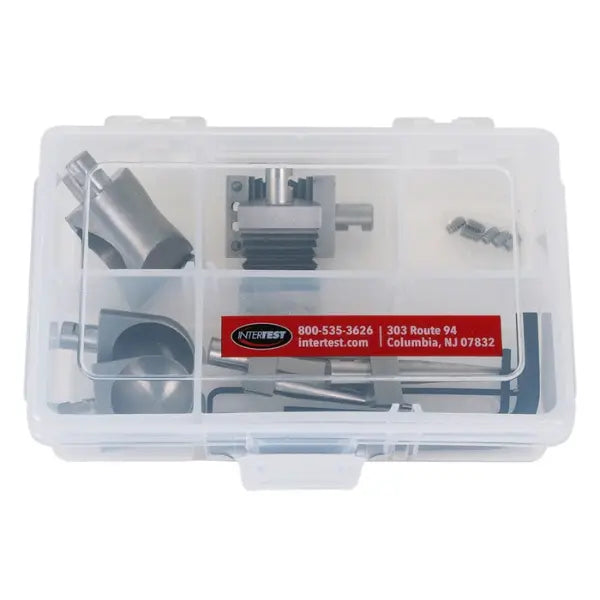

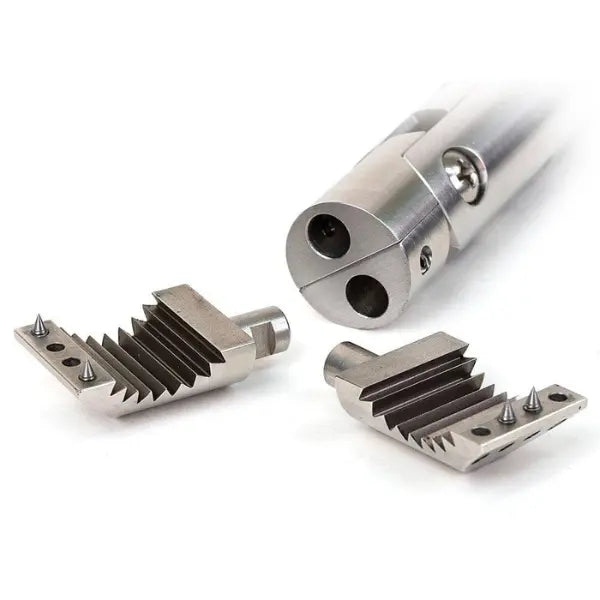

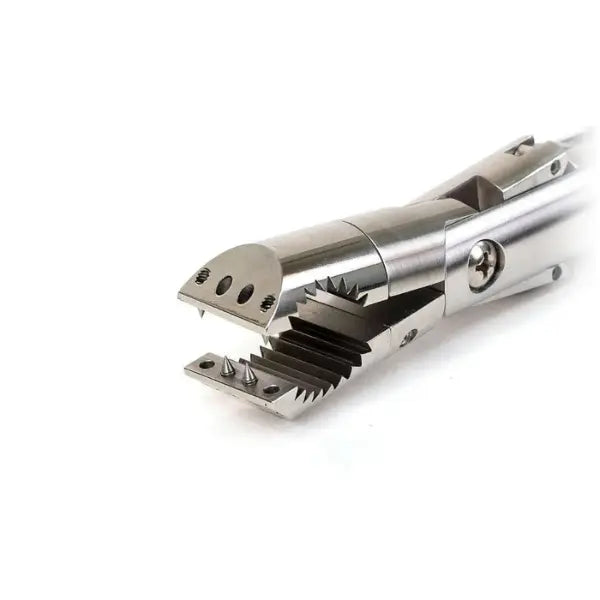

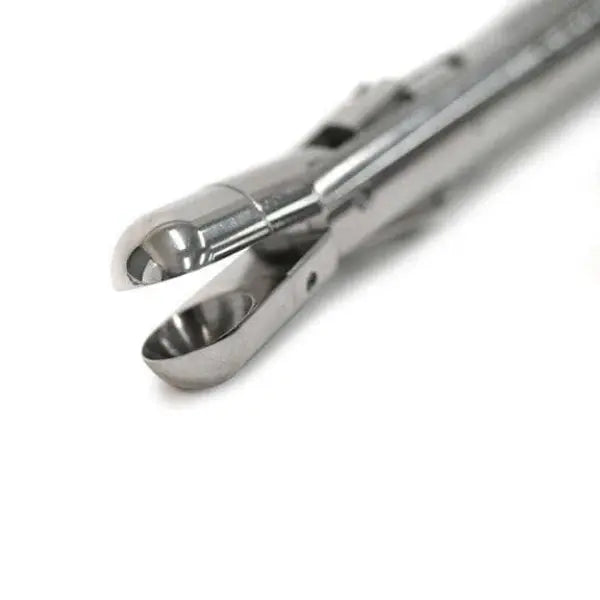

- Set of 4 Jaw Sets: Viper, Pliers, Fork & Tine, Sampling Cup

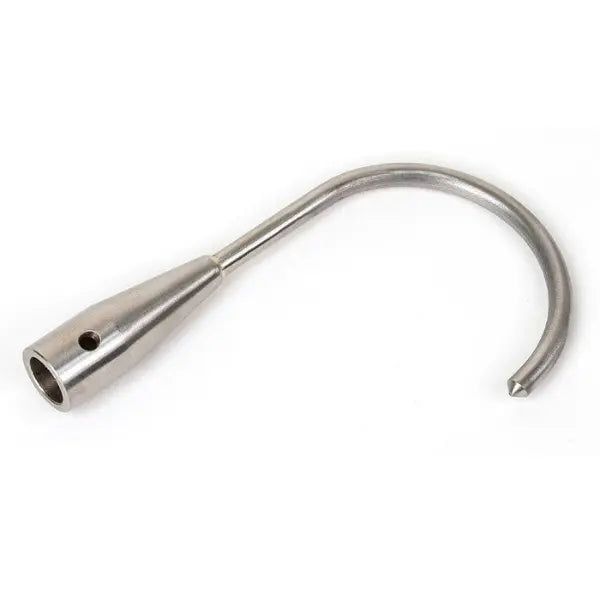

- Set of 2 Hooks

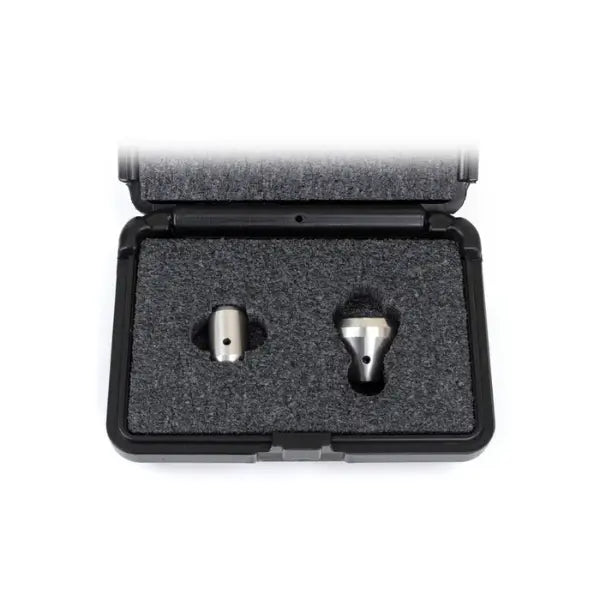

- Set of 2 Magnets: 0.69" and 1.25" in case
- Set of 2 Snares: 1" and 0.8" Push Pole Snares

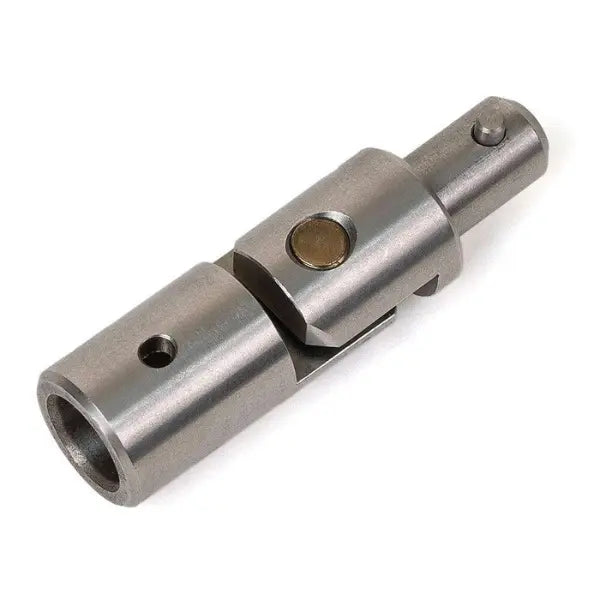

- Adjustable Knuckle Joint

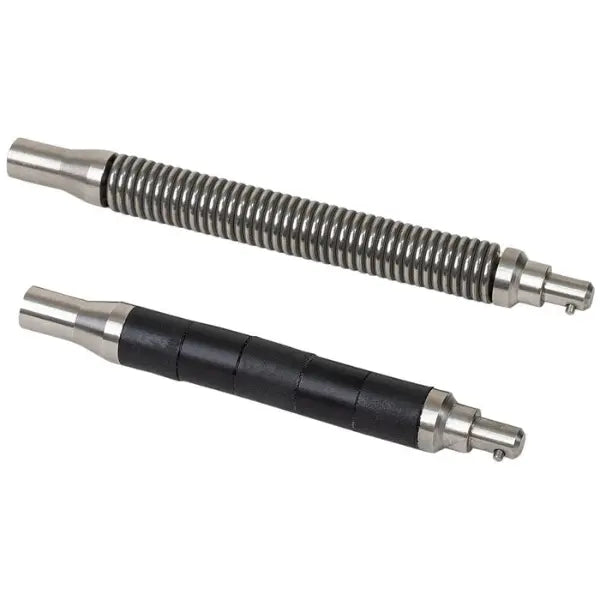

- Coupling Flexible Spring
- Coupling Flexible Push Pole

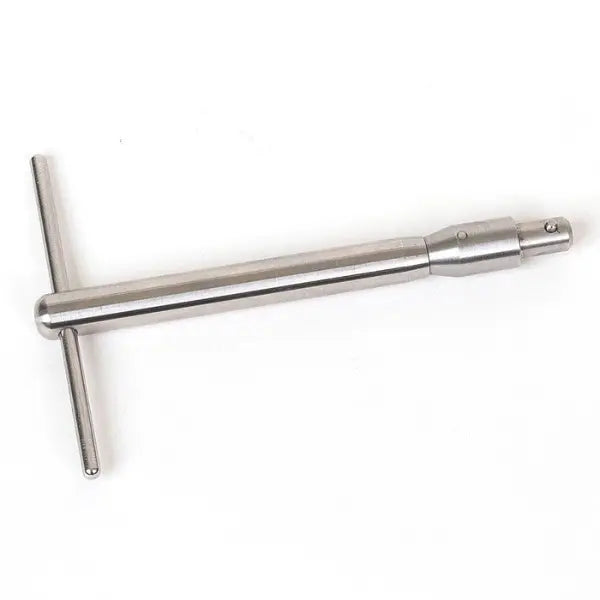

- "T" Style Handle for Push Poles

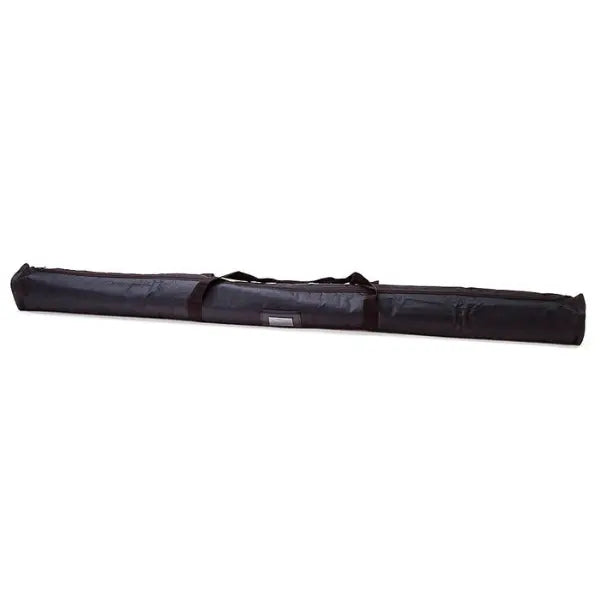

- Push Poles Included in Quiver

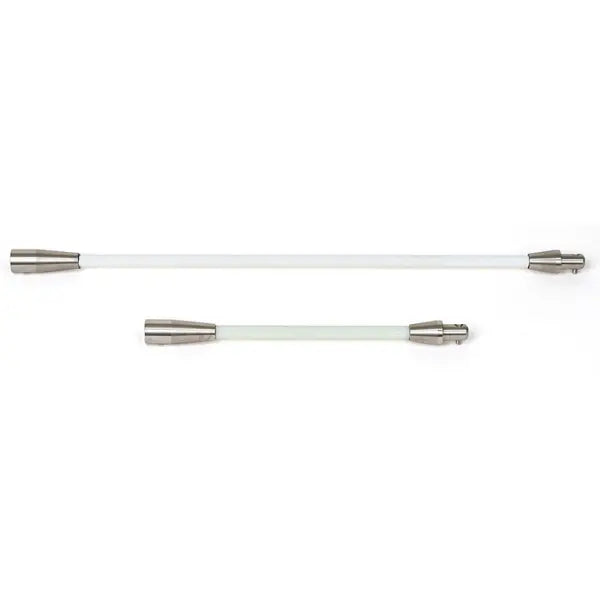

- Quantity of 10: 3/16" Diameter x 5 ft push Pole Section, Light Duty
- Quantity of 10: 5/16" Diameter x 5 ft push Pole Section, Medium/Heavy Duty
- Quantity of 10: 3/8" Diameter x 5 ft push Pole Section, Heavy Duty
Specifications
| RT-750 ElectroMechanical Grabber | ||
|---|---|---|
| Outer Diameter | 0.750" | |
| Material | 300 Stainless Steel | |
| Jaw Sets | Sample Cup, Viper, Plier Jaw and Fork & Tine | |

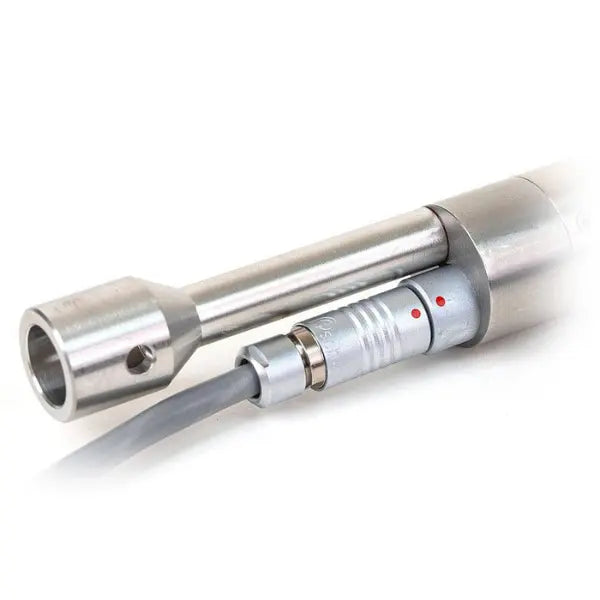

| Mounting Options | Push-pole receptacle / 1/4-20 thread | |
| Closure Force | Greater than 20 lbs at 30 degrees | |
| Waterproof | Rated to 100 FT depth | |
| Cable | 100 ft | |

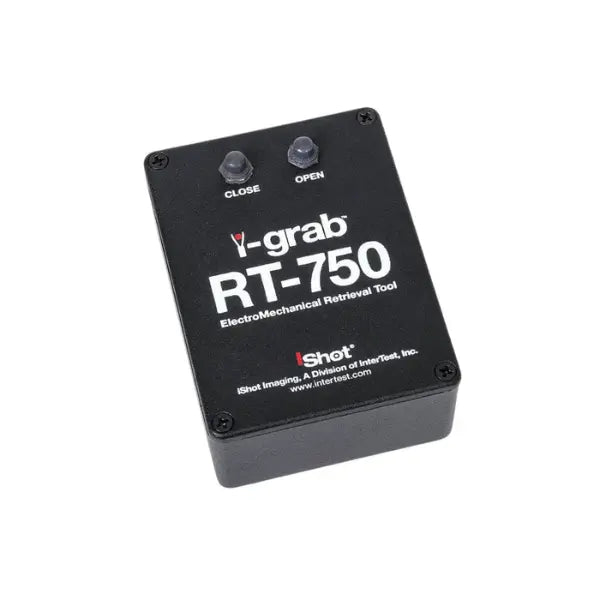

| Control Unit | Requires 8 AA batteries | |
| Non-Motorized Retrieval Tools | each tool has a push pole receptacle | |
| Handle | "T" Style Handle for Push Poles | |
| Fiber Glass Push-Poles | 3/16", 5/16", 3/8" diameter (10 each) | |
| Stainless Steel J-hooks | 1" and 2.4" diameter | |

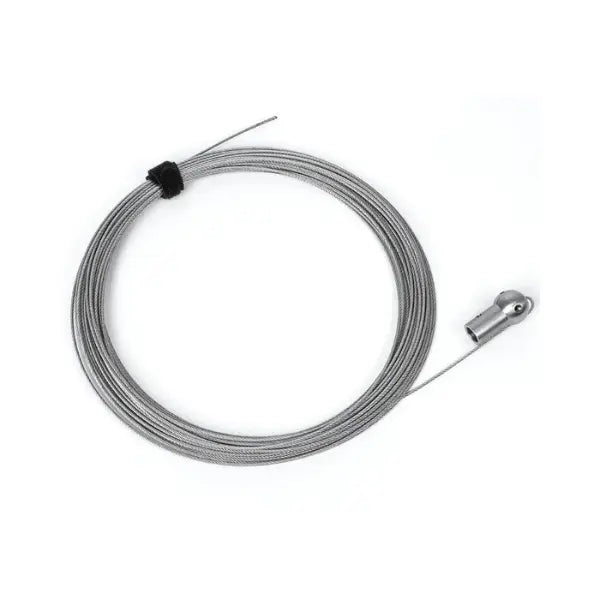

| Large Snare | 1" ball with 3/32" aircraft wire | |
| Small Snare | 0.8" ball with 1/16" aircraft wire | |
| Adjustable Knuckle Joint | Pivots ~270 degrees | |
| Coupling Flexible Spring | High tension adapter | |
| Coupling Flexible Push Pole | Low tension adapter | |
| Shipping Weight Package 1 | 38 lbs | |
| Shipping Dimensions Package 1 | 11" x 11" x 66" | |
| Shipping Weight Package 2 | 18 lbs | |
| Shipping Dimensions Package 2 | 22" x 16" x 6" | |
The feature summary identifies Stainless 303 components; the RT-750 material specification lists 300 Stainless Steel.
Downloads
FAQ
Does the kit include motorized and manual retrieval tools?
Yes. It includes the motorized RT-750 gripper with four jaw sets, plus non-motorized hooks, magnets, and snares.
How many push-pole sections are included?
The kit includes 10 sections in each of three diameters: 3/16", 5/16", and 3/8". Each section is 5 ft long.
What batteries does the control unit require?
The control unit requires 8 AA batteries.
